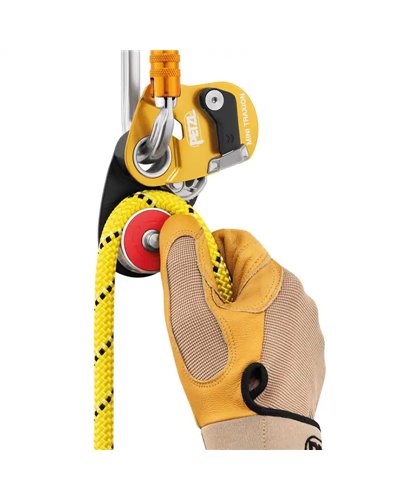

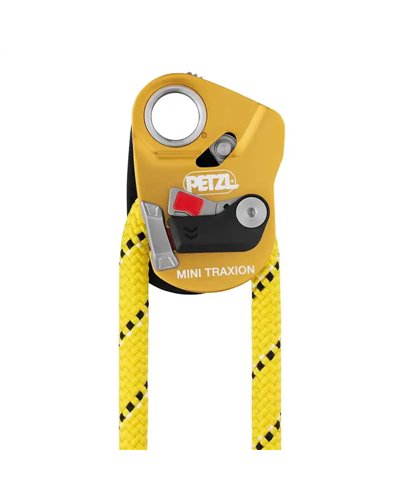

Possible to open, even when attached to the anchor, the MINI TRAXION progress-capture pulley is designed for setting up haul systems. With a medium-diameter sheave and great efficiency, it is particularly suitable for hauling mid-weight loads. Compact, reducing weight and bulk, which is especially useful during technical rescue and rope access work.
Drop-resistant and easy to operate:
- Triple-action opening of the moving side plate is quick and easy, even with gloves
- Rope can be installed when the pulley is connected to the anchor
- Red indicator provides a visual warning when the moving side plate is unlocked
- Special side plate design protects the rope path
Designed for hauling mid-weight loads:
- Mid-size diameter aluminum sheave mounted on sealed ball bearings for great efficiency
Versatile:
- Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
- May be used as a simple pulley by locking the cam in the raised position
- Hole in the cam for installation of a remote control cord
Specifications
Weight: 150 g

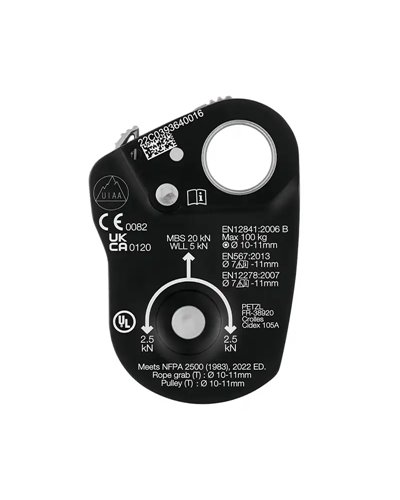

Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA, NFPA 2500 Technical Use Pulley and Rope grab
Material(s): Aluminum, stainless steel, nylon
Min. rope diameter: 7 mm
Max. rope diameter: 11 mm
Sheave type: Sealed ball bearings
Sheave diameter: 32 mm
Breaking strength - pulley: 10 kN x 2 = 20 kN
Breaking strength - rope clamp: 4 kN
Efficiency: 93 %
Data sheet
No customer reviews for the moment.
Alpinists looking for a compact progress-capture pulley
Designed for rescue systems in mountaineering, with a reduced bulk and a weight of 150 g. The 32 mm pulley and sealed ball bearings help when lifting intermediate loads.
Those working on rope who need fast handling
Suitable for anyone needing practical rope handling, even when wearing gloves. The triple-action opening of the moving side plate and the red visual indicator simplify control during use.
Men and women looking for a lightweight, certified device
Suitable for technical rope use, with CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA and NFPA 2500 Technical Use Pulley and Rope grab certifications. The materials are aluminium, stainless steel and polyamide.
Ideal
Intermediate load hauling in mountaineering
The 32 mm pulley and 93% efficiency make it suitable for lifting intermediate loads. It is designed for installing rescue systems.
Puleggia 32 mm · Rendimento 93% · Carichi intermedi · Alpinismo
Very suitable
Technical use with rope between 7 and 11 mm
It is compatible with ropes from 7 to 11 mm. The toothed rope clamp with dirt-cleaning groove helps operation in difficult conditions.
Corda 7-11 mm · Fermacorda dentellato · Polivalenza d'uso · Uso tecnico
Very suitable
Installation on the anchor
It can also be opened when positioned on the anchor. This makes rope installation easier in systems already set up.
Apertura sulla sedia · Ancoraggio · Installazione rapida
Suitable
Use with gloves and visual check

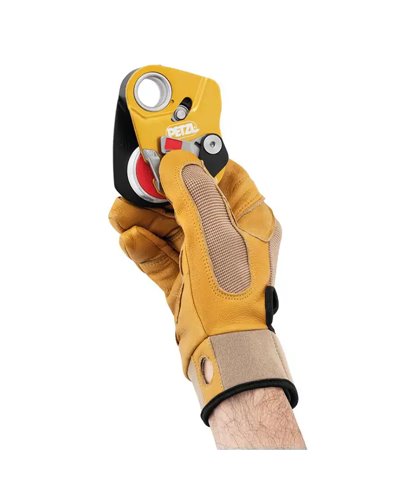

The triple-action opening of the moving side plate is quick and easy even with gloves. The red indicator shows when the moving side plate is not locked.
Guanti · Indicatore rosso · Flangia mobile
Technical mountaineer
Rope access operator
The Petzl Mini Traxion weighs 150 g. This indicates a compact size for technical rope use.
It is compatible with ropes from 7 to 11 mm. This makes it suitable for rescue systems using technical ropes within that range.
The pulley has a diameter of 32 mm. This medium diameter is suitable for lifting intermediate loads.
It has CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA and NFPA 2500 Technical Use Pulley and Rope grab certifications. These are useful references for the technical use of the product.
It is made of aluminium, stainless steel and polyamide. These materials are listed in the technical data sheet.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
