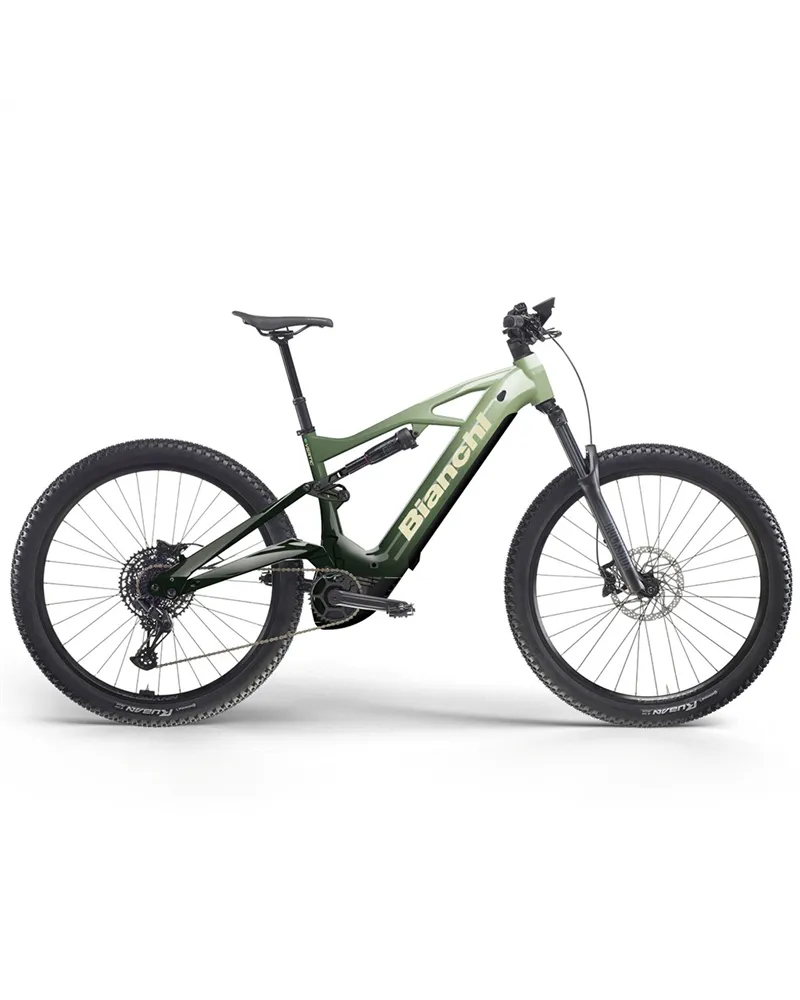

Bianchi e-Vertic FX-Type SE Shimano Deore XT 12sp - Bosch CX 800Wh, F3 Green/Black Decals Mat MY26
Bianchi e-Vertic FX-Type SE Shimano Deore XT 12sp - Bosch CX 800Wh, F3 Green/Black Decals Mat MY26
Bianchi e-Vertic FX-Type SE Shimano Deore XT 12sp - Bosch CX 800Wh, F3 Green/Black Decals Mat MY26
YVB1DIMDF3
€4,990.00
€3,992.00
Save 20%
VAT included
You save €998.00 (20%) on the manufacturer's recommended price
Price history
- Today's price
- €3,992.00
- Lowest price of the last 30 days
- €3,992.00
- Manufacturer's recommended price
- €4,990.00 (20% less)
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.
Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECH SPECS
MOTOR UNIT
MOTOR: Bosch CX, 100Nm
BATTERY: Bosch Powertube 800 Wh
FRAMESET
FRAME: Bianchi e-Vertic FX, aluminium, 12x148 mm rear thru axle, Post mount 180 disc brake type, Front travel 150 mm, Rear travel 140 mm, Internal cable routing in steerer, 800 Wh battery compatible, sizes 40-44-48-53
FORK: RockShox Lyrik 29", 150 mm travel, Steerer tube 1,5" tapered, 35 mm stanchions, Maxle Stealth 15x110 Boost axle, Rotor: minimum 180 mm, maximum 220 mm, 44 mm rake
REAR SHOCK: RockShox Deluxe Select, 210/55 mm, Debonair Progressive, Damper Type R, Compression tune L, External rebound adjustment
HEADSET: FSA 1.5" for tapered fork steerer, Dual side internal cable routing, Head Block system
DRIVETRAIN
SHIFTERS: Sram GX AXS Eagle
REAR DERAILLEUR: Shimano Deore XT, RD-M8100, 12sp
CRANKSET: FSA CK-745, 165mm
BOTTOM BRACKET: Included in the drive unit
CHAIN: Shimano CN-M6100
CASSETTE: Shimano Deore, CS-M6100, 10-51T, 10-12-14-16-18-21-24-28-33-39-45-51T
BRAKES
BRAKES: Sram DB4, 4 pistons calipers, mineral oil
BRAKE LEVERS: Sram DB4
ROTOR: Sram Centerline, Center Lock, 200mm
WHEELS
WHEELS: Velomann 622x30, 32 hole; Front hub: Shimano HB-TC500; Rear hub: Shimano FH-MT510
TIRE: Pirelli Scorpion 29x2.6 Enduro M Front E-MTB R Rear, 60TPI
COCKPIT
STEM: FSA Comet ST-OS-173, Diameter 28.6 mm, Barbore 35 mm Size: 50 mm
HANDLEBAR: FSA Comet HB-XC-302L, Rise 15 mm, Diameter 35 mm, Width 800 mm
GRIPS / EXTENSIONS: Herrmans Luna lock 130 mm
SADDLE
SEATPOST: Velomann Diameter 31.6mm, internal cable routing length: 100 mm - SM, 125 mm - MD, 150 mm - LG/XL
SADDLE: Velomann GND 262x145
ACCESSORIES
PEDALS: VP Flat with reflectors
YVB1DIMDF3
Data sheet
- Diameter
- 29"
- Gender
- Men
Women - Material
- Aluminium
- Code
- BNCH26-LIST0426-STK221026
- Shifting
- Mechanical
- Brakes
- Hydraulic disc
- Groupset
- Shimano XT
- Motor
- Bosch Performance Line CX
- Suspension
- Full suspension
- Type
- E-Bike
- Battery capacity
- 800 Wh
No customer reviews for the moment.
Related Products ( 16 other products in the same category )
- -10%
- -28.89%
- -10%
- -20%
- -20%
- -19.42%
- -20%
- -26.34%
- -19.43%
- -10%
- -10%
- -14.99%
- Out-of-Stock
- -18%
- -16.24%
- Out-of-Stock
- -32%
- Out-of-Stock
Who it is for and how to use it
Ideal for
Trail and all-mountain e-bike
Designed for riders seeking an aluminium electric mountain bike with a Bosch CX 100 Nm motor and full suspension with 150 mm at the front and 140 mm at the rear. It performs well on demanding terrain.
Cyclists wanting control on steep climbs and technical descents
Suitable for riders who want high assistance, 12v shifting and 4-piston brakes to handle technical sections and rough surfaces with greater control margin.
Those looking for an e-MTB with broad range
Suitable for riders who want a Bosch Powertube 800 Wh battery and a setup designed for long rides on demanding routes.
Use cases
Ideal
Technical and steep climbs
The Bosch CX 100 Nm motor supports climbing power, while the Shimano Deore XT 12v drivetrain provides a wide gear range.
Bosch CX 100 Nm · Shimano Deore XT 12v · Salita tecnica
Ideal
Singletrack and demanding descents
The 150 mm front and 140 mm rear suspension and the Sram DB4 4-piston brakes provide support on rough sections.
150 mm anteriore · 140 mm posteriore · Freni a 4 pistoni
Very suitable
Long rides on demanding terrain
The Bosch Powertube 800 Wh battery and the aluminium frame are suited to extended use on tough routes.
Bosch Powertube 800 Wh · Telaio in alluminio · Terreni impegnativi
Who it is for
Experienced e-MTB rider
- Looks for
- Searches for an electric mountain bike with a powerful motor, full suspension and components focused on control.
- Why
- The Bianchi e-Vertic FX-Type SE combines Bosch CX, Shimano Deore XT and 4-piston brakes for technical use on demanding terrain.
Sporty rider tackling demanding routes
- Looks for
- Searches for a robust e-bike for climbs, descents and long rides.
- Why
- The aluminium frame, 800 Wh battery and 150/140 mm suspension support use on trails and rough routes.
Frequently asked questions
What motor is fitted to this e-MTB?
It is fitted with a Bosch CX 100 Nm motor. This is suitable for technical use on climbs and demanding terrain.
What battery is fitted?
It is fitted with a Bosch Powertube 800 Wh battery. The capacity is suitable for long rides on demanding routes.
What type of suspension does it have?
It has full suspension with 150 mm at the front and 140 mm at the rear. This setup promotes control on trails and rough sections.
Which drivetrain does it use?
It uses Shimano Deore XT, RD-M8100, 12v. The transmission is designed for precise shifting in electric mountain bike use.
Which brakes are fitted?
It is fitted with Sram DB4 with 4-piston calipers and mineral oil. This setup is suitable for control on descents.
Show all (6)
Which frame sizes are available?
The frame sizes are 40-44-48-53. Selection should be checked according to the frame geometry.
