Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly. We advise you to refer to the technical sheet below. For any questions please contact us.

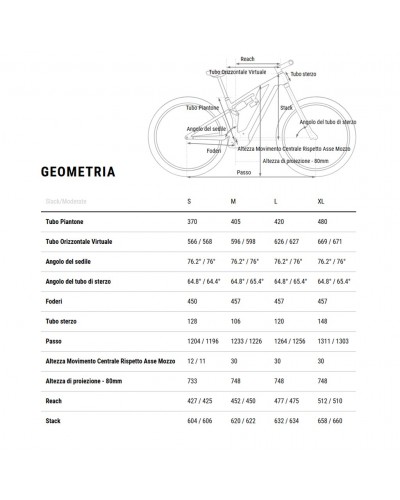

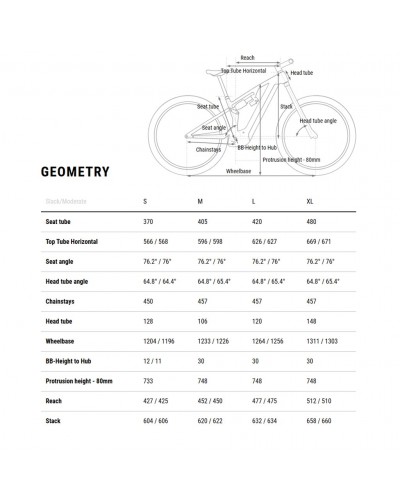

Frame geometry on the attached sheet.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

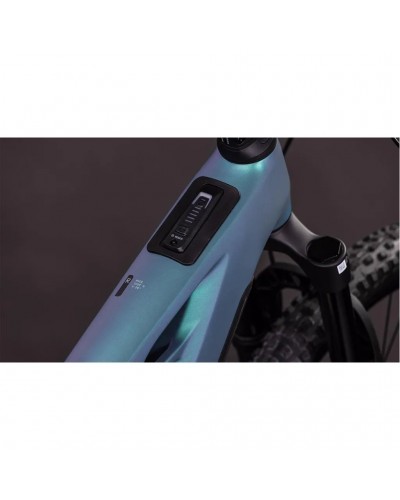

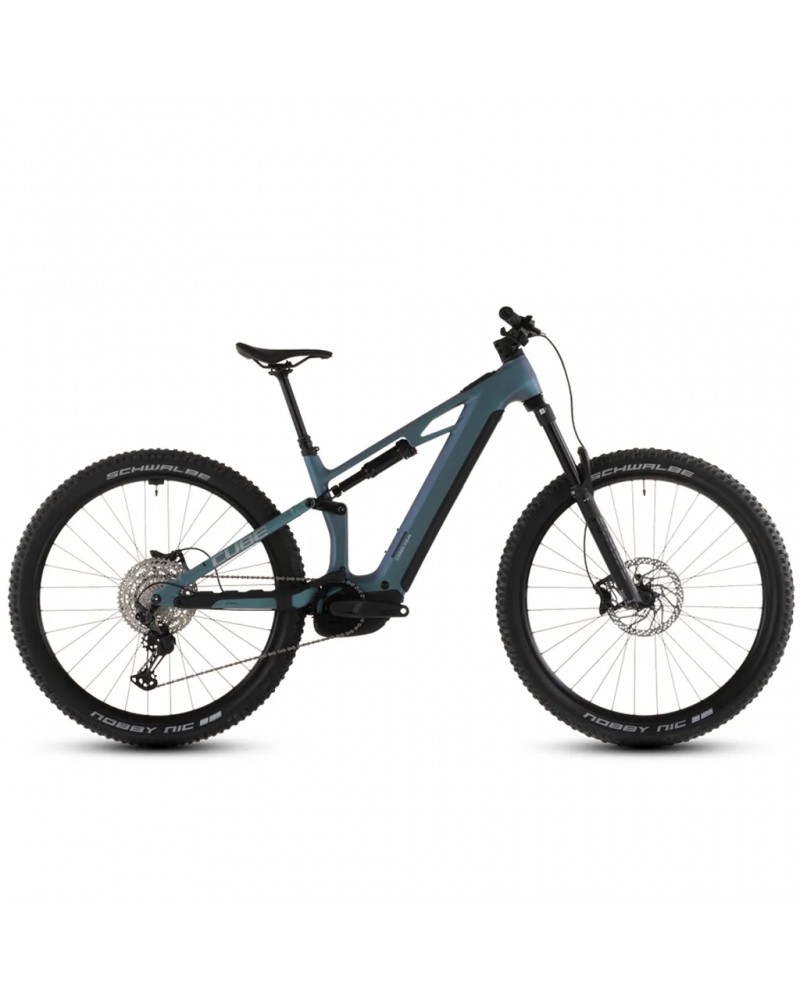

A great bike is all about the detail, and the Stereo Hybrid ONE44 HPC's frame is chock-full of clever details. You'll notice the Internal Cable Routing because it so neatly complements the High Performance Carbon main triangle's clean lines, while the angle-adjustable headset means you can tailor the handling to your specific requirements. A Direct Mount chain guard keeps the gears on the straight and narrow, and the neatly integrated Bosch top tube controller plus Purion 400 display show you what's going on with the powerful Bosch CX drive and 800Wh PowerTube battery at a glance. With a 150mm fork and 140mm of rear-wheel travel, it's ready to take on the toughest of trails. The UDH dropout means it's future-proof, too. And, with Size Split, there's a wide range of sizes to suit most riders.
TECH SPECS
Frame
Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension

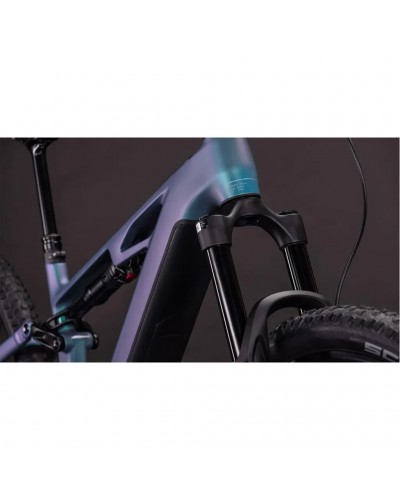

Suspension fork: Fox 36 Float AWL HD Sport RAIL 2.0 R, Tapered, 15x110mm, E-Bike Optimized, 150mm

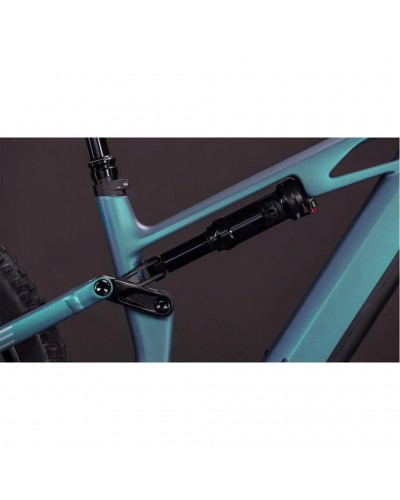

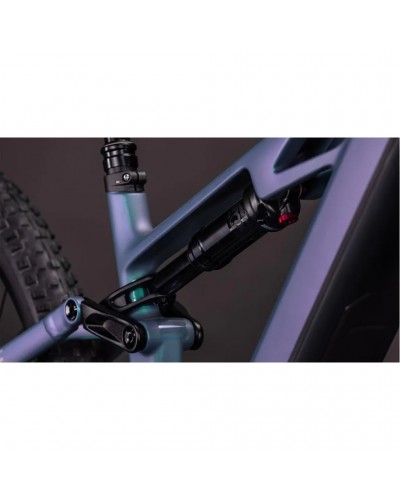

Shock: Fox Float Rhythm R, 230x60mm (27.5: 210x55mm), Adjustable LSR
Shock hardware: Front: 30x8mm, Rear: DU-Bushing 12.7mm
E-bike system
Drive unit: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
Remote: Bosch System Control, incl. Mini Remote
Battery: Bosch PowerTube 800
Display: Bosch Purion 400
Charger: Bosch 2A
Drivetrain & brakes
Brake system: Shimano BR-MT420, Hydr. Disc Brake (203/203)
Rear derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus

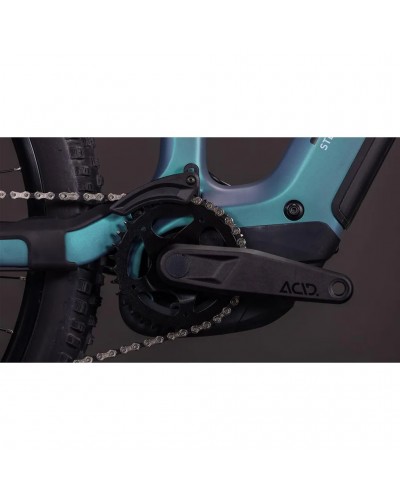

Crankset: ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
Chain guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: CUBE Rise Trail Bar 35
Grips: ACID Disrupt
Wheels
Wheelset: ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tyres: Schwalbe Nobby Nic, Performance, 2.6
Finishing kit
Saddle: ACID Venec EMTB Trail 140
Seat post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Pedals: ACID PP MTB
Product information
Colour: driedherbs´n´black
Weight: 23,6 kg
Art. No: 102370
Bike category of use: 4
Maximum rider weight: 125 kg
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body
Data sheet
