Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly. We advise you to refer to the technical sheet below. For any questions please contact us.

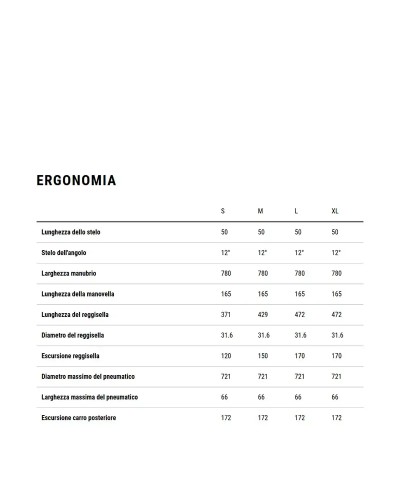

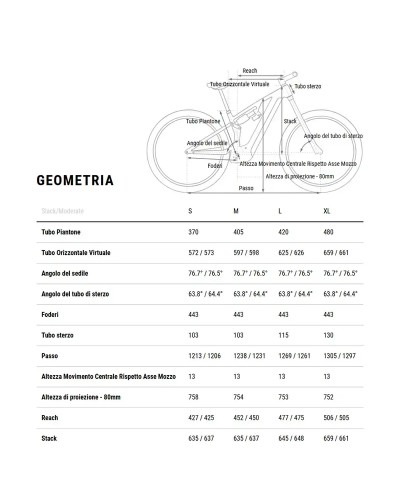

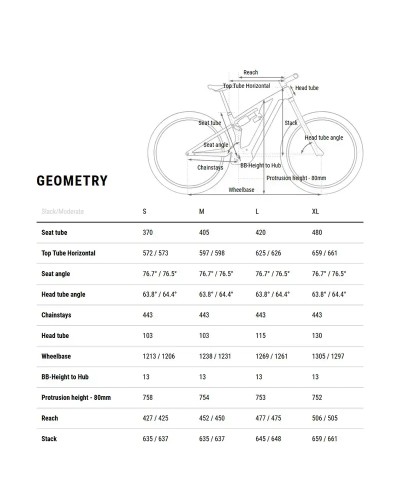

Frame geometry on the attached sheet.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

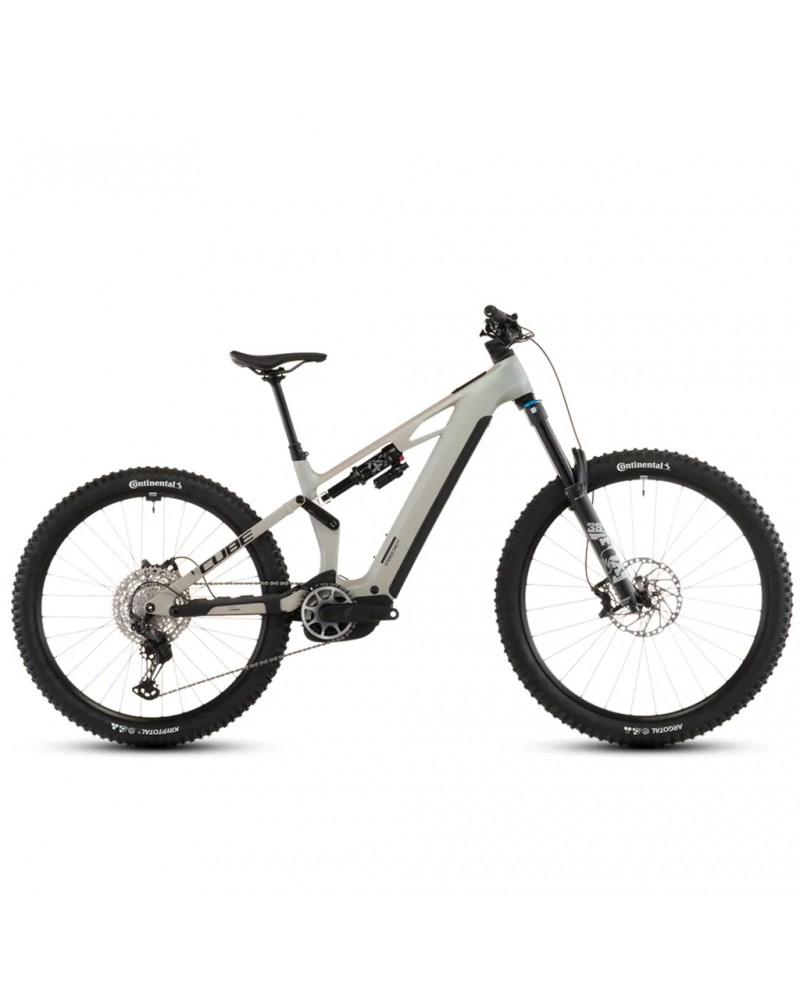

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
TECH SPECS
Frame
Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension

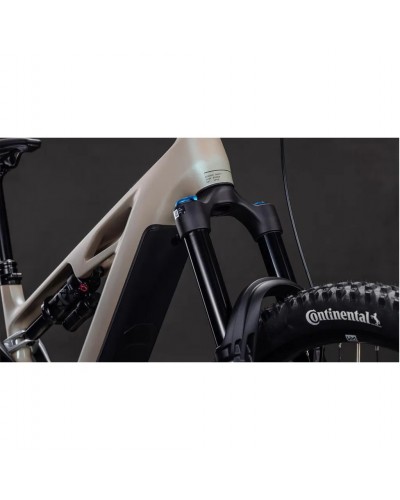

Suspension fork: Fox 38 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm

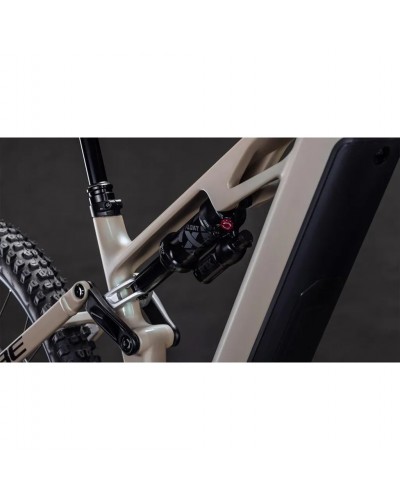

Shock: Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever
Shock hardware: Front: 30x8mm, Rear: DU-Bushing 12.7mm
E-bike system
Drive unit: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
Remote: Bosch Mini Remote
Battery: Bosch PowerTube 800

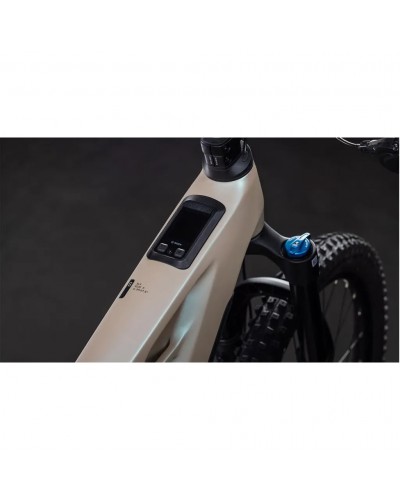

Display: Bosch Kiox 400C
Charger: Bosch 4A
Drivetrain & brakes
Brake system: Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
Rear derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano Deore SL-M6100, Rapidfire-Plus

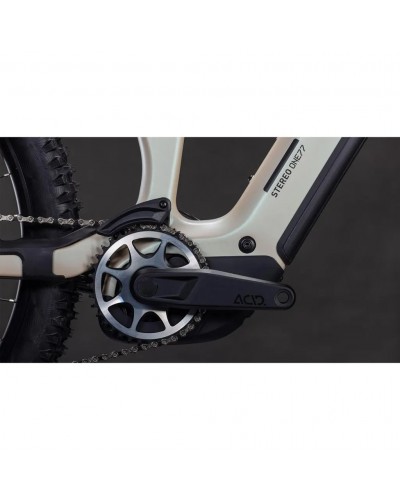

Crankset: ACID MTB Hybrid Pro, 36T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
Chain guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: CUBE Rise Trail Bar 35
Grips: ACID Disrupt, Soft Compound
Wheels
Wheelset: Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Front tyre: Conti Argotal, Enduro Soft, Tubeless Ready, 2.4
Rear tyre: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
Finishing kit
Saddle: ACID Venec EMTB Trail 140
Seat post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Pedals: ACID PP MTB
Product information
Colour: blackline
Weight: 24,7 kg
Art. No: 103300
More Information
Bike category of use: 4
Maximum rider weight: 125 kg
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.
Data sheet
No customer reviews for the moment.
e-MTB rider on demanding trails
Designed for those looking for an e-MTB for demanding mountain trails, with Full suspension, Bosch Drive Unit Performance Line CX max. 100 Nm (BDU38) and an 800 Wh battery.
Rider wanting a carbon frame with aluminium rear triangle
Suitable for those seeking a C:62® Monocoque Advanced Twin Mold Technology frame with Aluminium 6061 T6 Rear Triangle, for a stiff bike designed for trail use.
Rider prioritising grip and control downhill
Suitable for those looking for 27.5"/29" wheels, Shimano XT BR-M8220 brakes and a Full set-up to handle demanding trails with greater control.
Ideal
Technical, long mountain trails
The combination of the Bosch Drive Unit Performance Line CX max. 100 Nm (BDU38) motor, 800 Wh battery and Full suspension is suitable for demanding, extended routes.
Bosch CX · 800 Wh · Sospensioni Full · Trail di montagna
Very suitable
Descending and aggressive riding on rough terrain
The Shimano XT BR-M8220 brakes with 203/203 disc and the 27.5"/29" wheels help maintain control and modulation on the most technical sections.
Freni a disco · Shimano XT · Ruote mullet · Trail tecnici
Very suitable
e-MTB outings with continuous support
The Shimano XT 12-Speed groupset and the Bosch PowerTube 800 battery support long rides with clean drivetrain management.
Shimano XT 12-Speed · Bosch PowerTube 800 · e-MTB · Trasmissione 12 velocità
Suitable
Customisable front-end set-up
The headset with angle adjustment allows the riding position to be adapted to personal preferences on demanding trails.
Serie sterzo regolabile · Assetto personalizzato · Trail impegnativi
Experienced e-MTB rider
Sport rider looking for a complete trail bike
It is equipped with a Bosch Drive Unit Performance Line CX max. 100 Nm (BDU38). In practical use, it offers support suited to demanding mountain trails.
The battery is a Bosch PowerTube 800 with 800 Wh. This helps on long rides over demanding trails.
The bike has Full suspension. It is a choice that matches use on demanding trails.
It is fitted with Shimano XT 12-Speed. It is a transmission suited to technical e-MTB use.
It is fitted with Shimano XT BR-M8220, Hydr. Disc Brake (203/203). In practice, it delivers braking suited to technical and demanding routes.
The declared weight is 24,7 kg. The figure should be considered in the specified configuration shown on the product sheet.
