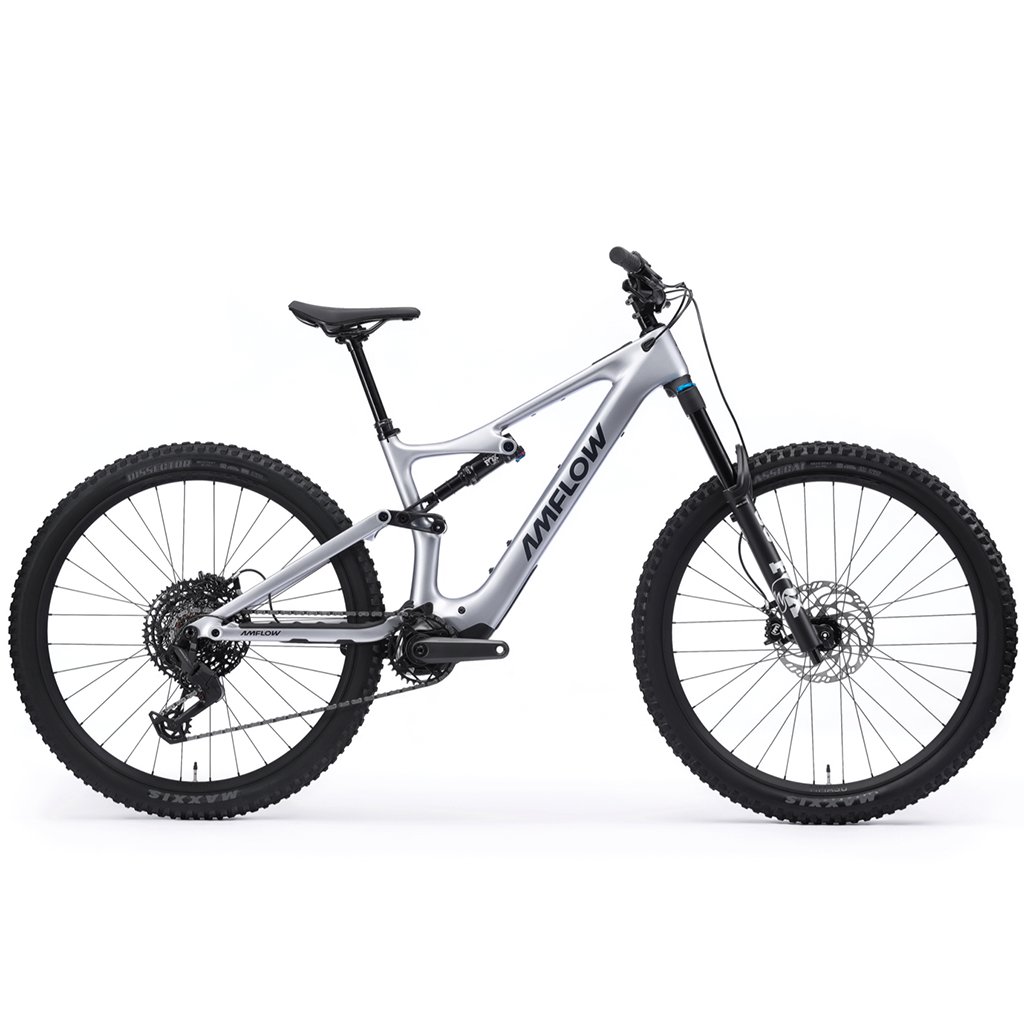

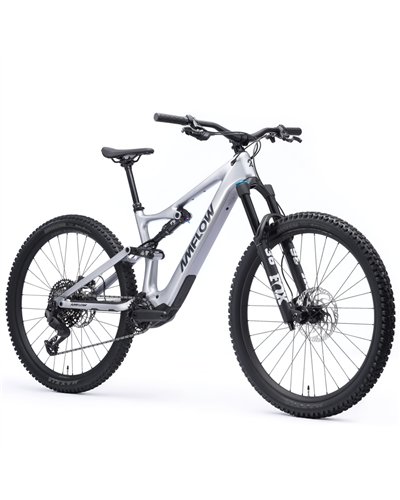

Amflow PL Carbon Mullet 27.5/29 Sram Eagle 70 12sp Avinox M1 - 800Wh e-Bike, Satin Silver
Amflow PL Carbon Mullet 27.5/29 Sram Eagle 70 12sp Avinox M1 - 800Wh e-Bike, Satin Silver
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

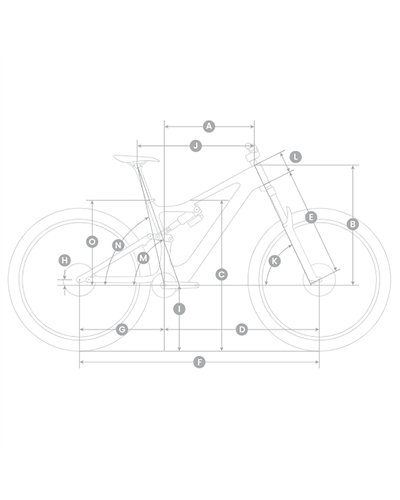

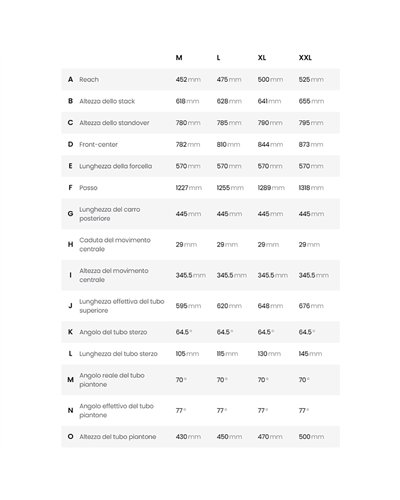

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame
Amflow PL Carbon Frame
150 mm rear travel
Compatible with 27.5" and 29" rear wheels
E-Bike System
Avinox M1 Motor Unit: 105 N m
Avinox Display: 2-inch OLED control display
Avinox Integrated Battery: 800 Wh
Avinox Wireless Controls: Left and Right
Avinox Quick Charger: 12A/508W
Fork
026 FOX 36 Performance
160 mm travel, GRIP shock, 15x110 mm, 44 mm offset
Rear Shock
2026 FOX Float Performance
Trunnion (185x55 mm), custom fit, EVOL air sleeve, two-position lever
Drivetrain
Rear Derailleur: SRAM Eagle 70 derailleur Transmission
Chainring: SRAM Eagle Transmission 104BCD 34T E-MTB chainring
Shifters: SRAM Eagle 70 Transmission | Single Click
Cassette: SRAM XS-1270 Eagle Transmission 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Cranks: Avinox SL Crank (M/L: 155 mm; XL/XXL: 160 mm)
Brakes
Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper with Shiftmix 3, 203 mm MDR-C rotor (front and rear)
Wheels
Amflow HMA-30
Rims: Alloy, 29" 30mm internal width, 32-hole, Tubeless Ready
Spokes: SAPIM E-Light J-bend
Front Hub: Alloy, 2 sealed cartridge bearings, 15x110mm thru-axle, 32-hole, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12mm thru-axle, 32-hole, 6-bolt, 21T
Tires
Front: Maxxis Assegai MaxxTerra 29x2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29x2.4" WT 3C EXO+ E-25 TLR
Handlebar
Amflow Enduro alloy handlebar
Height 35mm, width 800 mm
5-degree upsweep, 9-degree backsweep
Stem
Amflow Enduro stem, one-piece CNC
Length: 35 mm
Clamping diameter: 35 mm
Saddle
Selle Royal SRX Plus
Seatpost
KS Rage-i
M: 150 mm
L: 170 mm
XL/XXL: 190 mm
Accessories
Quick Start Guide
Torque wrench (3-25 N m, Allen key 2/3/4/5/6 mm, Torx® 25)
Suspension pump
Front and rear lights
Data sheet
