Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly. We advise you to refer to the technical sheet below. For any questions please contact us.

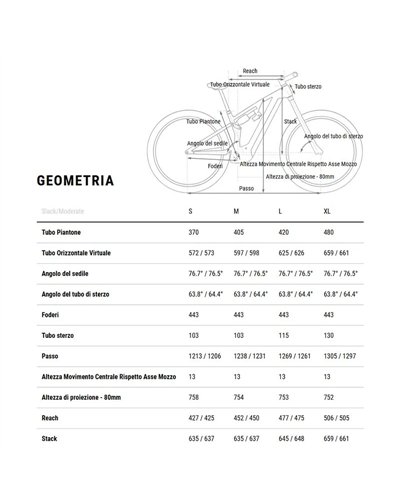

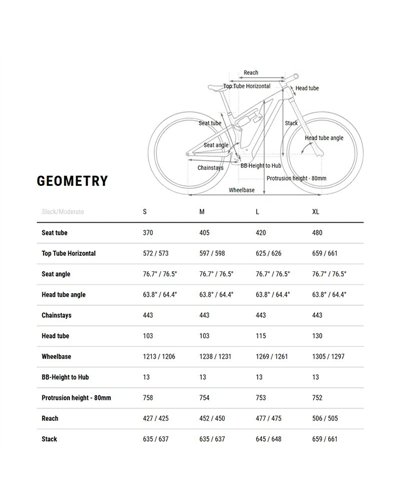

Frame geometry on the attached sheet.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

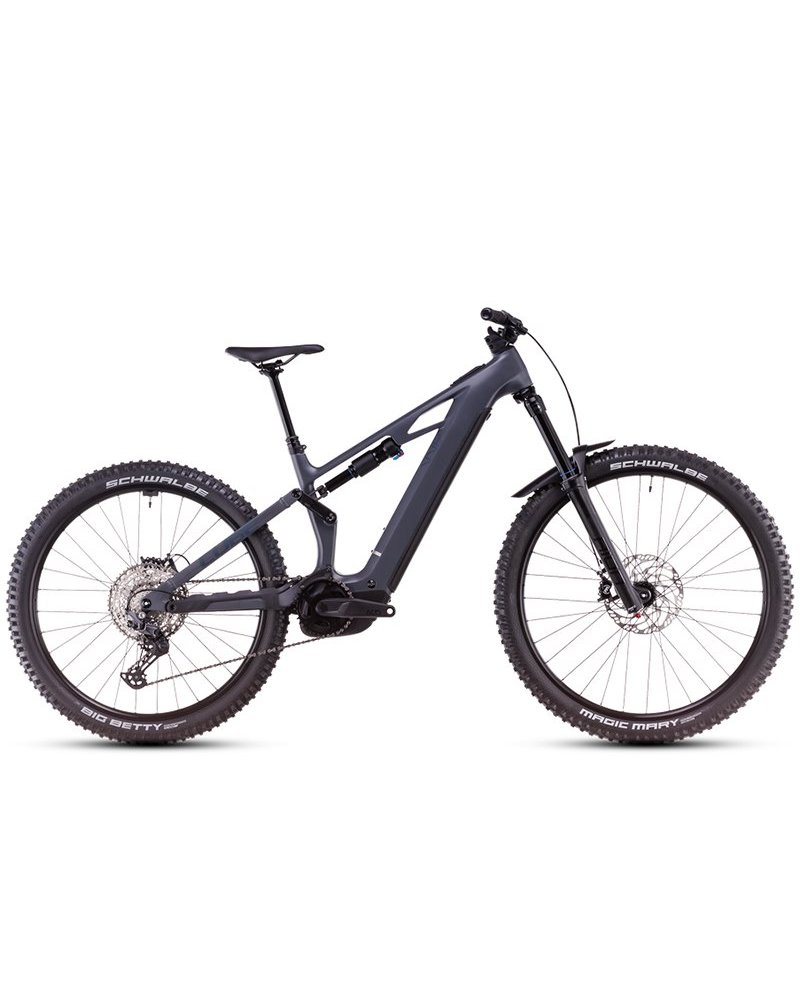

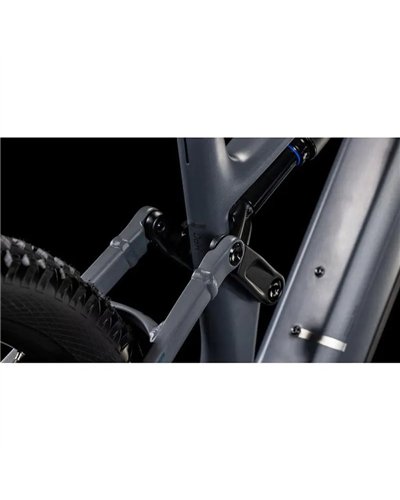

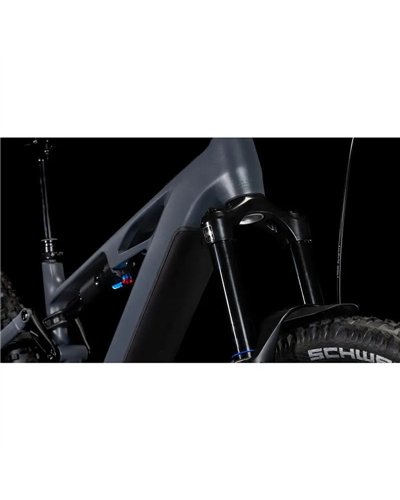

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks and reduced maintenance, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800 Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough.
TECH SPECS
Frame
Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Size: S, M, L, XL
Suspension
Suspension fork: SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm

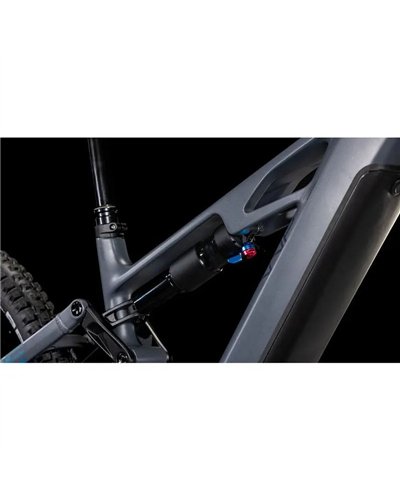

Shock: SR Suntour Edge EVO 2CR 230x65mm
Shock hardware: Front: 30x8mm, Rear: DU-Bushing 12,7mm
E-bike system
Drive unit: Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System

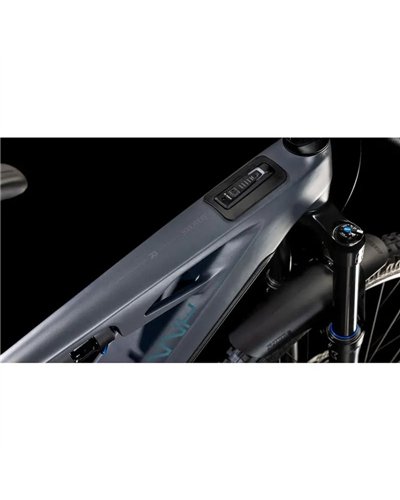

Remote: Bosch System Control, incl. Mini Remote
Battery: Bosch PowerTube 800
Charger: Bosch 2A
Drivetrain & brakes
Brake system: Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Rear derailleur: Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano Deore SL-M6100, Rapidfire-Plus
Crankset: ACID MTB Hybrid Pro, 36T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
Chain guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: CUBE Rise Trail Bar 35
Grips: ACID Disrupt, Soft Compound
Wheels
Rims: CUBE EX30, 32H, Disc, Tubeless Ready
Front hub: CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt
Rear hub: CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt
Front tyre: Schwalbe Magic Mary, Performance, 2.4
Rear tyre: Schwalbe Big Betty, Performance, 2.4
Finishing kit
Saddle: ACID Venec Lite
Seat post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Product information
Weight: 25,2 kg
More Information
Bike category of use: 4
Maximum rider weight: 120 kg
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.
Data sheet
No customer reviews for the moment.
Long rides on demanding mountain trails
Designed for riders looking for an e-MTB for long outings on demanding mountain trails, with a stable setup and high range. The configuration with Bosch Drive Unit Performance Line CX 85 Nm (BDU38), Smart System and 800 Wh battery supports climbs and technical sections.
Riders wanting a carbon frame with aluminium rear end
Suitable for those looking for a C:62® Monocoque Advanced Twin Mold Technology frame with Aluminium 6061 T6 Rear Triangle rear triangle. The structure combines stiffness with precise bike handling through the most demanding sections.
Those wanting a full-suspension e-MTB with mullet wheels
Suitable for riders who prefer a 29"/27,5" setup with 170 mm full suspension. This arrangement helps read the terrain better and maintain control on rougher trails.
Ideal
Climbs and descents on technical mountain trails
The combination of Bosch Drive Unit Performance Line CX 85 Nm (BDU38), Smart System, 170 mm suspension and Magura MT Thirty brakes with 203/203 discs makes it highly suitable for demanding trails.
Motore Bosch CX · Sospensioni 170 mm · Freni a disco idraulico
Ideal
Long rides with significant elevation gain
The Bosch PowerTube 800 battery provides a technical basis suited to extended outings. The 25,2 kg weight remains consistent with an e-MTB designed for enduro trail use.
Batteria 800 Wh · Peso 25,2 kg · e-MTB
Very suitable
Precise riding on mixed and rough terrain
The 29"/27,5" wheels and frame with Agile Trail Geometry help with handling on mixed terrain. The headset with adjustable angle adds scope for adapting the ride.
Ruote 29"/27,5" · Agile Trail Geometry · Serie sterzo regolabile
Suitable
Sport riding with a race-style trail setup
The Shimano Deore 12-Speed groupset and the SR Suntour Aion 38X 2CR Air fork with 170 mm travel provide a solid base for intensive sporting use. The setup remains focused on control rather than outright lightness.
Shimano Deore 12-Speed · Forcella 170 mm · e-MTB
Experienced e-MTB rider
Sport rider wanting a full suspension bike for long outings
It uses a Bosch Drive Unit Performance Line CX 85 Nm (BDU38), Smart System. It is a unit designed to provide strong support on technical climbs and trail use.
It uses a Bosch PowerTube 800 with 800 Wh. This capacity is suitable for long rides on demanding routes.
It has 170 mm suspension. The setup is suitable for demanding mountain trails and for safer riding on technical terrain.
It uses a Shimano Deore 12-Speed, with Shimano Deore RD-M6100-SGS rear derailleur and Shimano Deore CS-M6100 cassette, 10-51T. The gearing is designed for e-MTB use on varied terrain.
It uses Magura MT Thirty with hydraulic system and 203/203 discs. The configuration is suitable for controlling the bike on the most demanding descents.
The bike uses a 29"/27,5" configuration. This combination is consistent with technical trail riding and with seeking agility at the rear end.
Frame sizes are S, M, L, XL. The choice should be made based on the rider's measurements and the geometry shown on the product sheet.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
