A brand new rim profile has been engineered for this new version. Now featuring a wider central channel, installing even the strongest and most rigid tyres has never been so easy.
A brand new rim profile has been engineered for this new version. Now featuring a wider central channel, installing even the strongest and most rigid tyres has never been so easy.
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
KEY BENEFITS
Strong and durable
Welded rim with Pinch Flat Protection (PFP) for less risk of flat
Super strong rim profile
New Infinity hub design specifically made for the rigor of E-MTB riding
Made to handle the extra power and torque of E-Bike motor
28 bladed reinforced spokes
Proven reliability of ID360 double ratchet freewheel system
Maximum load supported byt the wheel : 180kg
Steel freewheel body for improved resistance
Improved tubeless compatibility
Wider rim central channel to ease installation of reinforced tyres
Tubeless rim profile with tubeless tape makes it easy to ride tubeless tires for more traction and less risk of flat

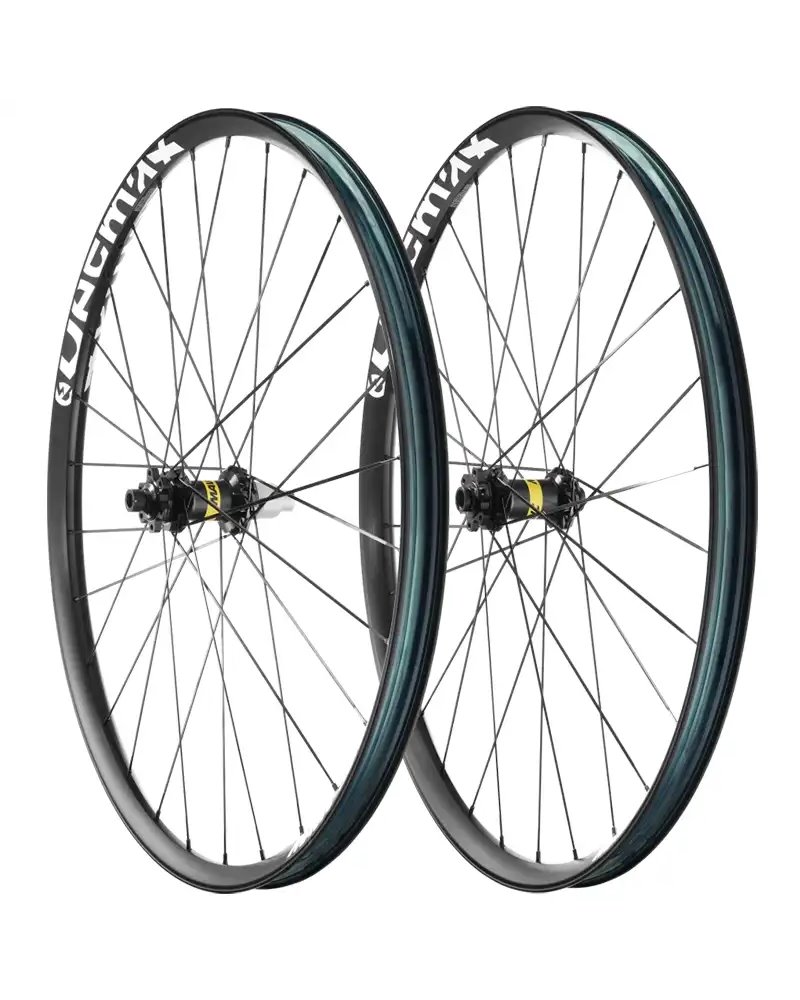

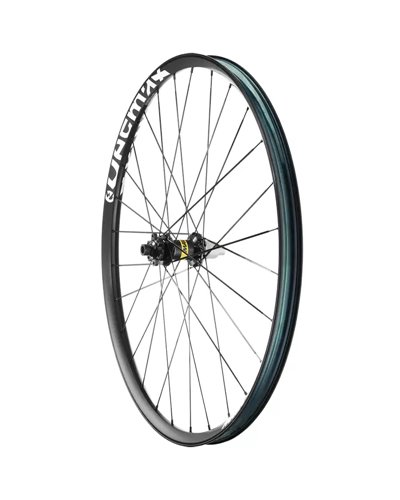

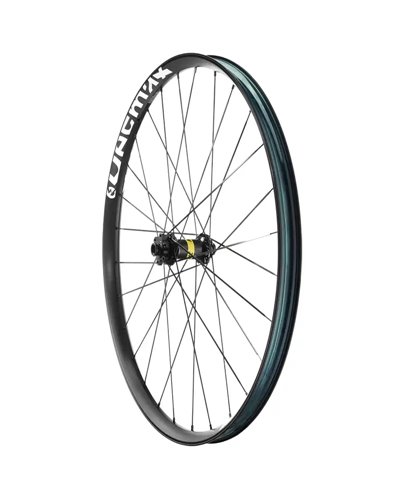

The name E-Deemax has become a reference for E-Bike riders. This new E-Deemax lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price.

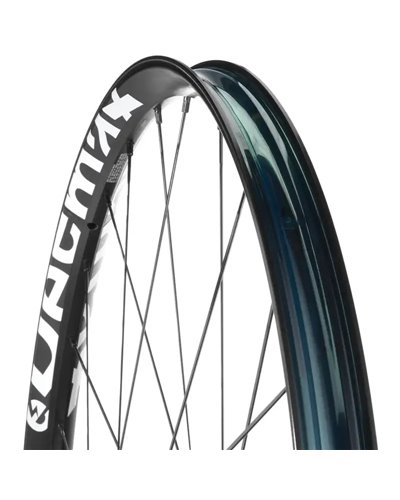

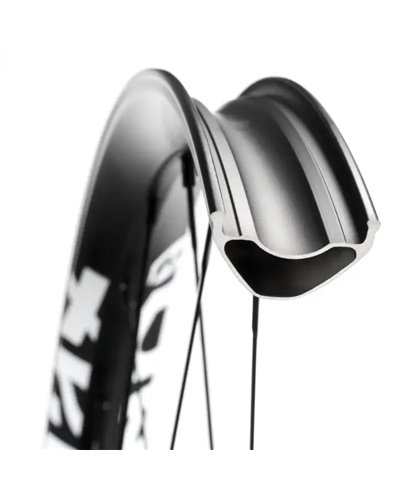

A brand new rim profile has been engineered for this new version. Now featuring a wider central channel, installing even the strongest and most rigid tyres has never been so easy.
Our exclusive Pinch Flat Protection technology (PFP) offers a wider contact surface at the top of sidewall and significantly reduces the risk of tire cuts and punctures. Thanks to PFP, the tyre can resist to 20% harder impact before being cut.
The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.
As all our E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.

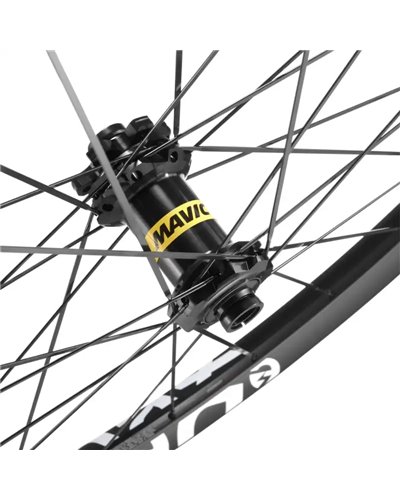

This new generation of E-Deemax is laced on our brand new heavy duty Infinity 28 hub. Infinity means that only 1 spoke length is requiered for both the front and rear wheel, left and right side, and replacing a spoke can be made without removing the disc or the cassette.
The reinforced spokes should protects against damages, but in any case, each wheel is delivered with 2 spare spokes.

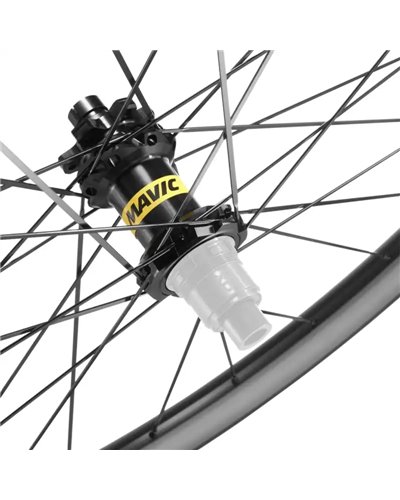

Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.
The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 30 is compatible with a 15x110 front axle and 12x148 rear.
SPECIFICATIONS
Weight
Weight Pair: 2260 g
Weight Front: 1066 g
Weight Rear: 1194 g
Rims
Material: Maxtal
Height: 22 mm
Joint: SUP welding technology
Internal width: 30 mm
Drilling: traditional (front/rear 28 holes)
Braking: disc
Profile: asymmetrical
ETRTO size: 622x30TC
Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape
Spokes
Material: steel
Shape: straight, flat, antirot (front and rear)
Nipples: steel, ABS, black
Lacing: crossed 3 (front and rear)
Hubs
Body material: aluminium
Body design: INFINITY
Disc standard: 6-bolt
Axle material: aluminum
Axle size: front 15x110 / rear 12x148
Freewheel technology: Instant Drive 360
Freewheel: Shimano HG / Shimano MS / Sram XD MTB
Bearing technology: QRM automatic setting - sealed cartridge
Compatibility
Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)
Delivered with
User guide
Rim tape mounted on wheel
UST valve not mounted on wheel
2 replacement spokes with each wheel
Multifonction adjustment wrench with the rear wheel
Intended use
Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
ASTM category 5 : gravity riding focused on the descent
Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)
Data sheet
No customer reviews for the moment.
29" E-MTB
Designed for E-Bike use and for those looking for a 29" aluminium wheelset, with 6-bolt Boost standard and a total weight of 2260 g.
Those seeking a robust wheel for demanding riding
Suitable for anyone wanting a welded rim, extra-strong profile and aluminium construction, for heavy-duty use on an E-Bike.
Those using tubeless tyres on 29"
Indicated for riders working with 29" wheels and looking for tubeless compatibility on a platform designed for E-Bike use.
Ideal
Trail and heavy-duty E-MTB use
The 29" aluminium construction and 6-bolt Boost standard make it suitable for demanding E-MTB use.
29" · E-Bike · 6 Fori Boost · Alluminio
Very suitable
Installation on an electric bike with compatible hubs
29" compatibility and the 6-bolt Boost standard help integration on frames and forks designed for this format.
Compatibilità 29" · 6 Fori Boost · Ruota · E-Bike
Suitable
Wheelset build for sporty use
The 2260 g weight and aluminium construction make it a technical solution for an E-Bike-specific setup.
2260 g · Alluminio · Coppia ruote · E-Bike
Demanding E-MTB rider
It is intended for E-Bike use. The specification indicates a dedicated application for electric bikes.
Compatibility is 29". This is the size indicated for installation.
The standard is 6 Fori. This means the disc mounting follows this interface.
The main material and the listed material are Aluminium. In practical terms, the structure uses a light, rigid metal.
The weight of the wheelset is 2260 g. This is the figure to consider for the two wheels together.
Yes, compatibility is 29". The size matches the specification given on the product sheet.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
