Mondraker Trick 26 Sram SX Eagle 12s, Midnight Blue MY24
Mondraker Trick 26 Sram SX Eagle 12s, Midnight Blue MY24
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

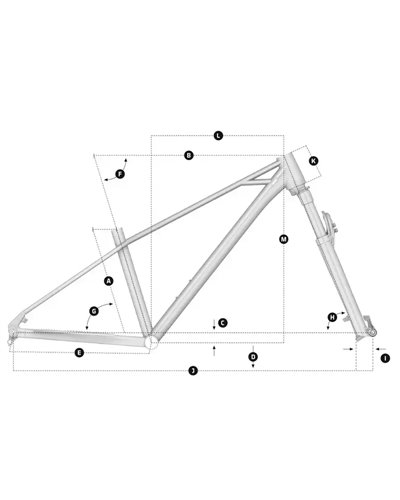

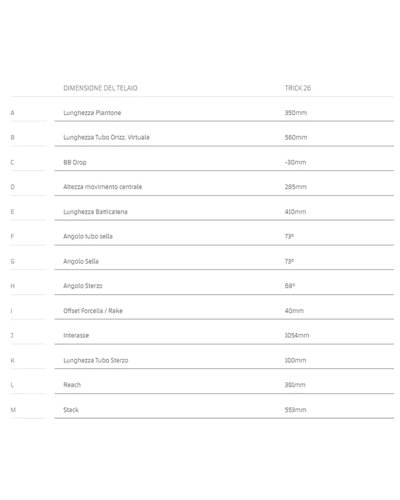

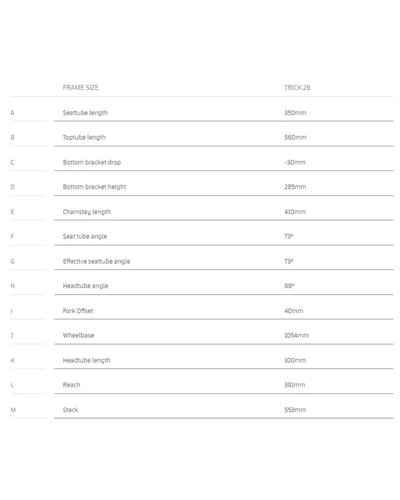

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Trick 26 6061Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, 12x142mm rear axle
Sizes: One size 350mm
Fork: X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0º, length: 45mm
Handlebar: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: Onoff Twin, 1lock-on
Seatpost: Onoff Pija dropper internal, diameter 31.6x100mm
Saddle: SDG Fly JR
Front brake: Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Level, tooled reach adjust, lever pivot bushings
Rims: MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes: CN round stainless steel
Front hub: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub: DA210RSRA01 12x142mm, cup & cone ball bearings, IS 6 bolts, HG freehub
Front tire: Kenda Booster 26x2.4 single compound 30TPI, wire bead
Rear tire: Kenda Booster 26x2.4 single compound 30TPI, wire bead
Crankset: Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm
Rings: 30T, steel, X-Sync
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Pedals: SDG Slater JR
Chain: Sram SX Eagle, 12s, Powerlock
Rear derrailleur: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette: Sram PG-1230, 11-50T, 12s
Derailleur hanger: UDH
Weight: 12,5 kg
Data sheet
No customer reviews for the moment.
Young riders looking for a complete mountain bike
It is designed for mountain bike use, with Junior - Kids user level and a single 350 mm size geometry. The 6061 alloy frame and 12.5 kg weight make it suitable for youth use on any terrain.
Young cyclists who want a unisex bike
The unisex gender designation makes it suitable for broad use, with no sex-based usage limitations. The 26" wheels and front suspension are aimed at off-road control.
Those looking for a front suspension bike for any terrain
The season/conditions entry states any terrain, so it is suitable for varied mountain bike outings. The X-Fusion Velvet RL 120 mm fork helps manage rough ground.
Ideal
Mountain bike outings on mixed surfaces
It is suitable for rides on any terrain thanks to the X-Fusion Velvet RL 120 mm fork and SRAM Level brakes. The setup is consistent with technical but manageable mountain bike use.
Forcella 120 mm · Freni SRAM Level · Ogni terreno
Ideal
Youth use with a simple setup
The 350 mm single size, 12.5 kg weight and SRAM SX Eagle groupset make it suitable for junior use. The bike is set up for direct and practical handling.
Taglia unica 350 mm · 12,5 kg · SRAM SX Eagle
Very suitable
Mixed routes with downhill control
The 6061 alloy frame and front suspension help maintain control on mixed routes. The MDK-XP1 26 TLR rims and Kenda Booster 26x2.4 tyres complete an off-road-oriented setup.
Lega 6061 · Cerchi 26 TLR · Kenda 26x2.4
Very suitable
Use with 1x12 transmission
The SRAM SX Eagle groupset with PG-1230 11-50T cassette and 1x12 shifter provides a linear transmission. It is a suitable solution for those seeking simplicity in mountain bike use.
1x12 · Cassetta 11-50T · Comando SRAM SX Eagle
Families or young riders looking for a first serious mountain bike
The intended use is mountain bike. The specification also lists it for any terrain, so it is designed for varied off-road use.
It comes with SRAM SX Eagle. It is a mechanical 1x12 groupset with PG-1230 11-50T cassette.
It comes with SRAM Level hydraulic disc brakes. The specification lists a 180 mm front rotor and 160 mm rear rotor.
It has 26" wheels. This size is also listed in the specification as 26" diameter.
The frame size is single size, 350 mm. The geometry should therefore be read as a junior single-size setup.
It uses front suspension. The specification lists an X-Fusion Velvet RL fork with 120 mm travel.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
