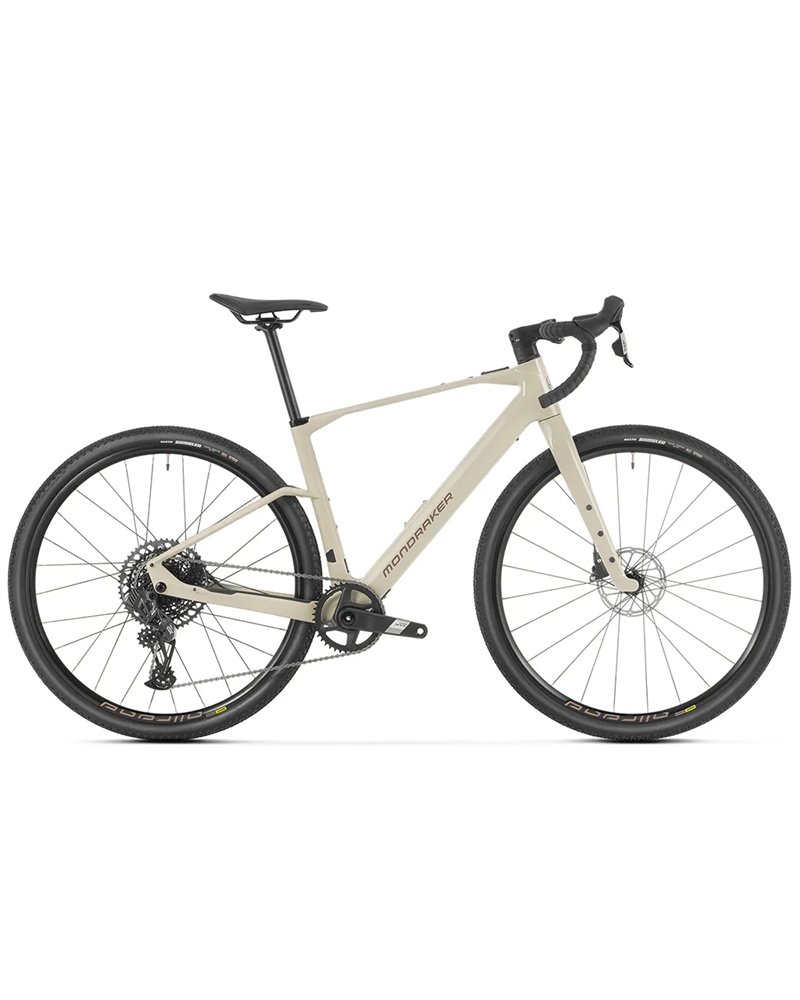

Mondraker Dusty R 700 Sram GX Eagle 12sp Mahle X20 - 350Wh e-Bike, Desert Grey MY26

Mondraker Dusty R 700 Sram GX Eagle 12sp Mahle X20 - 350Wh e-Bike, Desert Grey MY26

Reference 010.26366

€5,999.00

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: XL (Contact Us)

S (Contact Us)
M (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Out-of-Stock

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

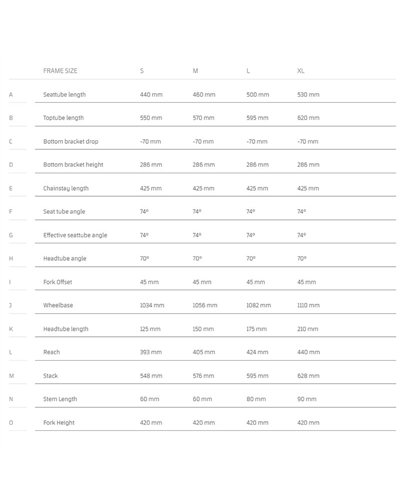

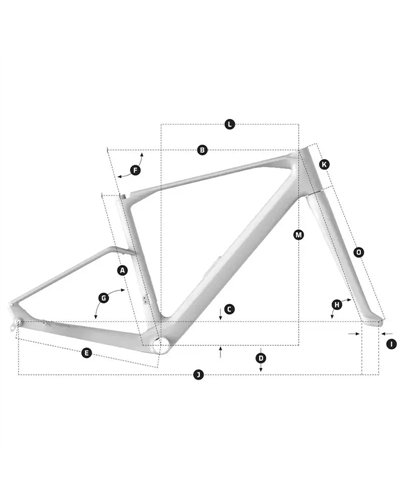

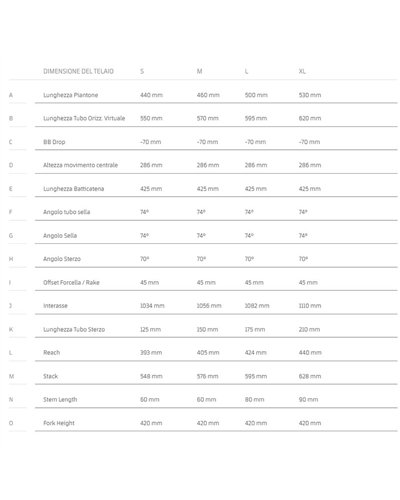

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Sizes: S: 440mm / M: 460mm / L: 500mm / XL: 530mm
Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, L size: 80mm, XL size: 90mm
Handlebar: Onoff S3 GR 16º bar flare. Width sizes S size: 420mm M size: 420mm L size: 440mm XL size: 460mm
Grips: Onoff HEX Bartape
Seatpost: Onoff S3 0-R, diameter 31.6mm, length 400mm
Saddle: Fizik Terra Argo X7 150mm
Front brake: Sram Apex AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Apex AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
Rims: Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Spokes: Mavic Steel double butted flat spokes
Front hub: Mavic, 12x100mm, IS 6 bolts
Rear hub: Mahle X20 Drive Unit, XDR freehub
Front tire: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset: Sram Apex 1 Wide, S size: 165mm M size: 170mm L size: 172,5mm XL size: 175mm, CL 47,5
Rings: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket: Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain: Sram NX Eagle, 12s, Powerlock
Rear derrailleur: Sram GX Eagle AXS,12s
Shift levers: Sram Apex AXS D1 12s
Casette: Sram XG-1275, 10-52T, 12s
Derailleur hanger: Mondraker M076
Others: Optional external battery: Mahle e185Wh
Weight: 13,4 kg
Display: Pulsar One Wireless
Motor: Mahle X20 Drive Unit
Battery: Mahle X20 IX350Wh
