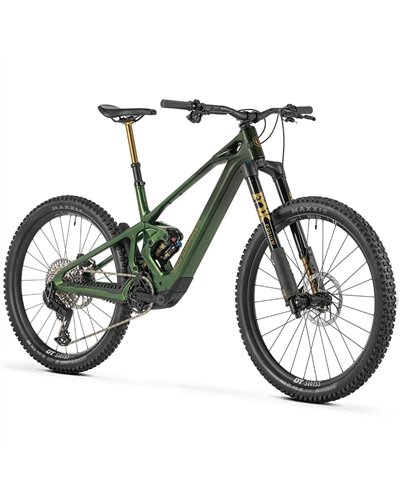

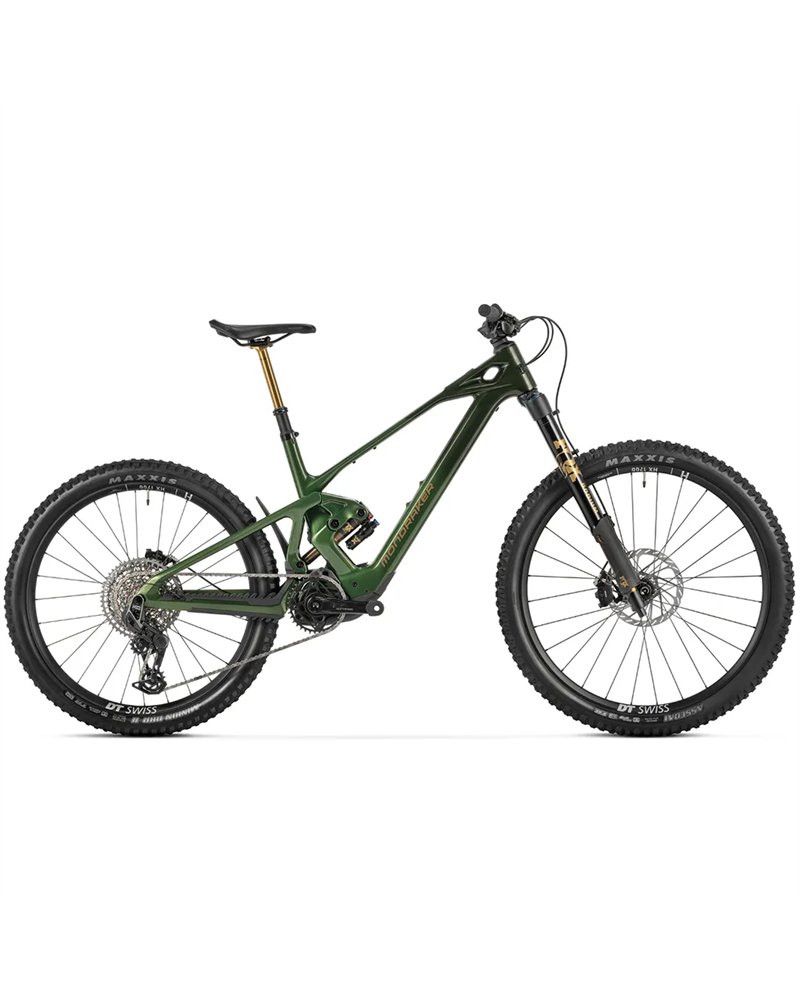

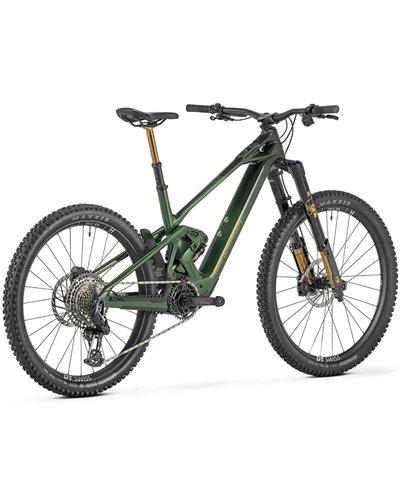

Mondraker Zendit RR S Mullet 27.5/29 Sram X0 Eagle AXS 12sp Avinox M2S - 800Wh e-Bike Size M, Hunter Green MY27
Mondraker Zendit RR S Mullet 27.5/29 Sram X0 Eagle AXS 12sp Avinox M2S - 800Wh e-Bike Size M, Hunter Green MY27
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

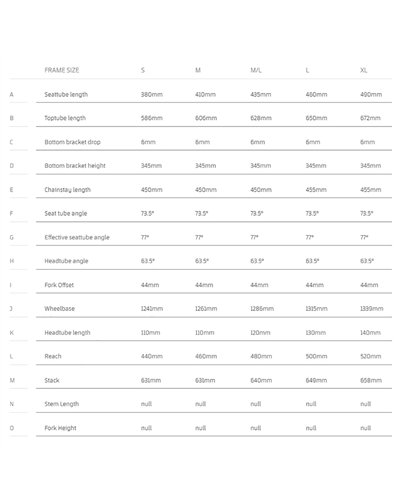

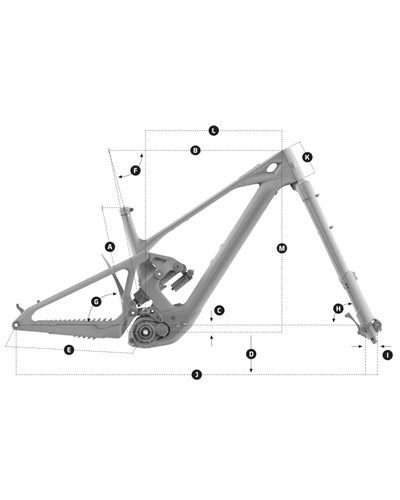

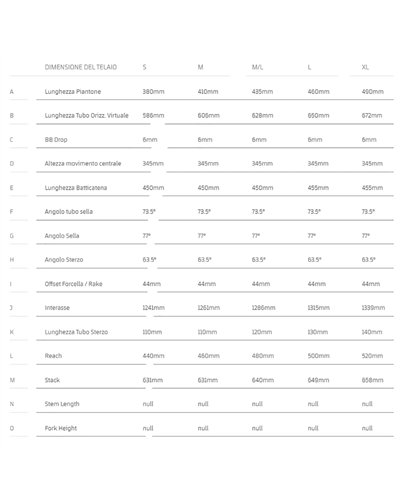

Frame geometry on the attached sheet.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
Shock settings: CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
Fork: Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.
Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.
Seatpost: Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle: Ergon SM10 E-Mountain Black.
Front brake: Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims: DT Swiss Hybrid HX 1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 spokes
Spokes: DT Swiss Straightpull spokes, DT Hybrid III, black
Front hub: DT Swiss 350, Boost 20x110mm, IS 6 bolts
Rear hub: DT Swiss 350 Classic with 24T Ratchet System, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire: Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Crankset: e*thirteen Helix Race e*spec alloy. All sizes: 155mm
Rings: Sram Eagle 36T T-Type, 104BCD, steel, CL55
Chain: Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
Rear derrailleur: Sram X0 Eagle AXS T-Type, 12s
Shift levers: Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s
Casette: Sram XS 1275, 10-52T, T-Type, 12s
Others: Sram AXS Extension Cord / Avinox 4A Charger
Weight: 22.9 Kg
Display: Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
Motor: Avinox M2S
Battery: Avinox 800Wh Battery
Data sheet
No customer reviews for the moment.
Full-carbon e-MTB
Designed for riders looking for an electric MTB with a Carbon frame and Full suspension. The technical setup is focused on off-road use and committed riding.
Cyclists wanting electric boost and high range
Suitable for those who want Avinox M2S motor support and an 800 Wh battery. The configuration is consistent with long rides and technical climbs.
Those looking for a MTB with high-end components
Suitable for riders wanting a technical package with SRAM X0, hydraulic disc brakes and 27.5/29 wheels. The Zendit Stealth Air full Carbon structure completes the build.
Ideal
Trails and technical singletrack
The combination of Full suspension, 27.5/29 wheels and the Avinox M2S motor makes it suitable for technical and varied routes.
Sospensioni Full · Ruote 27.5/29 · Motore Avinox M2S
Very suitable
Long rides on assisted MTB
The 800 Wh battery supports longer rides, while the SRAM X0 groupset provides precise and consistent control.
800 Wh · SRAM X0 · MTB elettrica
Suitable
Descending and aggressive riding
The Carbon frame and hydraulic disc brakes are consistent with demanding, controlled riding.
Telaio carbonio · Freni a disco idraulico · MTB
Experienced MTB rider
It is an e-bike MTB with intended use MTB and discipline MTB. The configuration is designed for off-road riding.
It is fitted with an Avinox M2S motor. This is the key specification for those looking for electric assistance in MTB.
It has an 800 Wh battery. This value indicates a setup aimed at long rides.
It has Full suspension. The bike is therefore set up for off-road use and to absorb rough terrain more effectively.
It is fitted with a SRAM X0 groupset. This is a technical choice suitable for an advanced electric MTB.
It is fitted with hydraulic disc brakes. This solution is suitable for precise braking control in MTB.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
