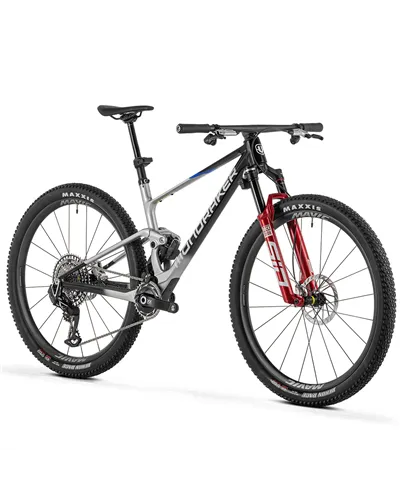

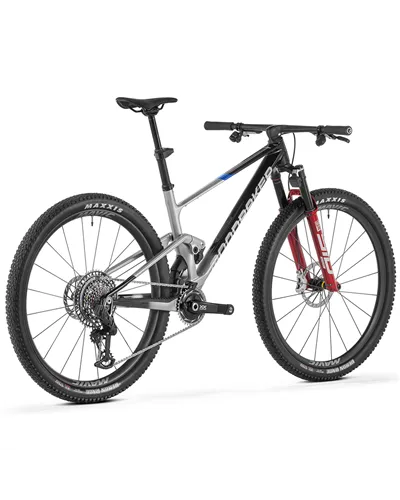

Mondraker F-Podium RR SL 29 Sram XX SL Eagle AXS 12sp, Team Edition MY27

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

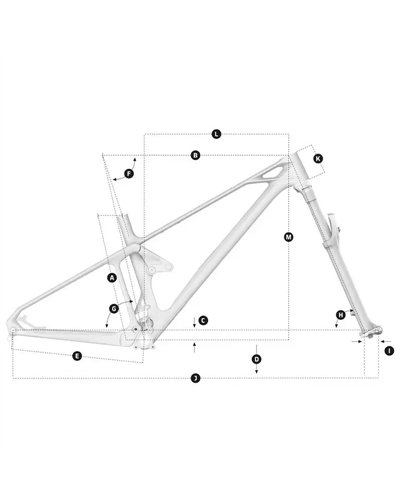

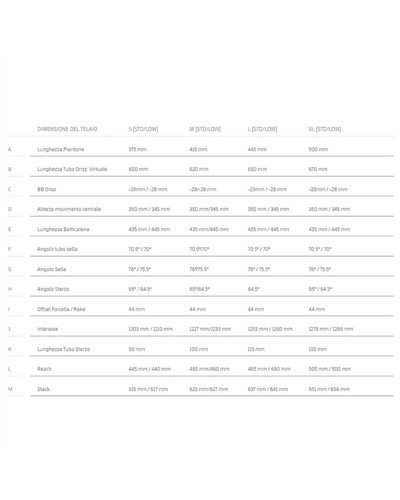

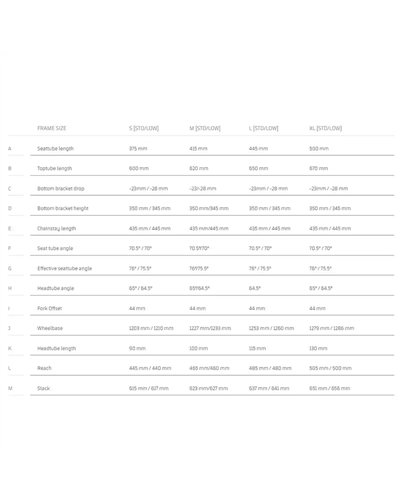

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, UDH, shock mudguard, postmount rear brake mount.
Sizes: S: 410mm / M: 440mm / L: 470mm / XL: 500mm
Rear shock: RockShox SID Luxe Ultimate Flight Attendant, 165x45mm. Settings: Extl rebnd, E-cont. 3 pos comp (open/pedal/lock). Trunnion top mount, 30x8mm bottom bushings
Shock settings: R57 rebound, C30 compression, 1 Token
Fork: RockShox SID Ultimate Flight Attendant, 120mm, Debon Air+, Charger Race Day 2, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: Extl rebnd, E-cont. 3 pos comp (open/pedal/lock)
Fork remote: Flight Attendant controlled
Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
Stem: Onoff S9 Integrated Carbon Handlebar, width: 760mm, 8º Backsweep, 0º Upsweep, S size: 55mm length -12º rise, M size: 55mm length -12º L size: 65mm length -14º rise, XL size: 75mm length -15º rise
Grips: Ergon GXR black
Seatpost: RockShox Reverb AXS, air over air, diameter 31.6mm, S size: 337x100mm, M size: 387x125mm, L size: 437x150mm, XL size: 487x175mm
Saddle: Fizik Vento Argo X5 140mm
Front brake: Sram Motive Ultimate 4P Stealth, 2 piece caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Motive Ultimate 4P Stealth, 2 piece caliper, HS2 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Motive Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever
Rims: Mavic Crossmax Ultimate Carbon 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes: Mavic 20 straight-pull carbon spokes
Front hub: Mavic MX1001 Ultraligth hub, Ceramic bearing Boost 15x110mm, IS 6 bolts
Rear hub: Mavic MX1001 Ultraligth hub, ID360 freewheel technology, Ceramic bearing, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Rear tire: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Crankset: Sram XX SL Carbon Eagle T-Type, Power Meter, Boost, DUB axle, Direct mount chain ring, S size: 165mm, M size: 165mm, L size: 170mm XL size: 170mm, CL 55
Rings: 34T, CNC-machined alloy, T-Type
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram XX SL Eagle T-Type, 12s Flattop, Powerlock
Rear derrailleur: Sram XX SL Eagle AXS, T-Type, 12s
Shift levers: Sram Eagle AXS Pod Ultimate, 12s
Casette: Sram XS-1299, 10-52T, T-Type, 12s
