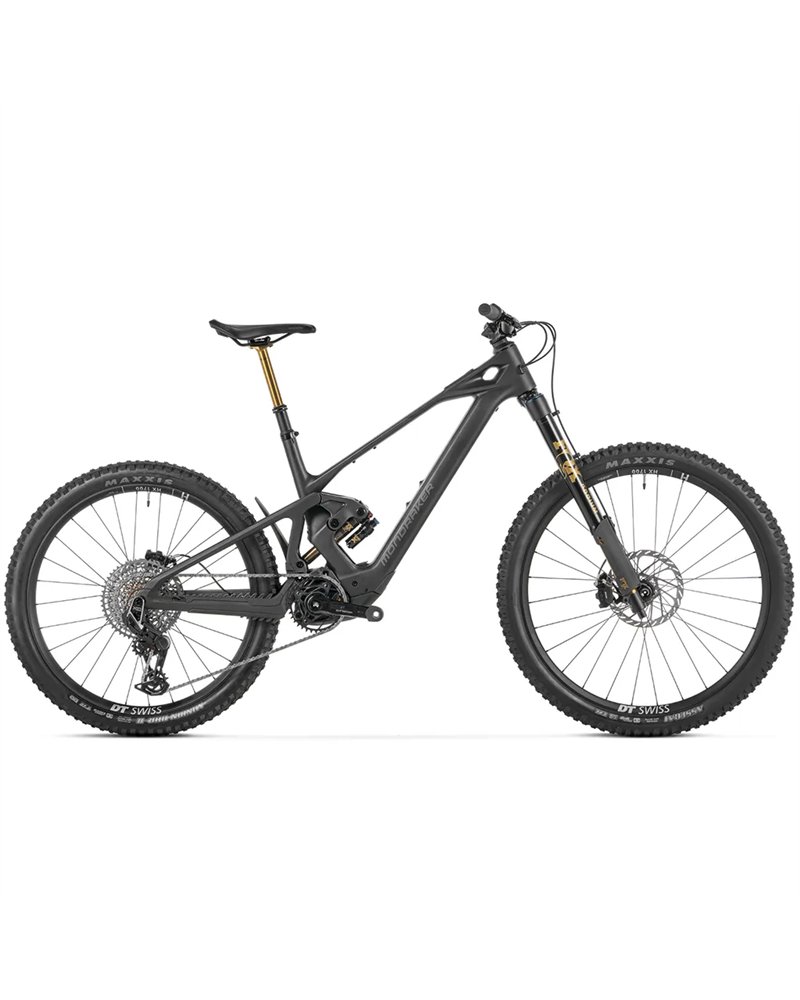

Mondraker Zendit RR S Mullet 27.5/29 Sram X0 Eagle AXS 12sp Avinox M2S - 800Wh e-Bike, Vortex Grey MY27

Mondraker Zendit RR S Mullet 27.5/29 Sram X0 Eagle AXS 12sp Avinox M2S - 800Wh e-Bike, Vortex Grey MY27

Reference 010.27205

€10,499.00

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: XL (Contact Us)

S (Contact Us)
M (Contact Us)
M/L (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

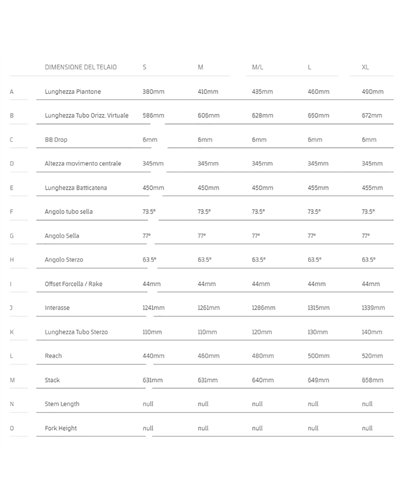

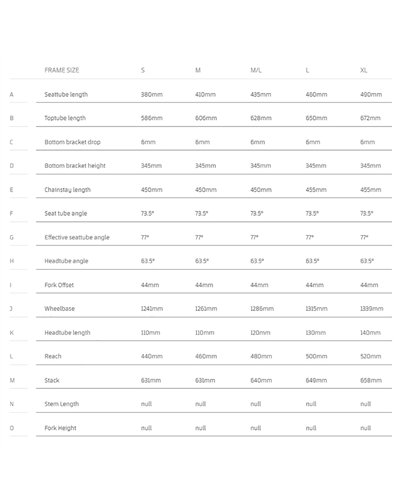

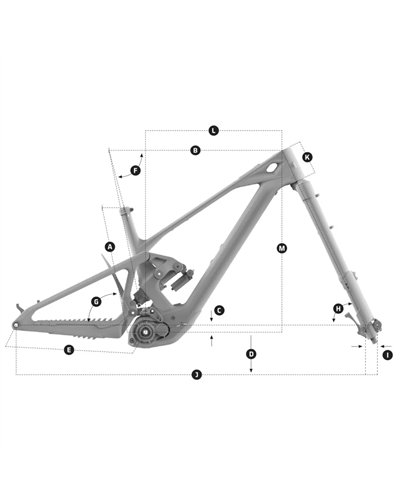

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
Shock settings: CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
Fork: Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.
Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.
Seatpost: Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle: Ergon SM10 E-Mountain Black.
Front brake: Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims: DT Swiss Hybrid HX 1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 spokes
Spokes: DT Swiss Straightpull spokes, DT Hybrid III, black
Front hub: DT Swiss 350, Boost 20x110mm, IS 6 bolts
Rear hub: DT Swiss 350 Classic with 24T Ratchet System, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire: Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Crankset: e*thirteen Helix Race e*spec alloy. All sizes: 155mm
Rings: Sram Eagle 36T T-Type, 104BCD, steel, CL55
Chain: Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
Rear derrailleur: Sram X0 Eagle AXS T-Type, 12s
Shift levers: Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s
Casette: Sram XS 1275, 10-52T, T-Type, 12s
Others: Sram AXS Extension Cord / Avinox 4A Charger
Weight: 22.9 Kg
Display: Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
Motor: Avinox M2S
Battery: Avinox 800Wh Battery
