Mondraker Crafty Carbon XR 29 Sram X0 Eagle AXS 12sp Bosch CX Race Smart - 800Wh e-Bike, Flame Red MY26

Mondraker Crafty Carbon XR 29 Sram X0 Eagle AXS 12sp Bosch CX Race Smart - 800Wh e-Bike, Flame Red MY26

Reference 010.26324

€11,999.00

€10,799.10 Save 10%

VAT included

Manufacturer's recommended retail price: €11,999.00 You save 10% on the recommended retail price (€1,199.90)

Pagamento a rate con

Calcola la rata

Bike frame sizes: S (Contact Us)

S (Contact Us)
M (Contact Us)
M/L (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

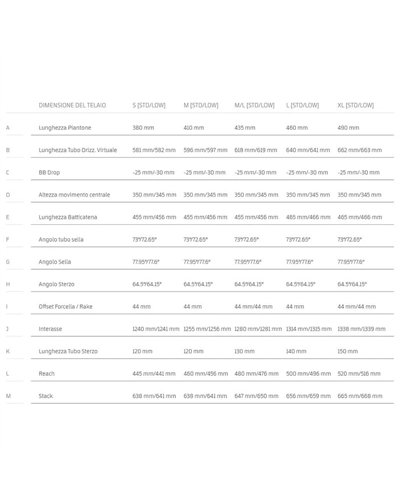

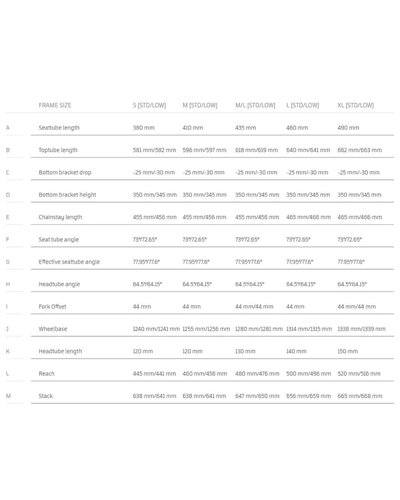

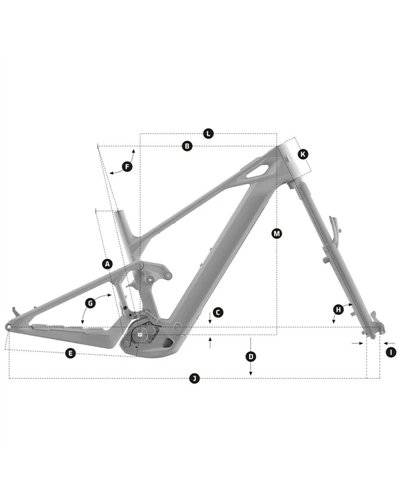

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox DHX2 Factory Kashima, 185x55mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Shock settings: CL60 compression, Bleed 0,9, RS60 rebound, Rezi B60, LML, VVCM Spring rate:S size 400 lbs, M size 450 lbs, ML size 500 lbs, L size 550 lbs, XL size 600 lbs
Fork: Fox Podium 29 Float GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm
Saddle: Ergon SM-10
Front brake: Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims: e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes: e*thirteen Sapim D-light / Brass
Front hub: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset: E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
Rings: Sram XX Eagle 34T T-Type, direct mount, steel, CL55
Chain: Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur: Sram X0 Eagle AXS, T-Type, 12s
Shift levers: Sram Eagle AXS Pod MMX, 12s
Casette: Sram XS-1275, 10-52T, T-Type, 12s
Weight: 24,4 kg
Display: Kiox 400C / Bosch Mini Remote
Motor: Bosch Performance Line CX R (25Km/h) SMART SYSTEM (BDU386Y)
Battery: Bosch Powertube 800Wh

Reference 010.26324

Data sheet

Diameter: 29"
Gender: Men
Women
Material: Carbon
Code: MDK26-AGG150126
Shifting: Electronic
Brakes: Hydraulic disc
Groupset: SRAM X0
Motor: Bosch Performance Line CX Race
Suspension: Full suspension
Type: E-Bike
Battery capacity: 800 Wh
