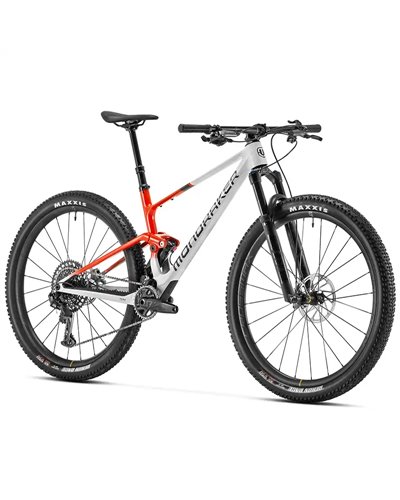

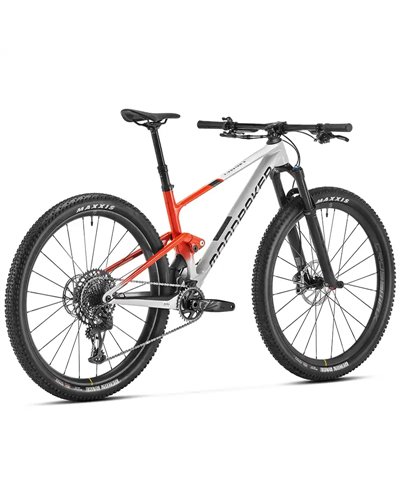

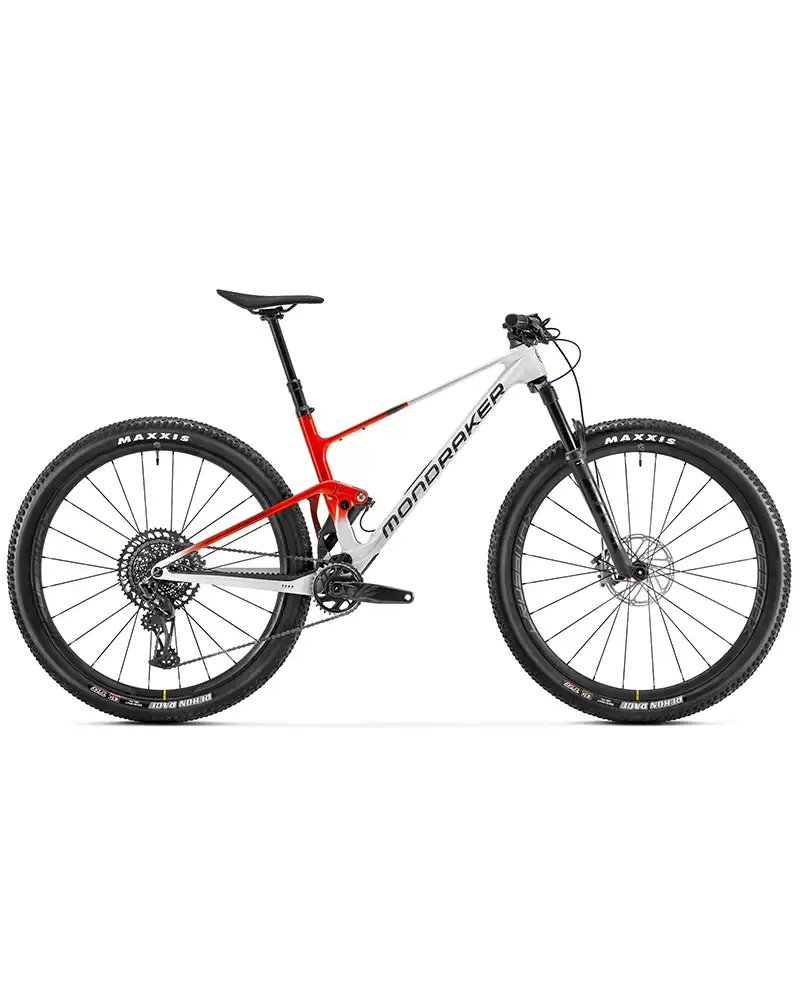

Mondraker F-Podium R 29 Sram GX Eagle 12s Size XL, Flame Red MY24
Mondraker F-Podium R 29 Sram GX Eagle 12s Size XL, Flame Red MY24
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

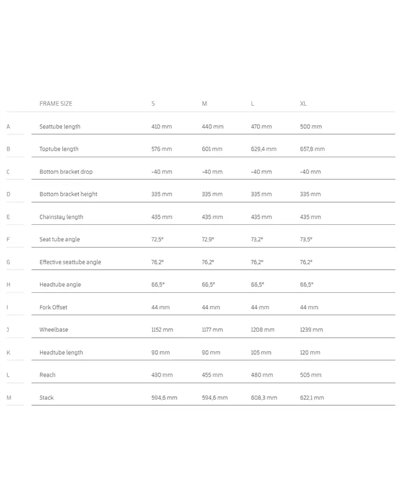

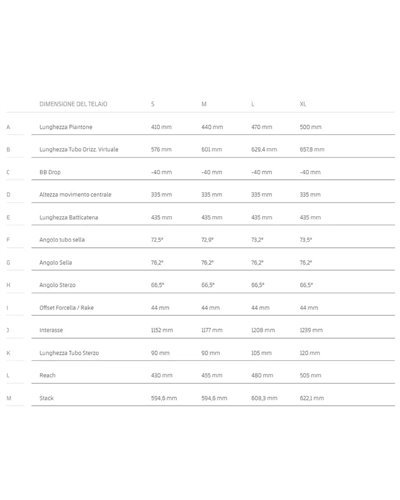

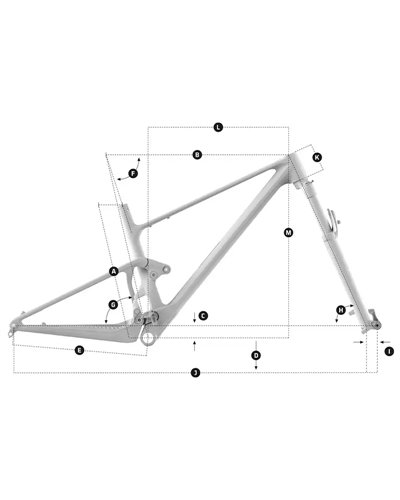

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
Sizes: S: 410mm / M: 440mm / L: 470mm / XL: 500mm
Rear shock: Fox Float SL Performance SV EVOL, 165x45mm. Settings: 3 position remote compression (open/medium/lock), low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: Medium compression, medium rebound, air volume spacer 0.4
Fork: Fox 34 Step Cast Float Grip EVOL Performance, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, rebound, air preload
Fork remote: Fox 3 position dual pull push to lock
Headset: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar: Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips: Onoff Twin, 1lock-on, 135mm
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle: Fizik Vento Argo X5
Front brake: Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Level Bronze, tools-free reach adjust, lever pivot bushings
Rims: Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes: Mavic 24 straight-pull double butted spokes
Front hub: Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub: Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Rear tire: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Crankset: Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
Rings: 34T, CNC-machined alloy, X-SYNC 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram SX Eagle, 12s, Powerlock
Rear derrailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers: Sram GX Eagle, 12s
Casette: Sram XG-1275, 10-52T, 12s
Derailleur hanger: Sram UDH
Weight: 11,9 kg
Data sheet
No customer reviews for the moment.
XC and marathon racing
Designed for those looking for a lightweight racing mountain bike with MTB setup and 29" wheels.
Rider wanting a stiff, responsive frame
Suitable for those who want a carbon frame with Stealth Air Full Carbon construction and full suspension.
Those looking for a race bike with wide sizing
Indicated for those who need an XL size and a full size range from S to XL.
Ideal
XC racing on technical trails
The carbon frame, full suspension and hydraulic disc brakes make it suitable for competitive MTB use.
Carbon · Full Suspension · Disc brakes
Very suitable
Climbs and accelerations off-road
The 11.9 kg weight and the SRAM GX Eagle 1x12 drivetrain support efficient pedalling on punchy sections.
11,9 kg · SRAM GX Eagle 1x12 · MTB
Suitable
Fast routes with 29" wheels
The 29" wheels and lightweight competition-oriented mountain bike setup help maintain rolling speed on mixed terrain.
29" wheels · Lightweight mountain bike · Mixed surfaces
MTB racer
The weight is 11.9 kg. It is consistent with competition-oriented use.
It uses a Stealth Air Full Carbon frame. The structure is designed for a lightweight competition mountain bike.
It uses SRAM GX Eagle 1x12. This configuration is suitable for MTB use with fast and precise gear changes.
It is fitted with hydraulic disc brakes. In MTB use, they offer more controlled braking.
The frame sizes are S: 410 mm, M: 440 mm, L: 470 mm and XL: 500 mm. The XL size is the one listed in the specification sheet.
