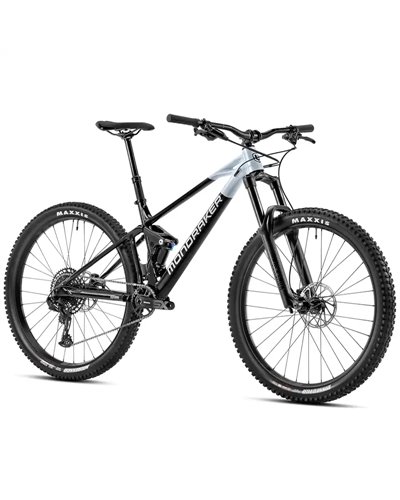

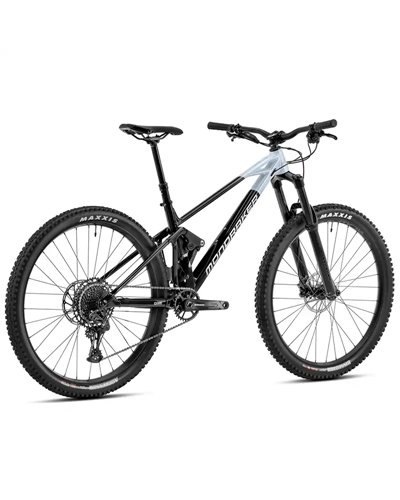

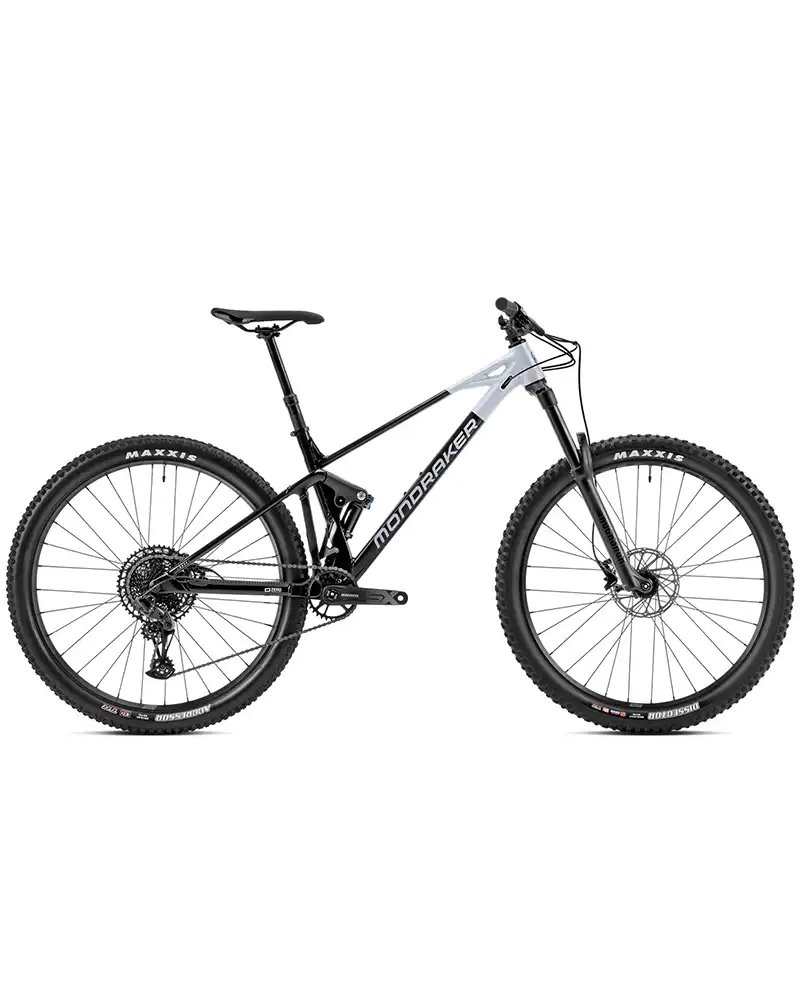

Mondraker Raze 29 Sram SX Eagle 12s, Black

Mondraker Raze 29 Sram SX Eagle 12s, Black MY23

Reference 010.23079

€2,999.00

€1,949.35 Save 35%

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: L (Contact Us)

S (Contact Us)
M (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

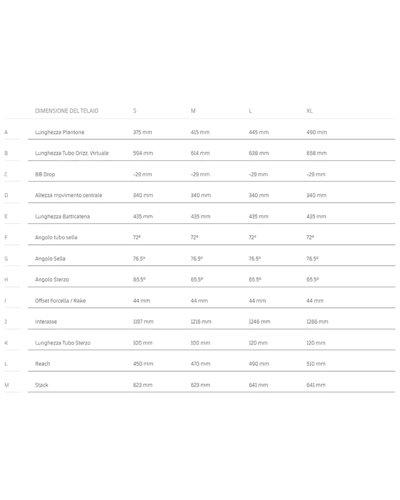

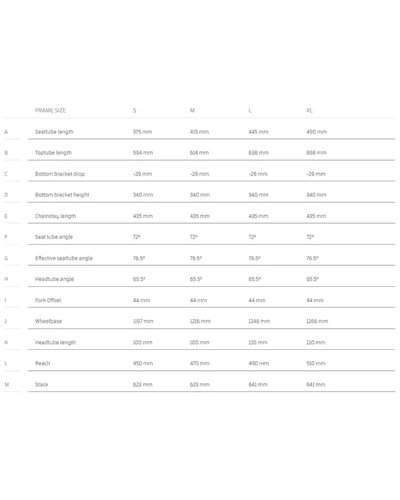

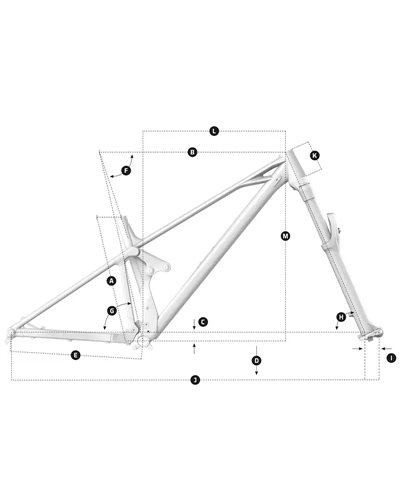

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock: Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings: Light compression, light rebound, air volume spacer 0.6
Fork: RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: ONOFF Twin, 1lock-on, 135mm
Seatpost: ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle: MDK series PU 2023
Front brake: Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims: MDK-EP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes: CN round stainless steel
Front hub: Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub: Formula DHT148 Boost 12x148mm, sealed bearings, IS 6 bolts
Front tire: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset: Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings: 32T, steel, X-Sync 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram SX Eagle, 12s, Powerlock
Rear derrailleur: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette: Sram PG-1210, 11-50T, 12s
Derailleur hanger: Sram UDH
Weight: 15,9 kg
