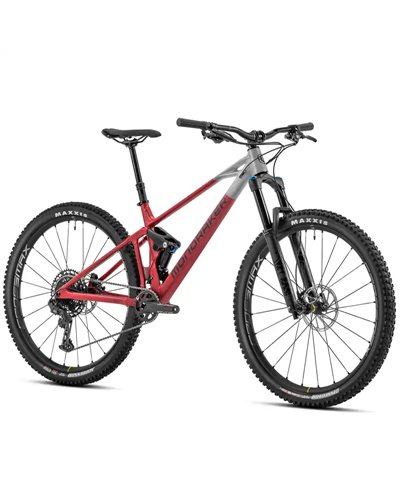

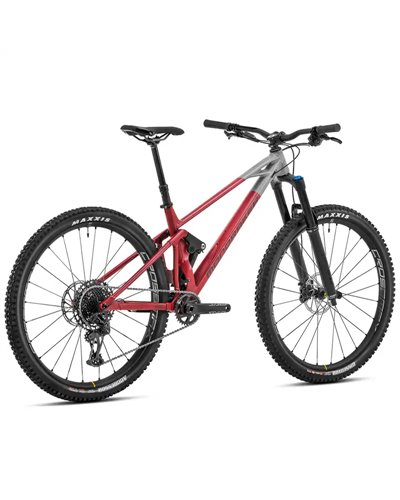

Mondraker Raze R 29 Sram GX Eagle 12s, Cherry Red

Mondraker Raze R 29 Sram GX Eagle 12s, Cherry Red MY23

Reference 010.23084

€3,999.00

€2,599.35 Save 35%

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: XL (Contact Us)

S (Contact Us)
M (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

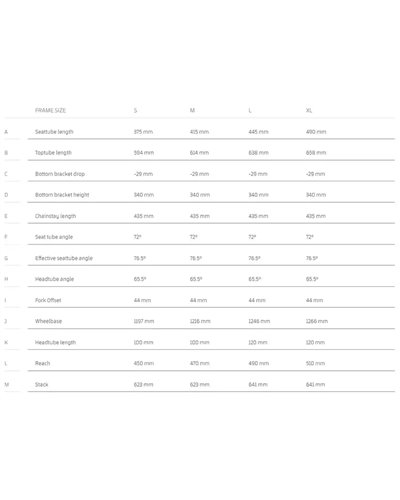

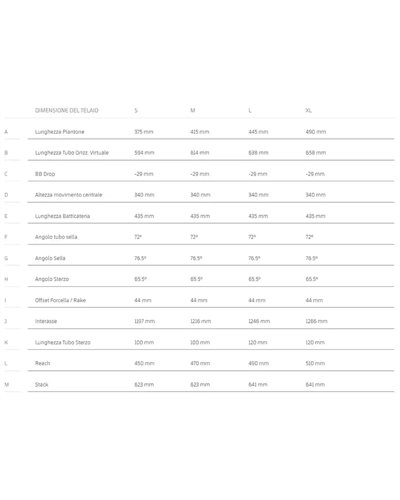

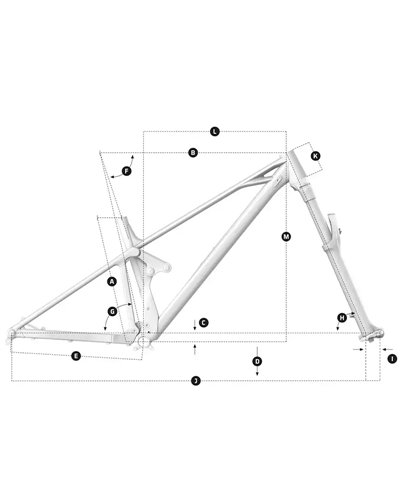

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock: Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings: Light compression, light rebound, air volume spacer 0.6
Fork: Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: ONOFF Twin, 1lock-on, 135mm
Seatpost: ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle: MDK series PU 2023
Front brake: Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram G2 R, tool-free reach adjust
Rims: Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes: 24 straight-pull double butted spokes
Front hub: Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub: Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
Front tire: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset: Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings: 32T, CNC-machined alloy, X-SYNC 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram NX Eagle, 12s, Powerlock
Rear derrailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers: Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Casette: Sram XG-1230, 11-50T, 12s
Derailleur hanger: Sram UDH
Weight: 14,9 kg
