Mondraker Foxy R 29 Sram NX Eagle 12s Size XL, Bronze MY24
Mondraker Foxy R 29 Sram NX Eagle 12s Size XL, Bronze MY24
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

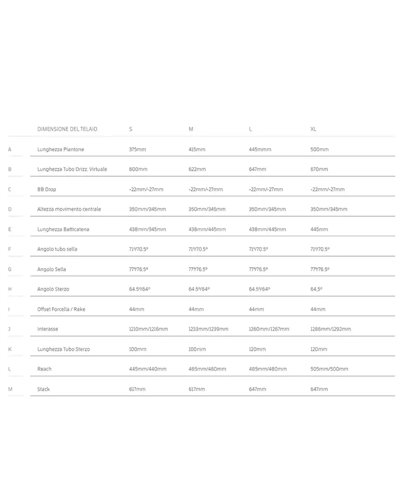

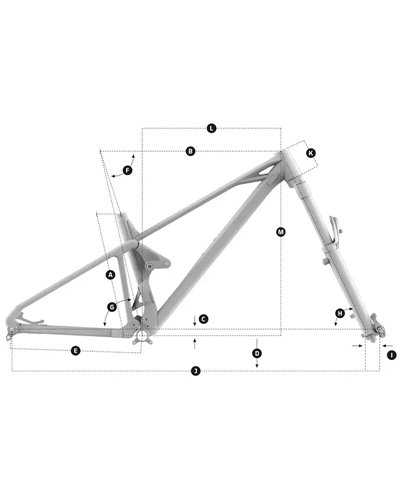

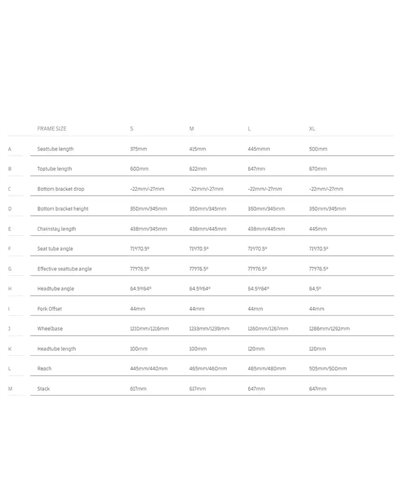

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock: Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings: C20 compression, R35 rebound
Fork: Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: Onoff Twin, 1lock-on, 135mm
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake: Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims: e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset: Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Rings: 32T, CNC-machined alloy, X-SYNC 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram SX Eagle, 12s, Powerlock
Rear derrailleur: Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette: Sram PG-1230, 11-50T, 12s
Derailleur hanger: Sram UDH
Weight: 16,2 kg
Data sheet
No customer reviews for the moment.
Full-suspension aluminium MTB for technical trails
Designed for those looking for a full-suspension MTB with an aluminium frame, 29" wheels and an MTB-oriented setup. The combination of Foxy 29 Alloy 6061 Stealth Evo, Full suspension and SRAM NX Eagle drivetrain is aimed at demanding rides and aggressive handling.
Cyclist seeking downhill control
Suitable for those looking for a bike with SRAM Code Bronze Stealth 4-piston brakes and a full-suspension setup. The 16,2 kg weight and 29" wheels help maintain stability on fast and rough sections.
For those needing an XL frame with dedicated geometry
Designed for those who need the XL size of the Foxy 29 Alloy 6061 Stealth Evo frame. The frame sizes are defined precisely and the structure is intended for MTB use with 1x transmission.
Ideal
Enduro and technical trails
The bike is set up for MTB riding with Full suspension, SRAM Code Bronze Stealth brakes and 29" wheels. This configuration is suitable for technical routes and downhill-oriented riding.
Sospensioni Full · Ruote 29" · Freni a disco
Very suitable
Aggressive riding on mixed terrain
The Foxy 29 Alloy 6061 Stealth Evo aluminium frame and SRAM NX Eagle groupset make it suitable for versatile MTB use. The 16,2 kg weight places it in a robust category for demanding rides.
Alluminio · SRAM NX Eagle · Peso 16,2 kg
Very suitable
Precise riding with powerful braking system
The 4-piston callipers and 200 mm front and 180 mm rear discs support precise braking control. It is a suitable choice for those wanting extra margin on steep descents.
4 pistoncini · Disco 200 mm · Disco 180 mm
Suitable
XL size setup
The XL size corresponds to 510 mm in the frame size chart. It is useful for those looking for a large setup with a dedicated fit.
Taglia XL · 510 mm · Telaio dedicato
Experienced MTB rider
It is a full-suspension MTB with intended use MTB and Full suspension. The specification lists an aluminium frame and 29" wheels.
It comes with SRAM NX Eagle. The drivetrain is set up in 1x12s configuration.
It comes with SRAM Code Bronze Stealth with 4-piston caliper. It is a hydraulic disc brake system designed for strong braking performance.
The stated weight is 16,2 kg. The figure refers to the bike without pedals.
The frame is Foxy 29 Alloy 6061 Stealth Evo. The specification lists aluminium as the main material.
The frame sizes are S: 380 mm, M: 420 mm, L: 470 mm and XL: 510 mm. The bike shown in the specification is size XL.
