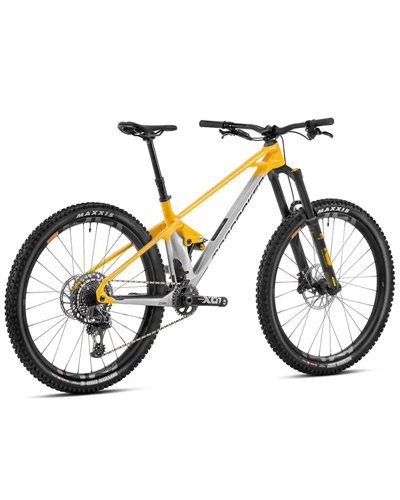

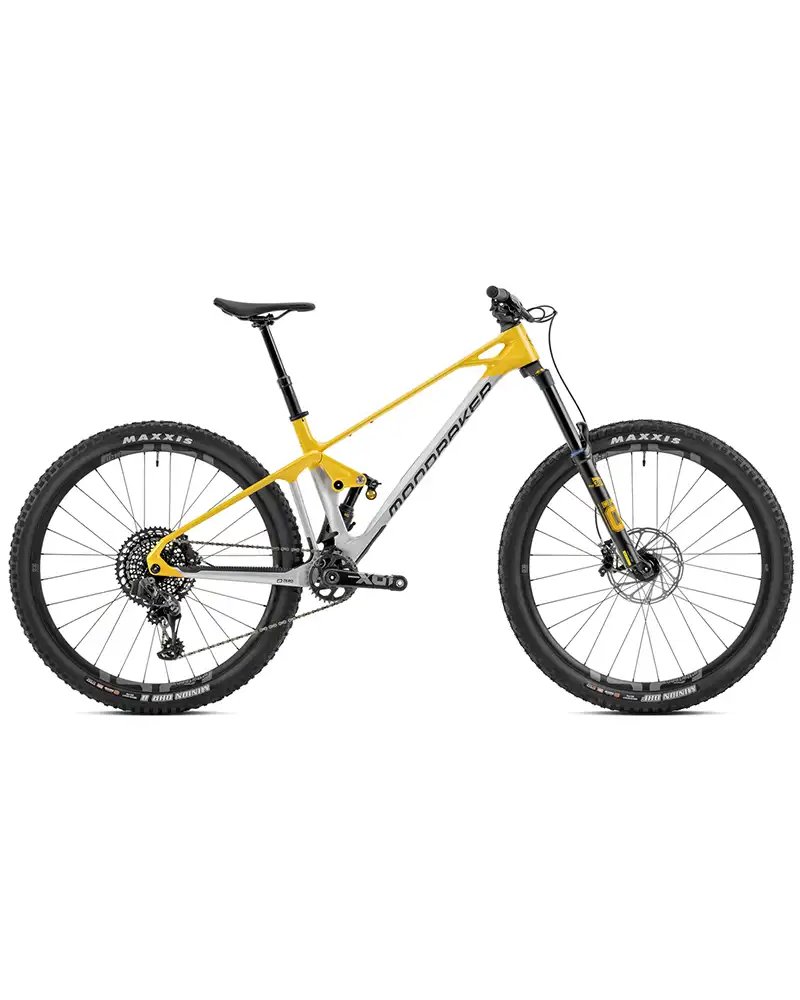

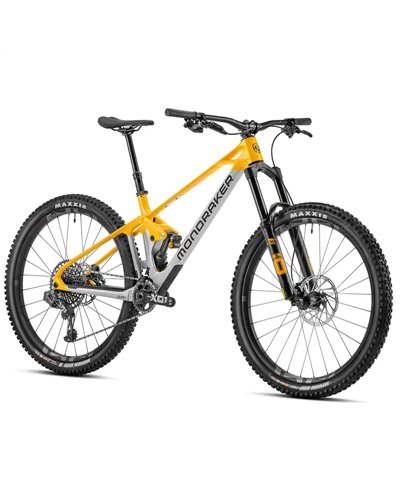

Mondraker Foxy Carbon XR 29 Sram X0 Eagle AXS 12s, Yellow MY23
Mondraker Foxy Carbon XR 29 Sram X0 Eagle AXS 12s, Yellow MY23
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

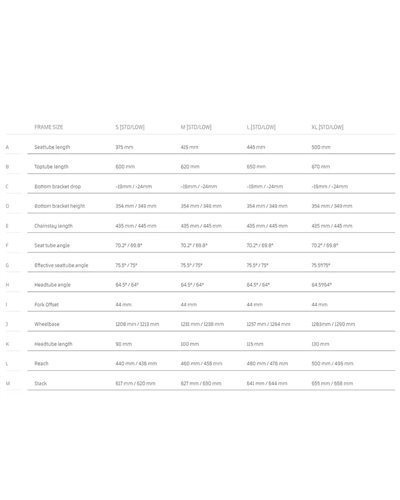

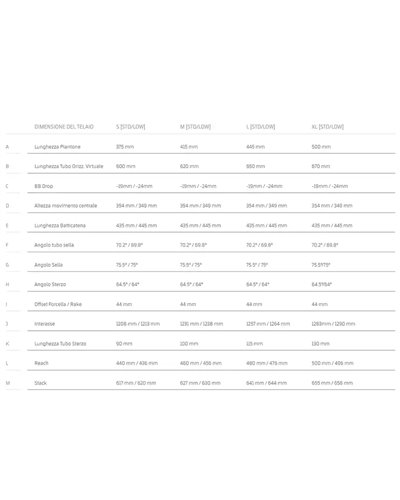

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock: Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
Fork: Öhlins RXF 36 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Headset: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem: ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar: ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: ONOFF Desert, 1lock-on, 135mm
Seatpost: ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake: Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Code RSC, oversized 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims: e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset: Sram X01 Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings: 32T, CNC-machined alloy, X-SYNC 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram GX Eagle, 12s, Powerlock
Rear derrailleur: Sram X01 Eagle AXS, roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers: Sram Eagle AXS Rocker paddle, 12s
Casette: Sram XG-1295, 10-52T, 12s
Derailleur hanger: Sram UDH
Weight: 13,9 kg
