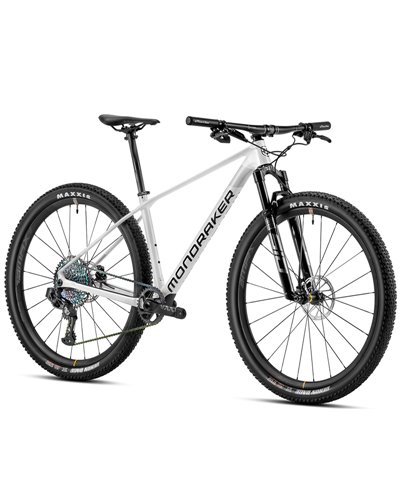

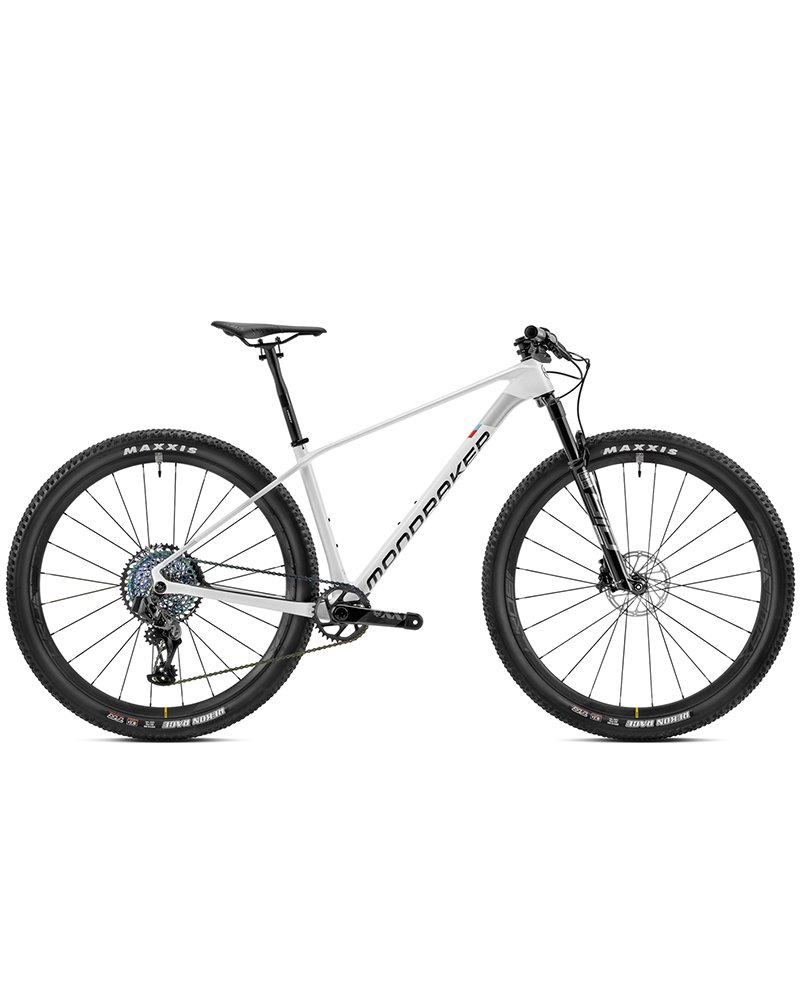

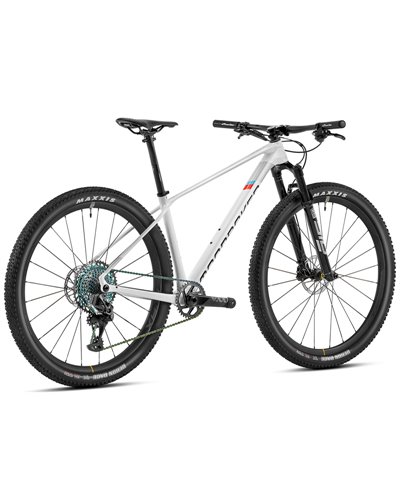

Mondraker Podium RR SL 29 Sram XX1 Eagle AXS 12sp, Racing Silver MY23
Mondraker Podium RR SL 29 Sram XX1 Eagle AXS 12sp, Racing Silver MY23
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

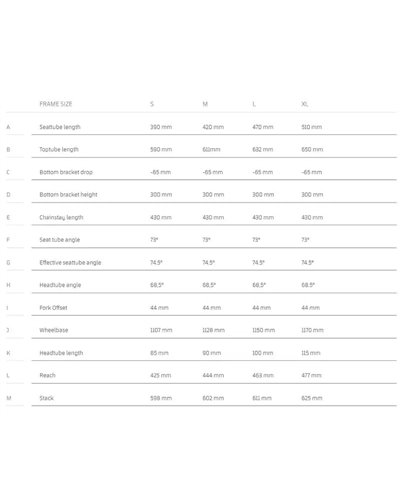

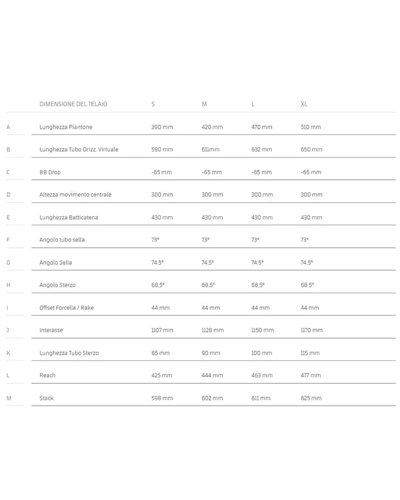

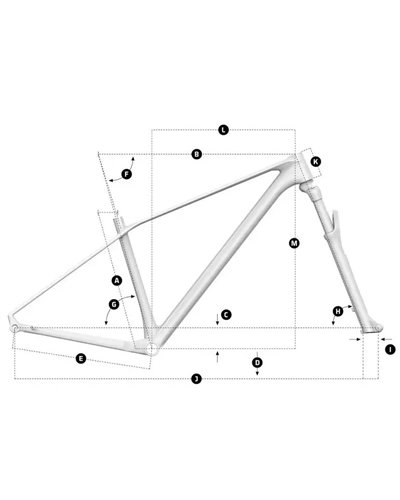

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Sizes: S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Fork: Rockshox SID SL Ultimate RL 29, 100mm, Charger Race day, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload
Fork remote: RockShox OneLoc
Headset: ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: ONOFF Helium 7075 alloy CNC, 31.8mm barbore, rise: +/-8º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm
Handlebar: ONOFF Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips: LIZARD DSP 30.3
Seatpost: ONOFF Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm
Saddle: Fizik Antares R7
Front brake: Sram Level Ultimate, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, titanium hardware
Rear brake: Sram Level Ultimate, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, titanium hardware
Brake lever: Sram Level Ultimate, carbon lever, Direct Link actuation, tooled reach adjust, lever pivot bearings, titanium hardware
Rims: Mavic Crossmax Carbon SL Ultimate 29, 25mm internal width, hookless, tubeless ready, 24 spokes
Spokes: Mavic straight-pull double butted, contactless lacing
Front hub: Mavic, Boost 15x110mm, IS 6 bolts
Rear hub: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub
Front tire: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
Rear tire: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
Crankset: Sram XX1 Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm
Rings: 34T, CNC-machined alloy, X-SYNC 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram XX1 Eagle, 12s rainbow, Powerlock
Rear derrailleur: Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1, Battery protection
Shift levers: Sram Eagle AXS Rocker paddle, 12s
Casette: Sram XG-1299 10-50T, 12s
Derailleur hanger: Sram UDH
Weight: 8,6 kg
Data sheet
