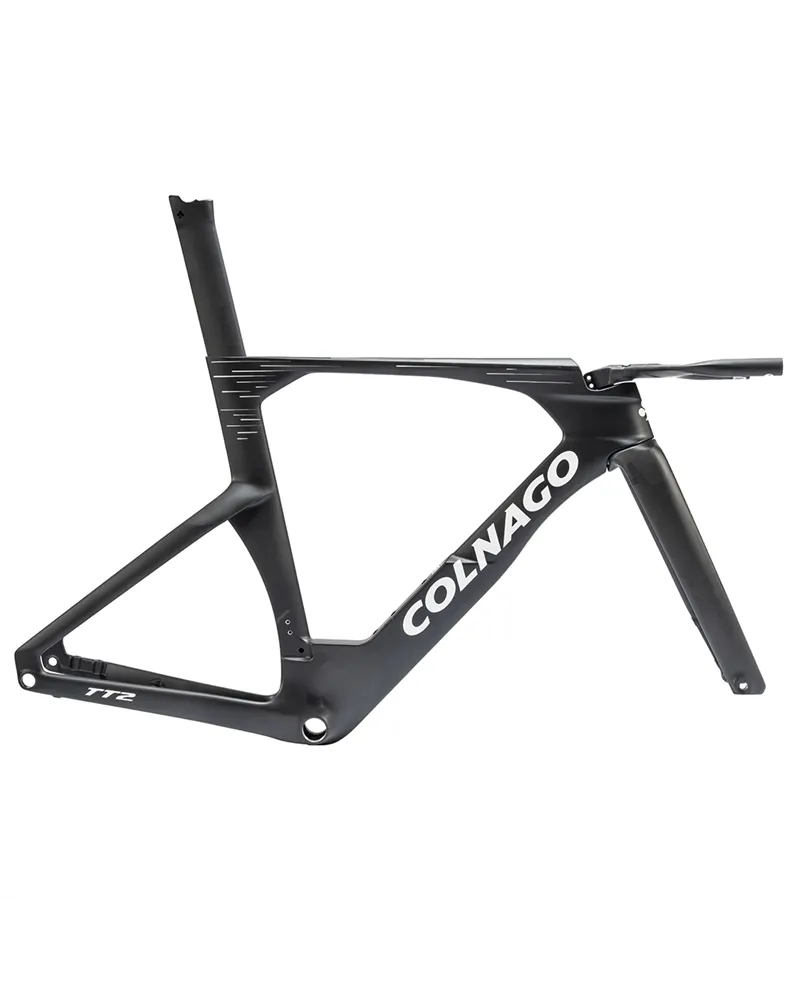

Colnago TT2 Disc Frame Kit - TTSC

Lighter. Faster. Built for the modern time trial.

Reference F-TT2-DISC-TTSC-XS

€7,040.00

€6,336.00 Save 10%

VAT included

Manufacturer's recommended retail price: €7,040.00 You save 10% on the recommended retail price (€704.00)

Pagamento a rate con

Calcola la rata

Bike frame sizes: XS (Contact Us)

XS (Contact Us)
S (Contact Us)
M (Contact Us)
L (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Before proceeding with the purchase, please contact us for availability of your size and chosen set-up.

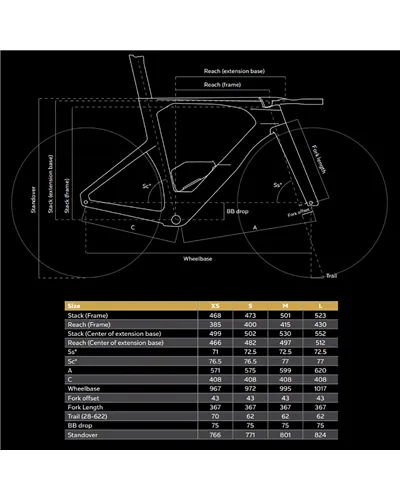

Frame geometry on the attached sheet.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

Developed in collaboration with UAE Team Emirates-XRG and UAE Team ADQ, the new TT2 reduces frameset weight by 550 grams while further improving aerodynamic efficiency, stability, and rider fit.

For elite athletes, performance is no longer measured solely in terms of aerodynamics, but rather by the balance between weight, handling, acceleration, riding position, and stability—especially on courses that combine high speeds, technical sections, and climbs. The TT2 was conceived as an integrated performance platform, where every design choice and component works in synergy to maximize the overall speed of the rider-bike system.

SIZES: XS - S - M - L

TECHNICAL DETAILS
Frame (material): Monocoque carbon
Fork (material, section details): Carbon bayonet-style fork for disc brakes, integrated cable routing.
Headset: Upper and lower bearings 19x30x6.5; 36x45° - included in the kit
Seatpost: Colnago Aero carbon seat post assembly. Adjustable offset.
Seatpost clamp: Colnago TT1 Custom wedge + M8x16 headless screw
Thru-axles: Rear: 12 x 142 mm UDH standard / Front: 12 x 100 mm
Handlebar: Colnago TT1 time trial handlebar + stem cover included / TT extensions not included
Bottle cage: Colnago aerodynamic bottle cage - included / Colnago aerodynamic bottle for TT1 - included
Bottom bracket: BSA 68mm
Brake caliper: Flat Mount disc (rear), Flat Mount (front)
Chainstay height (Flat Mount): 20 mm
Maximum tire size: 28 mm max (maintaining 4 mm clearance)

Reference F-TT2-DISC-TTSC-XS

Data sheet

Diameter: 700
Gender: Men
Women
Material: Carbon
Code: CLNG25
Shifting: Other
Brakes: Hydraulic disc
Groupset: Frame only
Motor: No motor
Suspension: Rigid
Type: Road

No customer reviews for the moment.

Factor Hanzo Track Frameset...

Triathlon

€7,499.00 -15% €6,374.15

When one of the top track racing countries in the world requests that we design the fastest track bike in the world, the Factor HANZŌ Track is the...

Cervélo P-Series Sram Force...

Triathlon

€7,999.00

Cervélo P-Series Sram Force AXS 1, Haleakala

-45.46%

BMC Speedmachine 01 Two...

Triathlon

€10,999.00 -45.46% €5,999.00

BMC Speedmachine 01 Two Sram Force AXS 12sp Size M KM 0, Neon Red/Carbon Black MY24

-10%
Out-of-Stock

Cervélo Frameset P5, Red Hot

Triathlon

€5,999.00 -10% €5,399.10

Cervélo Frameset P5, Red Hot

Out-of-Stock

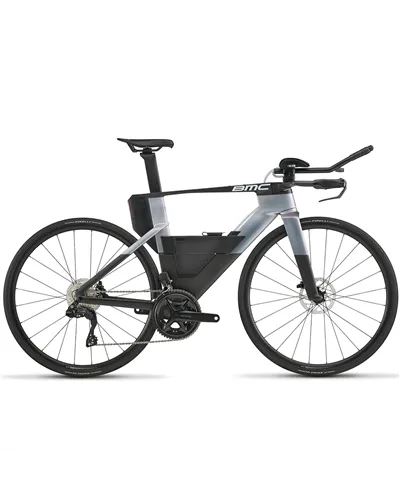

BMC Speedmachine 01 One...

Triathlon

€15,999.00

BMC Speedmachine 01 One Sram Red AXS 12sp, Carbon/Dust Gold MY26

-0.42%

Cervélo Frameset P-Series,...

Triathlon

€4,799.00 -0.42% €4,778.82

Cervélo Frameset P-Series, Paris Green LTD

Out-of-Stock

Cube Aerium C:68X Race...

Triathlon

€6,399.00

You could pedal harder, or you could just pedal smarter.

-10%

Cervélo Frameset P-Series,...

Triathlon

€3,299.00 -10% €2,969.10

Cervélo Frameset P-Series, Heleakala

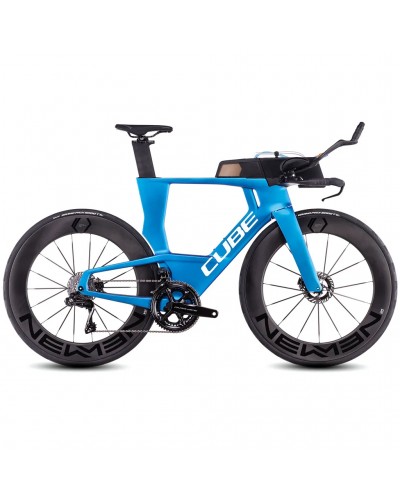

Cube Aerium C:68X SLT...

Triathlon

€9,099.00

Developed in close collaboration with World champion Lucy Charles-Barclay.

BMC Speedmachine 01 Three...

Triathlon

€7,499.00

BMC Speedmachine 01 Three Shimano 105 Di2 12sp, Carbon/Chameleon Silver MY27

BMC Frameset Speedmachine...

Triathlon

€6,499.00

BMC Frameset Speedmachine 01, VAR0 - Lightweight Carbon MY27

Cervélo P-Series Shimano...

Triathlon

€4,999.00

Cervélo P-Series Shimano 105, Haleakala

Out-of-Stock

Cube Aerium C:68X SLX Sram...

Triathlon

€7,999.00

The Aerium C:68X SLX is closely based on triathlete Lucy Charles-Barclay's World Championship-winning bike – so you know it's fast.

-15%

Factor Hanzo Frameset -...

Triathlon

€7,499.00 -15% €6,374.15

When designing it, we decided to capitalize on the revised UCI rules with the goal of making the fastest purpose-built time trial bike in the world.

BMC Speedmachine 01 One...

Triathlon

€10,999.00

BMC Speedmachine 01 One Sram Force AXS 12sp, Carbon/Sundowner Carbon MY27

Out-of-Stock

BMC Speedmachine 01 Four...

Triathlon

€7,499.00

BMC Speedmachine 01 Four Shimano 105 Di2 12sp, White/Black MY26

Who it is for and how to use it

Ideal for

Elite athletes focused on time trialling

Designed for time trial racing and looking for a monocoque carbon frame with a racing-oriented setup. Priority is aerodynamic efficiency, stability and precise fit.

Cyclists working on riding position

Suitable for those who want an optimised geometry and a wide fitting range in sizes XS, S, M and L. The integrated cockpit and offset-adjustable seatpost help define an efficient position.

Those seeking a road frame with a racing setup

Suitable for a rigid road bike, with hydraulic disc brakes and 700 wheels. This is a frame kit designed for high-level builds.

Use cases

Ideal

Individual time trial

The geometry is built for time trialling and prioritises aerodynamics, stability and control. The monocoque carbon frame and integrated cockpit follow this approach.

Time trial · Monocoque carbon · Integrated cockpit

Ideal

Fast routes with technical sections

The rigid structure and stated stability help during pace changes and in more demanding sections. The platform is designed to handle high speeds and precise handling.

Road · Rigid · Stability

Very suitable

Team or advanced athlete setup

The kit includes fork, seatpost, headset and integrated components, making it suitable for a tailored build around the bike project. The drivetrain is not included.

Frame only · Carbon fork · Frame only

Suitable

Builds with fit in mind

Sizes XS, S, M and L broaden positioning options. The aero seatpost with adjustable offset supports a more precise fit search.

Sizes XS-L · Custom fit · Adjustable seatpost

Who it is for

Experienced time trial specialist

Looks for: A time trial frame with WorldTour-oriented setup and precise fit management.
Why: TT2 is developed for elite athletes, with a focus on aerodynamics, stability and position adjustment.

Performance-oriented team or rider

Looks for: A complete platform for a road race build, with integrated components and clear technical standards.
Why: The kit includes items such as headset, seatpost, thru-axles and an integrated aerodynamic bottle system.

Frequently asked questions

What discipline is this frame kit intended for?

It is intended for road use, with a time trial application. The geometry and integrated components follow this approach.

What material is the frame made from?

The frame is made from monocoque carbon. The main material listed is also monocoque carbon.

What sizes are available?

The frame sizes are XS, S, M and L.

What type of brakes does it use?

It uses hydraulic disc brakes. The technical configuration specifies flat mount front and rear.

Does the kit include the drivetrain group?

No, the drivetrain group is listed as frame only.

Show all (7)

What wheels does it use?

The specified wheels are 700, in line with the road-oriented setup.

Does it have suspension?

The bike is rigid, so it does not have suspension.

Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
