Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly. We advise you to refer to the technical sheet below. For any questions please contact us.

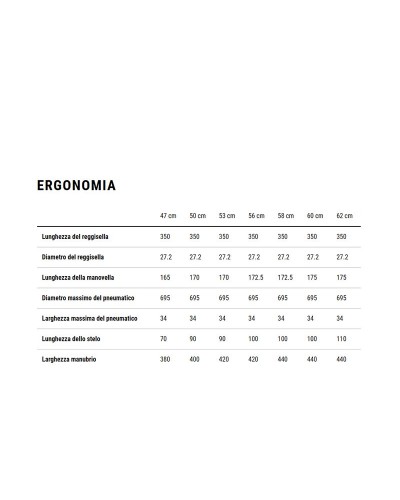

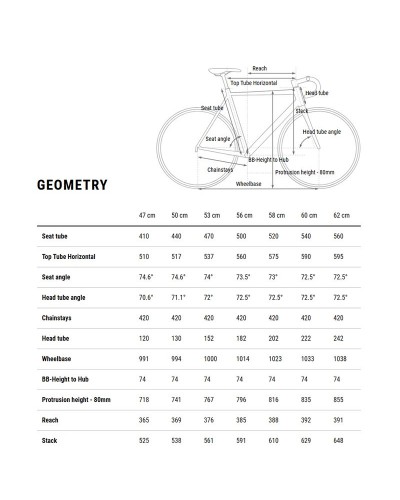

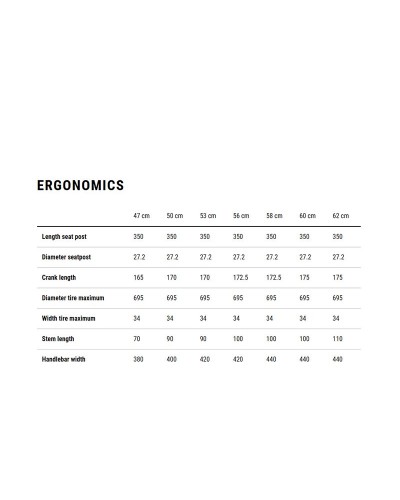

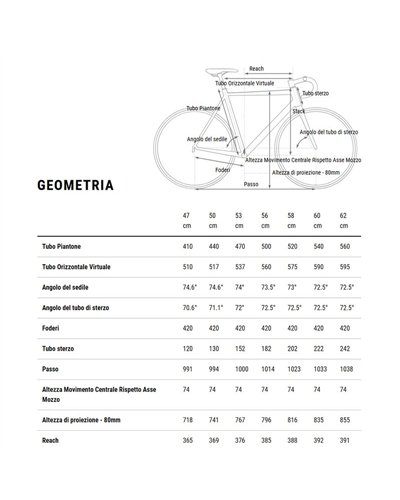

Frame geometry on the attached sheet.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

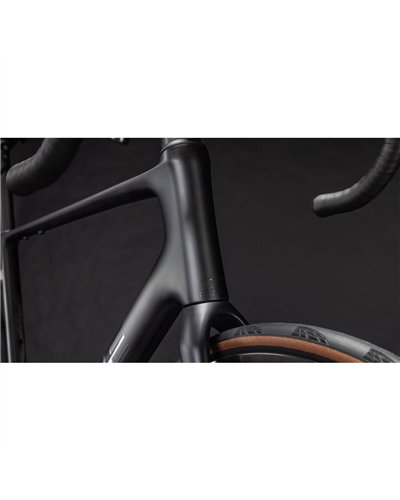

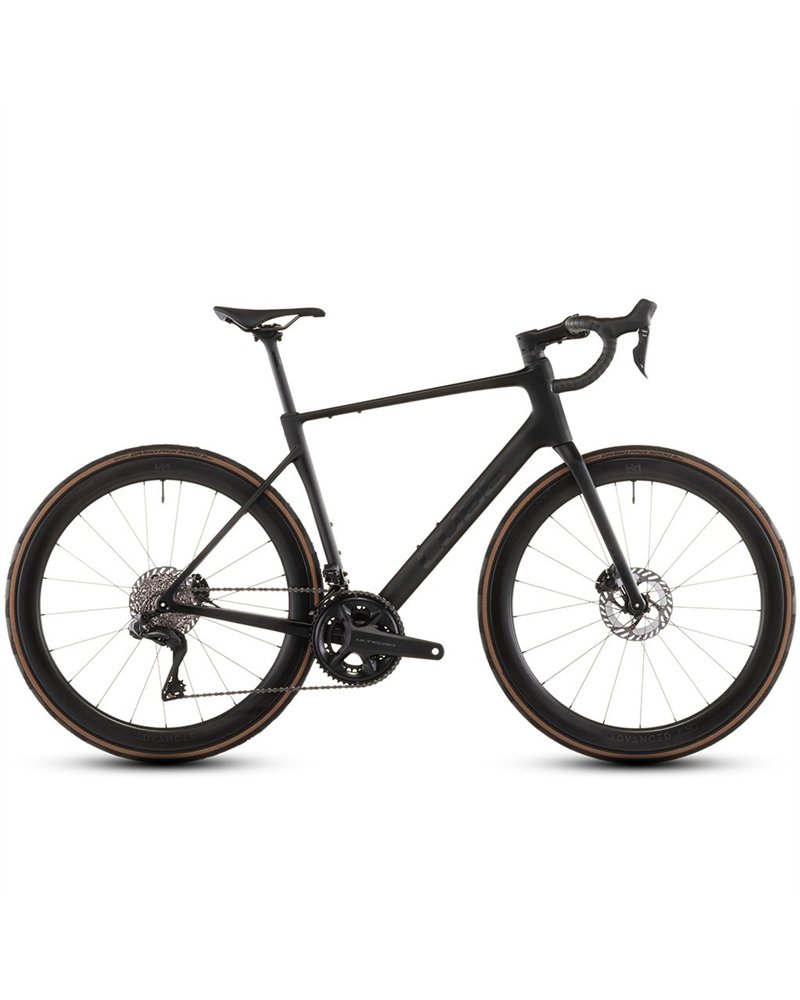

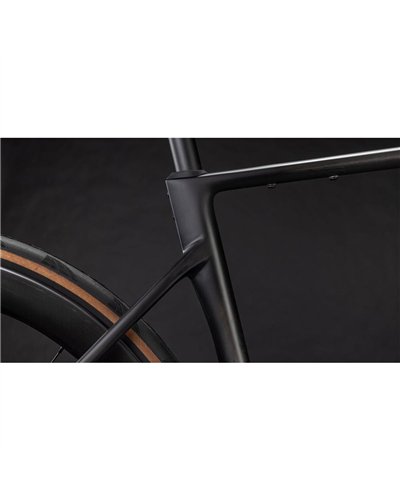

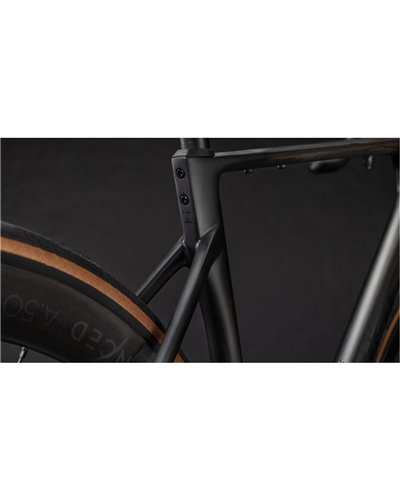

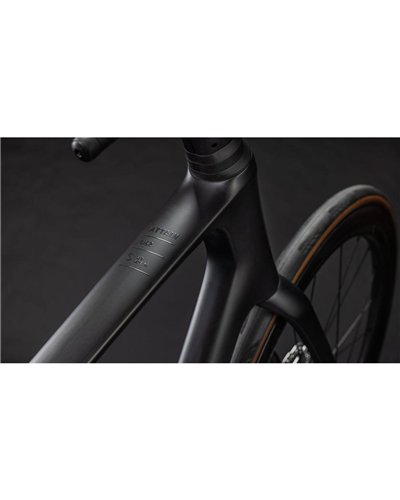

Performance and comfort are two sides of the same coin. The Attain C:62's sleek, semi-aero frame is crafted from our premium C:62® carbon to help you slice through the air. It offers efficient power transfer, too, thanks to its X12 thru axles and careful frame profiling, and integrated cable routing reduces clutter and provides another aero advantage. So that's performance taken care of. On the comfort side, flex stays and a full carbon fork are designed to reduce rider fatigue, even on longer rides or rougher road surfaces – and clearance for tyres up to 34mm translates into plenty of grip and extra cushioning, if needed.
TECH SPECS
Frame
Frame: C:62® Twin Mold Technology, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Storage Box Option, Axh, 12X142Mm
Rigid Fork: CUBE CSL Race Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Flat Mount, 12x100mm
Drivetrain & brakes
Shift/ brake levers: Shimano Ultegra Di2 ST-R8170
Brake system: Shimano Ultegra BR-R8170, Hydr. Disc Brake, Flat Mount (160/160)
Rear derailleur: Shimano Ultegra Di2 RD-R8150-DGS. 12-Speed
Front derailleur: Shimano Ultegra Di2 FD-R8150-F
Bottom bracket: Shimano SM-BB71-41B, 86mm Pressfit

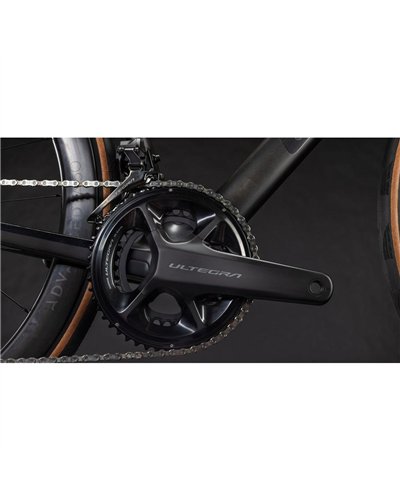

Crankset: Shimano Ultegra FC-R8100, Hollowtech II, 50x34T
Cassette: Shimano CS-R7101, 11-34T
Chain: Shimano CN-M7100
Cockpit
Headset: ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4"
Stem: CUBE CIS Stem w/ Cable Routing, FPI-Link

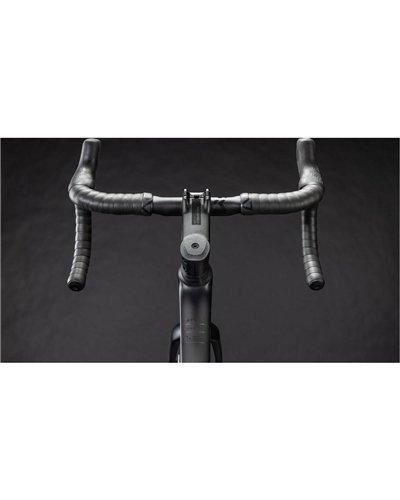

Handlebar: Newmen Advanced Wing Bar, Carbon
Handlebar tape: ACID Bartape RC 3.0
Wheels
Wheelset: Newmen Advanced A.50 Carbon, 21/21 Spokes, 12x100mm/12x142mm, Tubeless Ready
Tyres: Conti Grand Prix 5000 S-TR, Kevlar, 30-622, Tubeless Ready
Finishing kit
Saddle: ACID Nuance Pro
Seat post: Newmen Advanced, Carbon, 27.2mm
Product information
Colour: carbon´n´coalchrome
Weight: 7,9 kg
Art. No: 125700
More Information
Bike category of use: 6
Maximum system weight: 100 KG
The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.
