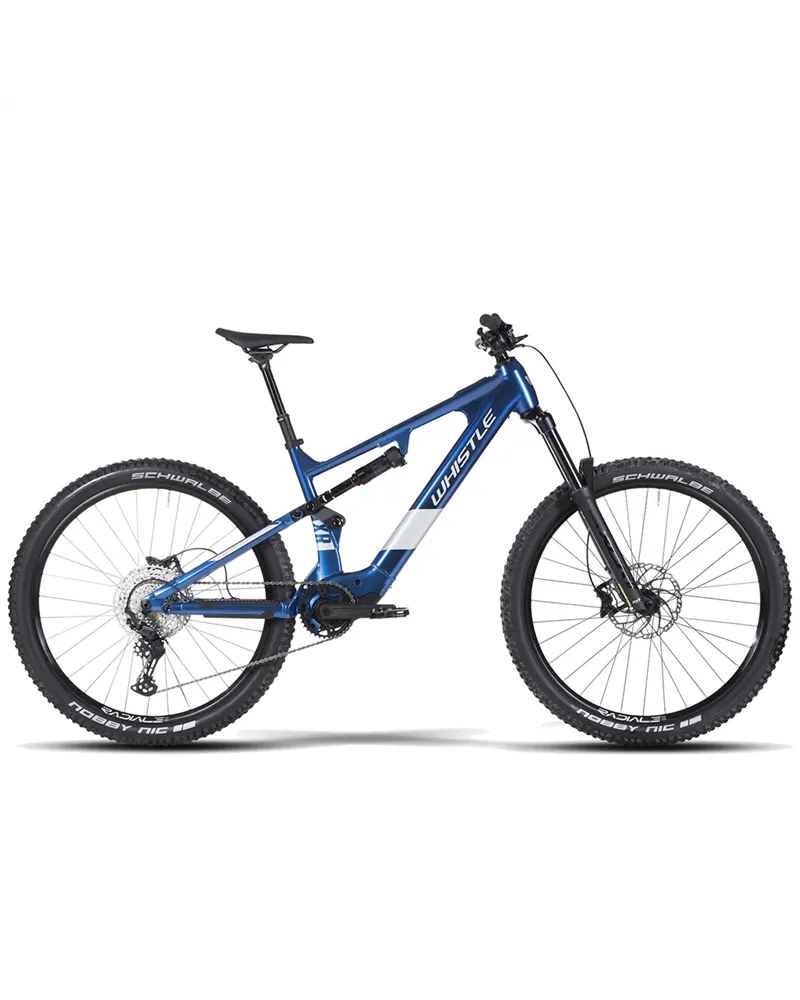

Atala Whistle e-MTB AXR RA4.7 Shimano Deore 12sp Avinox M2 800Wh, Blue/Silver

Atala Whistle e-MTB AXR RA4.7 Shimano Deore 12sp Avinox M2 800Wh, Blue/Silver

Reference 0116892810

€3,699.00

€3,329.10 Save 10%

VAT included

Manufacturer's recommended retail price: €3,699.00 You save 10% on the recommended retail price (€369.90)

Pagamento a rate con

Calcola la rata

Bike frame sizes: 44

Quantity

Add to Wishlist

Add to Compare

Out-of-Stock

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Contact us for more information, technical details and availability.

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly. We advise you to refer to the technical sheet below. For any questions please contact us.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

ELECTRIC KIT: Avinox

MECHANICAL SPECIFICATIONS
Frame: Full Alloy, 29”, Integrated battery, Tapered, Internal routing, 160 mm rear travel, 12x148 mm E-Thru, UDH hanger
Fork: Suntour XCR 36X eMTB, Air R, 29", 160 mm travel, 1.5" Tapered, 15x110 mm
Rear Shock: RockShox Deluxe, Debon Air, 230x65
Headset: FSA CRII Dual, 1.5”, Internal routing
Crankset: FSA CK745 165mm, 36T MegaTooth
Rear Derailleur: Shimano Deore RD-M6200 SGS Shadow Plus, 12s
Shifters: Shimano Deore SL-M6200 Rapidfire-Plus, 12s
Brakes: Shimano BR-MT520, 4-piston, SM-RT66 rotors 203 mm / 203 mm
Cassette: Shimano CS-M6200, 12s, 10-51T
Pedals: Alloy MTB
Front Hub: Radiale J110, 15x110, 6-bolt, 32h
Rear Hub: Radiale J148, 12x148, 6-bolt, Microspline, 32h
Rims: Radiale W30, eDesign, Tubeless Ready, 622x30c
Stem: Alloy, 35 mm clamp, length 35 mm (S-M frames) / 50 mm (L-XL frames)
Handlebar: Alloy, 780 mm, 35 mm clamp, 15 mm rise
Seatpost: Dropper A1, 31.6 mm diameter, remote
Saddle: Selle Royal SRX // Selle San Marco Zero
Tires: Schwalbe Nobby Nic, Performance, Addix, 29”x2.60”
Weight: 26
Wheel diameter [inches]: 29''
Speeds [gears]: 12

ELECTRICAL SPECIFICATIONS
Battery: Avinox 800 Wh (Fixed), weight 3.74 kg
Display: Avinox DP100
Motor: Avinox M2 2.6 kg
Max power and torque: 1300W, 150 Nm / Nominal power 250 W
Max assistance: Auto / Eco / Trail / Turbo / Boost
Max speed: 25 km/h

Reference 0116892810

Data sheet

Diameter: 29"
Gender: Men
Women
Material: Aluminium
Code: ATA27-LIST0726-STK221026
Shifting: Mechanical
Brakes: Hydraulic disc
Groupset: Shimano Deore
Motor: Avinox
Suspension: Full suspension
Type: MTB
Battery capacity: 800 Wh

No customer reviews for the moment.

Merida eOne-Sixty SL 6000...

Full

€6,490.00 -19.41% €5,230.21

The Merida eOne-Sixty SL 6000 Silk River Clay (Gold) MY25 is a Merida e-bike full suspension mountain bike built on the eONE-SIXTY SL CF4 frame...

-10%

Santa Cruz Vala 1 CC Mullet...

MTB

€10,999.00 -10% €9,899.10

Santa Cruz Vala 1 CC Mullet 27.5/29 Shimano Deore XT Di2 12sp Lite Reserve e-MTB, Matte Carbon Sparkle

-10%

Mondraker Scree RR 29 Sram...

Full

€6,999.00 -10% €6,299.10

Top-of-the-range Scree: premium finishes and details that elevate trail riding to the next level. The choice for demanding riders who want the...

-10%

Mondraker Prime 29 Sram SX...

Front

€3,899.00 -10% €3,509.10

Mondraker Prime 29 Sram SX Eagle 12sp Bosch CX Smart - 625Wh e-Bike, Flame Red

Amflow TL Carbon 27.5 TRP...

MTB

€3,499.00

Amflow TL Carbon 27.5 TRP E.A.S.I. 11sp Avinox M2 - 800Wh e-Bike, Silica Beige

-26.84%
Out-of-Stock

Atala e-Bike B-Cross A5.2S...

MTB

€1,999.00 -26.84% €1,462.47

Atala e-Bike B-Cross A5.2S Sram SX Eagle 12sp AM80 500Wh, Anthracite/Black Matt

-24.15%
Out-of-Stock

Merida eOne-Eighty 700...

Full

€6,490.00 -24.15% €4,922.55

The Merida eOne-Eighty 700 Heritage Red (Brown) MY26 is a Merida e-bike full suspension mountain bike built on the eONE-EIGHTY LITE frame with 29"...

-10%

Mondraker Crafty Carbon RR...

Full

€8,499.00 -10% €7,649.10

Mondraker Crafty Carbon RR 29 Sram GX Eagle AXS 12sp Bosch CX Smart - 800Wh e-Bike, Admiral Blue

-10%
New
Out-of-Stock

Atala Whistle e-MTB AXR...

MTB

€6,119.00 -10% €5,507.10

Atala Whistle e-MTB AXR C8.7 Shimano Deore XT 12sp Avinox M2S 800Wh, Red/Grey

-20.78%

Atala e-Bike B-Cross A6.2...

MTB

€2,399.00 -20.78% €1,900.49

Atala e-Bike B-Cross A6.2 X5 Shimano Altus 9sp Bosch CX 500Wh, Petroleum/Black

-24.17%

Merida eBig.Tour 400 EQ...

Front

€3,290.00 -24.17% €2,494.66

The Merida eBig.Tour 400 EQ Silk Dove Blue (Blue) MY26 is a Merida e-bike hardtail mountain bike built on the eBIG.TOUR LITE IV frame with 29"...

-20%

Whistle e-MTB B-Rush Sram NX Eagle 12sp Bosch CX 750Wh, Black/Red

Atala Whistle e-MTB B-Rush...

MTB

€5,389.00 -20% €4,311.20

Atala Whistle e-MTB B-Rush Sram NX Eagle 12sp Bosch CX 750Wh, Black/Red

-10%
New
Out-of-Stock

Atala Whistle e-MTB AXR...

MTB

€4,449.00 -10% €4,004.10

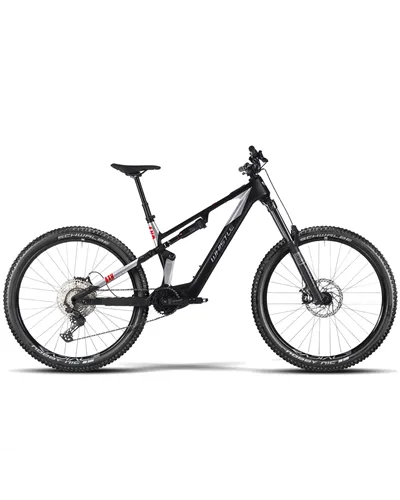

Atala Whistle e-MTB AXR CA5.7 Shimano Deore XT 12sp Avinox M2S 800Wh, Black/Silver

-19.42%

Merida eOne-Sixty 9000...

Full

€8,790.00 -19.42% €7,083.12

The Merida eOne-Sixty 9000 Gunmetal Grey (Silver) MY22 is a Merida e-bike full suspension mountain bike built on the eONE-SIXTY CFA II frame with...

-30.72%
Out-of-Stock

Bianchi e-Vertic FX-Type...

MTB

€4,799.00 -30.72% €3,324.74

Bianchi e-Vertic FX-Type Sram SX Eagle 12sp - Bosch CX 750Wh, E4 Graphite Race Green/Blue Full Matt MY24

-12%

Santa Cruz Bullit 4 C...

MTB

€9,799.00 -12% €8,623.12

Santa Cruz Bullit 4 C Mullet 27.5/29 Sram GX Eagle AXS 12sp e-MTB, Gloss Black

Who it is for and how to use it

Ideal for

Full electric MTB for technical rides

Designed for those looking for an e-MTB with a Full Alu frame, Full suspension and 29'' wheels. The Avinox 800 Wh battery and Avinox M2 motor make it suitable for long, demanding rides.

MTB rider wanting a robust setup

Suitable for those who want an aluminium bike at 26 kg with Shimano Deore groupset and Shimano BR-MT520 brakes. The configuration prioritises control and solidity.

Sport use on trails and climbs

Indicated for MTB riders looking for electric assistance with a maximum speed of 25 km/h. The combination of Avinox M2 motor and Shimano Deore transmission supports sporty off-road use.

Use cases

Ideal

Technical trails and rough terrain

The full suspension setup and 29'' wheels help maintain control on rough sections. The Shimano BR-MT520 brakes with four pistons add power on descents.

Sospensioni Full · Ruote da 29'' · Freni a disco idraulici

Very suitable

Long climbs in MTB

The Avinox 800 Wh battery and Avinox M2 motor support rides with significant elevation gain. The Shimano Deore 12v transmission helps manage pedalling cadence.

Batteria 800 Wh · Motore Avinox M2 · Shimano Deore

Very suitable

Sport rides on mixed routes

The Full Alu frame and 26 kg weight provide a solid base for continuous sporty use. The Schwalbe Nobby Nic tyres support riding on varied terrain.

Telaio in alluminio · Peso 26 kg · Coperture Schwalbe

Suitable

Technical use with repeated braking

The Shimano BR-MT520 brakes with SM-RT66 rotors at 203 mm / 203 mm provide a setup suited to control during hard braking. This is a configuration consistent with demanding MTB use.

Shimano BR-MT520 · Rotori 203 mm · MTB

Who it is for

Experienced MTB rider

Looks for: An e-MTB with solid components, Full suspension and electric assistance for tackling demanding routes.
Why: The combination of Avinox M2, Avinox 800 Wh, Shimano Deore and four-piston brakes works well for sporty off-road use.

Sport rider wanting a climb-and-descend e-MTB

Looks for: An electric 29'' bike with a robust setup and stable control on mixed terrain.
Why: The Full Alu frame, Full suspension and Shimano BR-MT520 brakes provide a coherent base for technical rides.

Frequently asked questions

What type of use is this bike intended for?

It is an MTB with intended use MTB and discipline MTB. It is designed for off-road use.

What material is the frame made from?

The main material is Aluminium and the frame material is Full Alu. This choice favours a stiff structure suited to MTB use.

What drivetrain does it come with?

It comes with Shimano Deore. The spec sheet indicates a 12-speed drivetrain.

What brakes does it come with?

It comes with Shimano BR-MT520, Four piston, with Rotor SM-RT66 203 mm / 203 mm. This is a system suited to powerful braking in MTB.

What wheels does it have?

It has 29'' wheels. This format favours stable handling on off-road routes.

Show all (7)

What battery does it use?

It uses an Avinox 800 Wh (Fixed). The capacity is suitable for sporty e-MTB use.

How much does it weigh?

The stated weight is 26 kg. This is consistent with a full-suspension e-MTB.

Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
