Mondraker Arid Carbon S 700 Shimano GRX 12sp, Superblack MY27

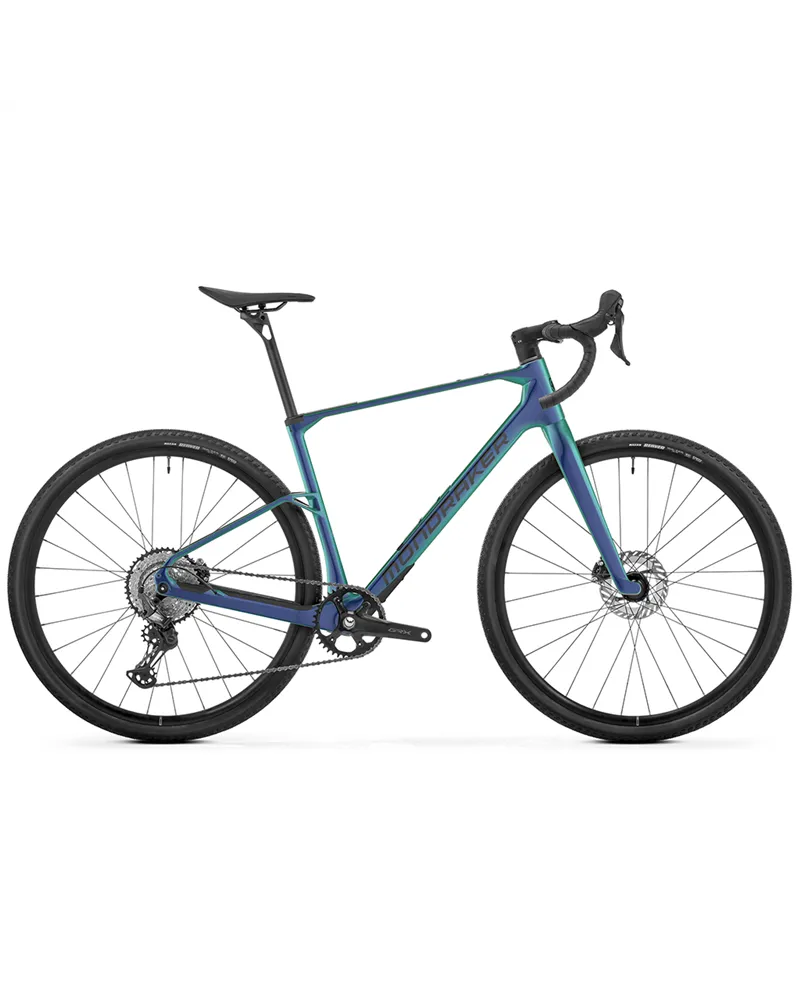

Mondraker Arid Carbon S 700 Shimano GRX 12sp, Atmos MY27

Reference 010.27100AT

€2,999.00

VAT included

Pagamento a rate con

Calcola la rata

Bike frame sizes: M (Contact Us)

S (Contact Us)
M (Contact Us)
M/L (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

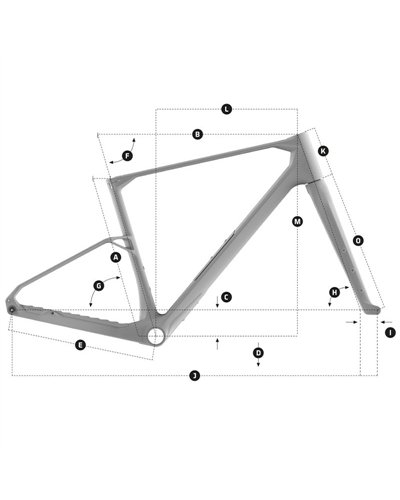

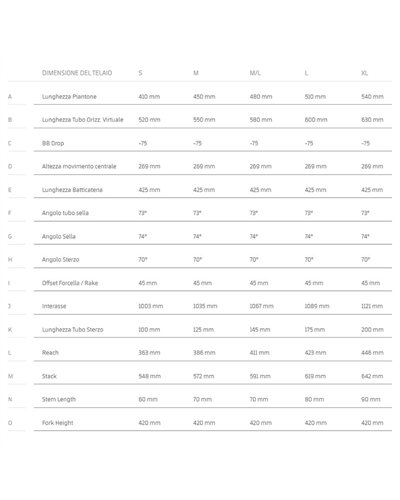

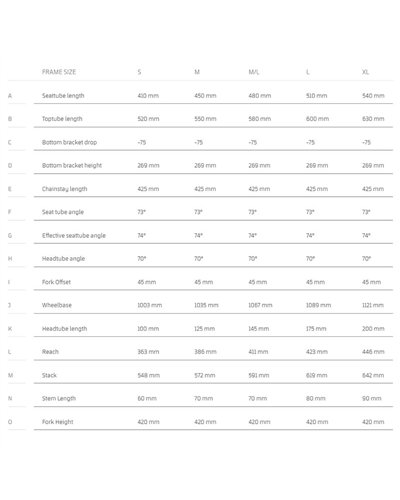

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Sizes: S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar: Onoff S3 GR 16º bar flare. Width sizes: S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm
Grips: Onoff HEX Bartape
Seatpost: Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Saddle: Fizik Vento Argo X5 140mm
Front brake: Shimano GRX RX610, RX410 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Rear brake: Shimano GRX RX610, RX410 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Brake lever: Shimano GRX RX610, tooled reach adjust, aluminium lever.
Rims: Mavic Allroad Disc, 25mm internal width, hookless, 28 spokers
Spokes: Mavic Steel J Bent spokes
Front hub: Mavic, 12x100mm, Centerlock
Rear hub: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, MS Freehub
Front tire: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Rear tire: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Crankset: Shimano GRX RX610, S size: 165mm M size: 170mm ML size: 170mm L size: 172,5mm XL size: 175mm, CL 49,7
Rings: Shimano 40T, direct mount, steel
Bottom bracket: Token T47 BSA sealed bearings, 85,5mm
Chain: Shimano SLX CN-M7100, Quick-Link
Rear derrailleur: Shimano GRX RX822-SGS, 12s
Shift levers: Shimano GRX RX610 dual control, alloy lever
Casette: Shimano SLX CS-M7100, Hyperglide+, 10-51, 12s
Derailleur hanger: Sram UDH

Reference 010.27100AT

Data sheet

Diameter: 700
Gender: Men
Women
Material: Carbon
Code: MDK27-AGG210726
Shifting: Mechanical
Brakes: Hydraulic disc
Groupset: Shimano GRX
Suspension: Rigid
Type: Gravel

No customer reviews for the moment.

Factor LS Frameset Size 49...

Gravel

€4,505.00 -15% €3,829.25

High speed gravel racer.

-20%

Bianchi Impulso Comp...

Gravel

€3,250.00 -20% €2,600.00

Bianchi Impulso Comp Shimano GRX 12sp, GH Celeste Metallic/CK16 Glossy MY25

-10%

Enve Frameset Mog Disc...

Gravel

€5,799.00 -10% €5,219.10

Enve Frameset Mog Disc Gravel, Slate Blue

Mondraker Arid Carbon S 700...

Gravel

€2,999.00

Mondraker Arid Carbon S 700 Shimano GRX 12sp, Superblack MY27

-10%

Cervélo Áspero Sram Apex...

Gravel

€4,699.00 -10% €4,229.10

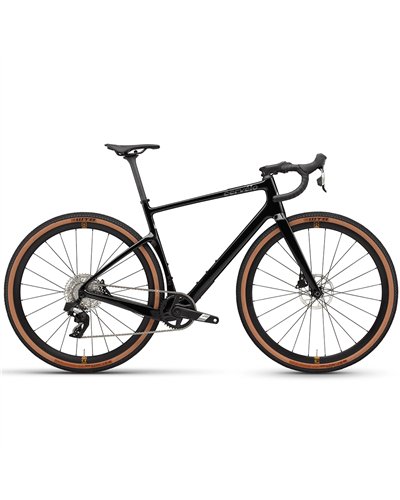

Cervélo Áspero Sram Apex XPLR AXS 1, Marigold

Mondraker Arid Carbon RS...

Gravel

€5,399.00

Mondraker Arid Carbon RS 700 Shimano GRX Di2 12sp, Silverflash MY27

-10%
Out-of-Stock

Colnago C68 Gravel Disc - HGGR

Gravel

€11,600.00 -10% €10,440.00

The C68 Gravel is a fast, solid and precise gravel bike that is fun to ride.

-10%

Mondraker Arid Carbon RR...

Gravel

€6,499.00 -10% €5,849.10

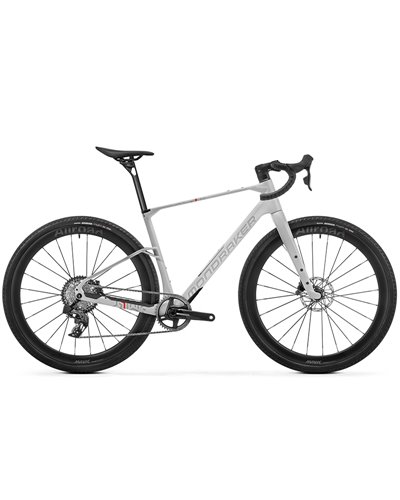

Mondraker Arid Carbon RR 700 Sram Force XPLR Etap AXS 12sp, Bunker Grey MY25

-10%

Colnago G4-X Disc - PIGR

Gravel

€8,870.00 -10% €7,983.00

A balanced gravel racing bike, to give its best on any terrain.

-16%

Santa Cruz Stigmata 4 CC...

Gravel

€3,999.00 -16% €3,359.16

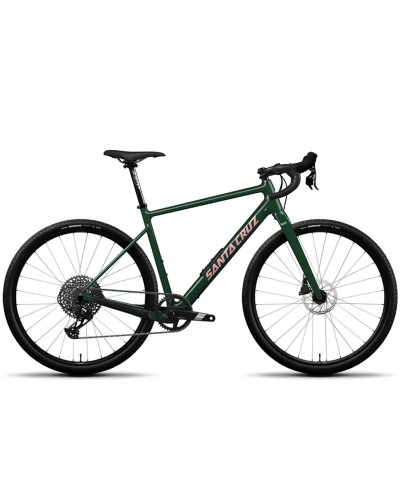

Santa Cruz Stigmata 4 CC 700C Sram Apex Eagle 12sp, British Racing Green

-39.1%
New

Merida Silex 400 Black...

Gravel

€1,790.00 -39.1% €1,090.15

The Merida Silex 400 Black (Grey/Titan) MY25 is a Merida gravel bike built on the SILEX LITE II frame with 28" wheels. It features MERIDA SILEX II...

-25%

MMR X-Tour 00 - Sram S1000...

Gravel

€3,199.00 -25% €2,399.25

Whatever your adventure, the X-Tour is capable of anything you set your mind to.

-25.13%
New

Merida Silex 4000 Warm...

Gravel

€2,290.00 -25.13% €1,714.64

The Merida Silex 4000 Warm Slate Grey (Black) MY26 is a Merida gravel bike built on the SILEX CF2 II frame with 28" wheels. It features MERIDA...

-10%

Cervélo Áspero Shimano GRX...

Gravel

€4,399.00 -10% €3,959.10

Cervélo Áspero Shimano GRX RX820, Marigold

BMC URS 01 LT One Shimano GRX Di2 12sp, Metallic White/Black MY26

BMC URS 01 LT Two Shimano...

Gravel

€3,999.00

BMC URS 01 LT Two Shimano GRX12sp, Chameleon Oil/Black MY27

-10%

Mondraker Arid Carbon R 700...

Gravel

€4,499.00 -10% €4,049.10

Mondraker Arid Carbon R 700 Sram Rival XPLR AXS 13sp, Superblack MY26

Who it is for and how to use it

Ideal for

Gravel rider on a carbon frame

Designed for those looking for a gravel bike with a carbon frame and a technical setup for mixed riding on compact surfaces and gravel. The base is Arid Stealth Air Carbon with Shimano GRX 12v.

For those who want a modern gravel drivetrain

Suitable for those who want the performance of Shimano GRX 12v combined with Shimano GRX brakes and Mavic Allroad Disc wheels. The overall build is designed for sporty gravel use.

For those seeking a multi-size off-road light-use bike

Suitable for those who need a wide size range, from S to XL, on a gravel bike with dedicated geometry and components specific to this discipline.

Use cases

Ideal

Sporty gravel rides

The setup with Shimano GRX 12v, Shimano GRX RX610, RX410 caliper brakes and Maxxis Reaver 700x45 is suitable for sporty, regular gravel outings.

Shimano GRX 12v · Disc brakes · Maxxis Reaver 700x45

Very suitable

Mixed routes with gravel sections

The Arid Stealth Air Carbon frame and Mavic Allroad Disc wheels support use on mixed terrain, with a setup specifically aimed at gravel.

Carbon frame · Mavic wheels · Gravel

Suitable

Long rides on tarmac and light gravel

The bike is suitable for long rides thanks to the combination of carbon frame, tubeless ready tyres and 12-speed transmission.

Carbon · Tubeless ready · 12-speed

Who it is for

Experienced gravel rider

Looks for: A carbon bike with a technical setup and components dedicated to gravel.
Why: Mondraker Arid Carbon S 700 combines Arid Stealth Air Carbon, Shimano GRX 12v and Mavic Allroad Disc wheels in a coherent gravel-oriented build.

Frequently asked questions

What material is the frame made of?

The frame is made of Arid Stealth Air Carbon. The spec sheet also lists carbon as the main material.

Which groupset is fitted?

It is fitted with Shimano GRX 12v, with Shimano GRX RX822-SGS rear derailleur and Shimano GRX RX610 dual control levers.

Which brakes are fitted?

The brakes are Shimano GRX RX610, RX410 caliper with CL-800 ice tech 160 mm centerlock rotors and resin pad pads.

Which wheels are fitted?

It is fitted with Mavic Allroad Disc wheels with a 25 mm internal width and a hookless standard.

Which frame sizes are available?

The frame sizes are S: 410 mm, M: 450 mm, ML: 480 mm, L: 510 mm and XL: 540 mm.

Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
