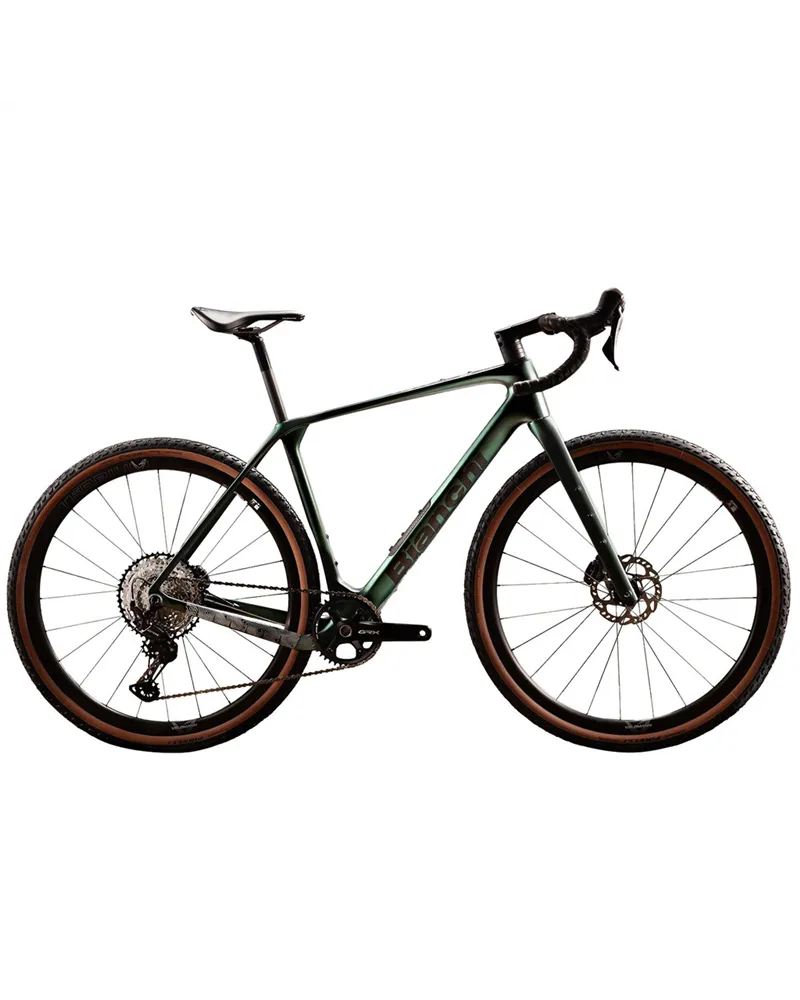

Bianchi Arcadex Pro Shimano GRX 820 12sp, AW Forest Green/Graphite Matt MY24

Bianchi Arcadex Pro Shimano GRX 820 12sp, AW Forest Green/Graphite Matt MY24

Reference YTB85ILGAW

€4,250.00

€3,400.00 Save 20%

VAT included

Pagamento a rate con

Calcola la rata

Bike frame sizes: L (Contact Us)

XS (Contact Us)
S (Contact Us)
M (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Contact us by e-mail

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECH SPECS

FRAMESET
FRAME: Arcadex PRO Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:
FORK: Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite
HEADSET: Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal

DRIVETRAIN
SHIFTERS: Shimano GRX 820 ST/BL-RX820
REAR DERAILLEUR: Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
CRANKSET: Shimano GRX 820 FC-RX820-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
BOTTOM BRACKET: Shimano SM-BB72-41B, press fit
CHAIN: Shimano CN-M7100
CASSETTE: Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline

BRAKES
BRAKES: Shimano Hydraulic Brake, BR-RX820
ROTOR: Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

WHEELS
WHEELS: Velomann Terbium clincher and tubeless ready Rim Diameter: 700C Material: Carbon Rim Height: 30 mm Inner Wigth Channel: 25 mm
TIRE: Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall

COCKPIT
STEM: Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
HANDLEBAR: Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
GRIPS / EXTENSIONS: Bianchi Hexagon tape 2.5mm thickness, Full black

SADDLE
SEATPOST: Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61)
SADDLE: Velomann MITORA 149 H1 cover: soft touch, padding: foam, shell: nylon carbon rails: Aisi Steel lenght: 250mm width: 149mm weight: 230g ± 2

Reference YTB85ILGAW

Data sheet

Diameter: 700
Gender: Men
Women
Material: Carbon
Code: BNCH24-LIST0426-STK161026
Shifting: Mechanical
Brakes: Hydraulic disc
Groupset: Shimano GRX
Suspension: Rigid
Type: Gravel

No customer reviews for the moment.

Merida Silex 500 Silk Moss...

Gravel

€1,990.00 -25.14% €1,489.77

The Merida Silex 500 Silk Moss Grey (River Clay) MY26 is a Merida gravel bike built on the SILEX LITE II frame with 28" wheels. It features MERIDA...

-10%

Cervélo Áspero 5 Shimano...

Gravel

€8,299.00 -10% €7,469.10

Cervélo Áspero 5 Shimano GRX RX825 Di2 1, Royal Mercury

-25.11%
New

Merida Silex 7000 Warm...

Gravel

€2,890.00 -25.11% €2,164.38

The Merida Silex 7000 Warm Slate Grey (Black) MY26 is a Merida gravel bike built on the SILEX CF2 II frame with 28" wheels. It features MERIDA...

-10%

Mondraker Arid Carbon RR...

Gravel

€6,199.00 -10% €5,579.10

Mondraker Arid Carbon RR 700 Sram Force XPLR AXS 13sp, Ultraviolet MY26

-10%
Out-of-Stock

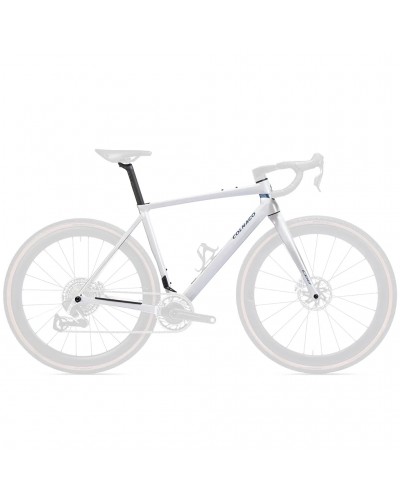

Colnago C68 Gravel Disc...

Gravel

€5,775.00 -10% €5,197.50

The C68 Gravel is a fast, solid and precise gravel bike frame that is fun to ride.

-36.47%
Out-of-Stock

Bianchi Frameset Impulso RC...

Gravel

€4,190.00 -36.47% €2,662.00

Bianchi Frameset Impulso RC Disc Carbon, G7 Raudibotn Camo/Sand Glossy MY24

-10%
Out-of-Stock

Cube Nuroad C:62 SLX Sram...

Gravel

€4,099.00 -10% €3,689.10

The Nuroad C:62 frame takes everything we know about carbon frames and repackages it in a format that's perfect for gravel racing.

Mondraker Arid Carbon S 700...

Gravel

€3,499.00

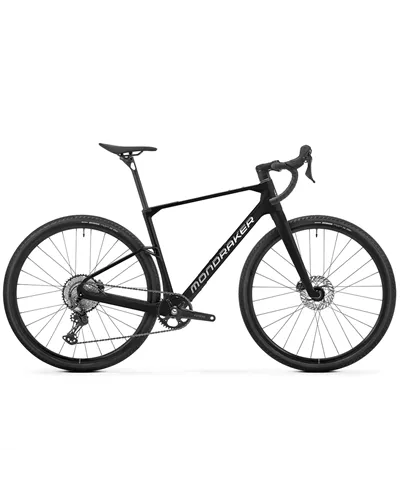

Mondraker Arid Carbon S 700 Sram S1000 Eagle AXS 12sp, Silverflash MY27

BMC URS 01 LT One Shimano GRX Di2 12sp, Metallic White/Black MY26

BMC URS 01 LT One Sram GX...

Gravel

€4,499.00

BMC URS 01 LT One Sram GX Eagle 12sp, Haze Carbon/Black MY27

-10%

Mondraker Arid Carbon RR...

Gravel

€6,499.00 -10% €5,849.10

Mondraker Arid Carbon RR 700 Sram Force XPLR Etap AXS 12sp, Bunker Grey MY25

-25.13%
New

Merida Mission 7000 Matt...

Gravel

€4,990.00 -25.13% €3,736.13

The Merida Mission 7000 Matt Early Moss Grey (Bronze) MY26 is a Merida gravel bike built on the MISSION CF4 II frame with 28" wheels. It features...

-15%

Factor Ostro Gravel...

Gravel

€6,599.00 -15% €5,609.15

Speed is your goal. Every ride, whatever the surface, faster is what counts, and this is the gravel bike you’ve been waiting for.

Mondraker Arid Carbon RR...

Gravel

€6,499.00

Mondraker Arid Carbon RR 700 Sram X0 Eagle AXS 12sp, Silverflash MY27

-20%

Bianchi Arcadex Comp...

Gravel

€3,190.00 -20% €2,552.00

Bianchi Arcadex Comp Shimano GRX SGS 12sp, AZ Metal Sand/Graphite Glossy MY25

-25.09%
New

Merida Silex 400 Oak Bork...

Gravel

€1,590.00 -25.09% €1,191.11

The Merida Silex 400 Oak Bork (Earth Powder) MY26 is a Merida gravel bike built on the SILEX LITE II frame with 28" wheels. It features MERIDA...

-10%

Focus Atlas 6.7 Shimano...

Gravel

€1,799.00 -10% €1,619.10

Focus Atlas 6.7 Shimano Cues 9sp, Champagne/Mint Grey

Who it is for and how to use it

Ideal for

Who is looking for a carbon gravel bike for any terrain

Designed for those who want a gravel bike with a carbon frame and a rigid setup, suitable for rides on any terrain. The Shimano GRX 820 12v transmission and Shimano Hydraulic Brake, BR-RX820 brakes focus on control and precision.

Who wants a modern technical gravel setup

Suitable for those looking for a bike with components specific to gravel, from the Velomann Terbium tubeless ready clincher wheels to the Shimano CS-M7100-12 speed, 11-51T cassette. The carbon structure helps keep the overall weight of the bike down.

Who rides long, mixed-terrain routes

Recommended for those covering varying distances on tarmac, dirt and mixed surfaces with a rigid, responsive bike. The XS(47), SM(51), MD(55), LG(58), XL(61) frame sizes help ensure the correct fit.

Use cases

Ideal

Gravel rides on mixed surfaces

The combination of a carbon frame, 700C wheels and Shimano GRX 820 12v groupset is designed for gravel riding on variable terrain. The bike remains focused on control and smooth rolling.

Telaio in carbonio · Ruote 700C · Shimano GRX 820 12v

Very suitable

Routes with changes in pace and terrain

The Shimano GRX 822 RD-RX822 rear derailleur and Shimano CS-M7100-12 speed, 11-51T cassette help manage changes in pace effectively. The carbon fibre fork keeps the response direct.

Cambio meccanico · Cassetta 11-51T · Forcella in carbonio

Suitable

Long rides with an eye on riding comfort

The Velomann handlebar, aluminium, Gravel ICR and Bianchi Hexagon tape 2.5 mm thickness contribute to a more comfortable grip. The setup, however, remains geared towards a rigid ride.

Nastro 2.5 mm · Piega Gravel · Telaio rigido

Who it is for

Experienced gravel rider

Looks for: A bike with a technical setup, Shimano GRX 820 12v transmission and tubeless ready wheels.
Why: The specification combines a carbon frame, gravel-specific components and hydraulic brakes for precise handling on mixed routes.

Frequently asked questions

What type of bike is the Bianchi Arcadex Pro Shimano GRX 820 12v?

It is a gravel bike with a carbon frame and rigid suspension. It is designed for use on any terrain.

What drivetrain does it come with?

It comes with Shimano GRX 820 12v, with Shimano GRX 822 RD-RX822 rear derailleur and Shimano CS-M7100-12 speed, 11-51T cassette. In use, this means a wide range for tackling climbs and faster sections.

Which brakes does it use?

It uses Shimano Hydraulic Brake, BR-RX820. These are hydraulic disc brakes, suitable for progressive control in gravel riding.

Are the wheels tubeless ready?

Yes, the Velomann Terbium wheels are clincher and tubeless ready. They have a 700C diameter, carbon construction, a 30 mm rim depth and a 25 mm internal width.

Which frame sizes are available?

The available sizes are XS(47), SM(51), MD(55), LG(58), XL(61).

Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
