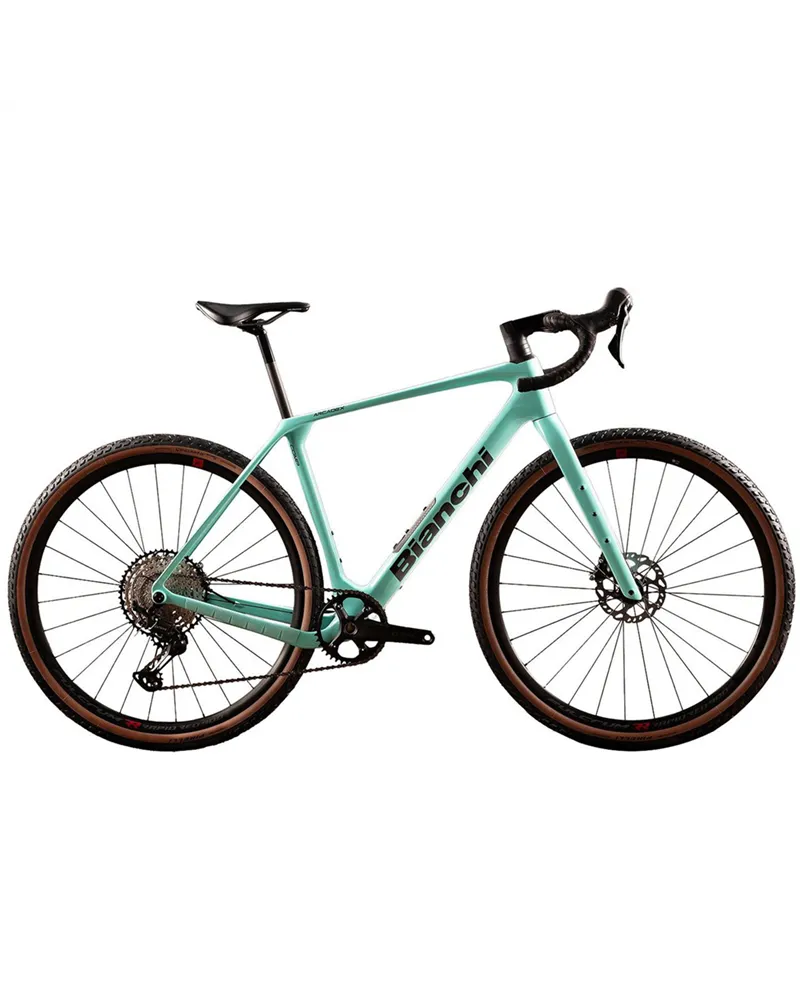

Bianchi Arcadex Comp Sram Apex Eagle D1 12sp, AY CK16/Graphite Glossy MY25

Bianchi Arcadex Comp Sram Apex Eagle D1 12sp, AY CK16/Graphite Glossy MY25

Bianchi Arcadex Comp Sram Apex Eagle D1 12sp, AY CK16/Graphite Glossy MY25

Bianchi Arcadex Comp Sram Apex Eagle D1 12sp, AY CK16/Graphite Glossy MY25

Bianchi Arcadex Comp Sram Apex Eagle D1 12sp, AY CK16/Graphite Glossy MY25

Reference YUB88IMDAY

€3,190.00

€2,552.00 Save 20%

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: M (Contact Us)

XS (Contact Us)
S (Contact Us)
M (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Availability: Contact us by e-mail

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECH SPECS

FRAMESET
FRAME: Bianchi Arcadex, Carbon, Flat mount disc, PressFit 86.5x41 mm, Thru axle, OLD: 142 mm, Rear derailleur: Sram UDH hanger type, Tire clearance: ETRTO 622-50 sizes XS-SM-MD-LG-XL
FORK: Bianchi Arcadex, Carbon, flat mount disc brake, thru axle 12x100 mm
HEADSET: Acros for internal cable routing

DRIVETRAIN
SHIFTERS: Sram Apex AXS, D1
REAR DERAILLEUR: Sram Apex Eagle D1, 12sp
CRANKSET: Sram Apex D1 Wide, 40T Crank length: 170 mm (XS-SM); 172.5 mm (MD-LG); 175 mm (XL)
BOTTOM BRACKET: Sram Press fit Road Wide 86.5x41
CHAIN: Sram SX Eagle, 12 sp
CASSETTE: Sram PG-1210 Eagle, for HG body, 11-13-15-17-19-22-25-28-32-36-42-50T

BRAKES
BRAKES: Sram Apex, Hydraulic disc brake
BRAKE LEVERS: Included in the shifter
ROTOR: Sram Centerline, Center Lock, 160 mm

WHEELS
WHEELS: Velomann V24G, Aluminium rim, profile height 24 mm, 700x24c, 24h, XDR body
TIRE: Pirelli Cinturato Gravel M, 700x45, 120 TPI

COCKPIT
STEM: Velomann AL6061, fully internal cable routing stem, compatible with Acros ICR system Size: 80 mm (XS-SM); 90 mm (MD); 100 mm (LG); 110 mm (XL)
HANDLEBAR: Velomann Gravel, Aluminium, diameter 31.8 mm, reach 70 mm, drop 130 mm, flare 16 deg, Size: 400 mm (XS-SM); 420 mm (MD-LG); 440 mm (XL)
GRIPS / EXTENSIONS: Bianchi Hexagon tape, 2.5 mm thickness, black

SADDLE
SEATPOST CLAMP: Bianchi Custom
SEATPOST: Velomann Carbon, offset 15 mm, diameter 27.2 mm length: 300 mm (XS); 350 mm (SM-XL)
SADDLE: Velomann Mitora 149 H2, steel rails, length 250 mm, width 149 mm

Reference YUB88IMDAY

Data sheet

Code: BNCH25-LIST0426-STK270726
