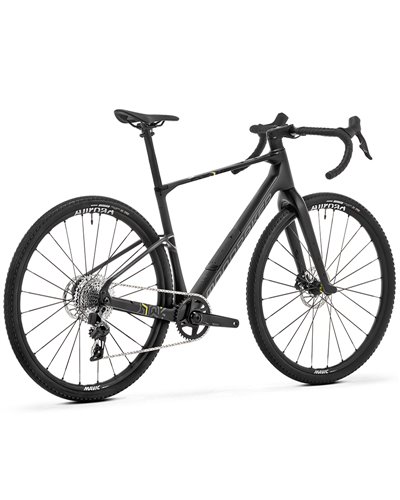

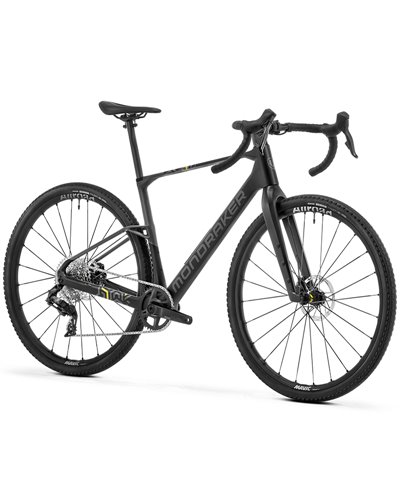

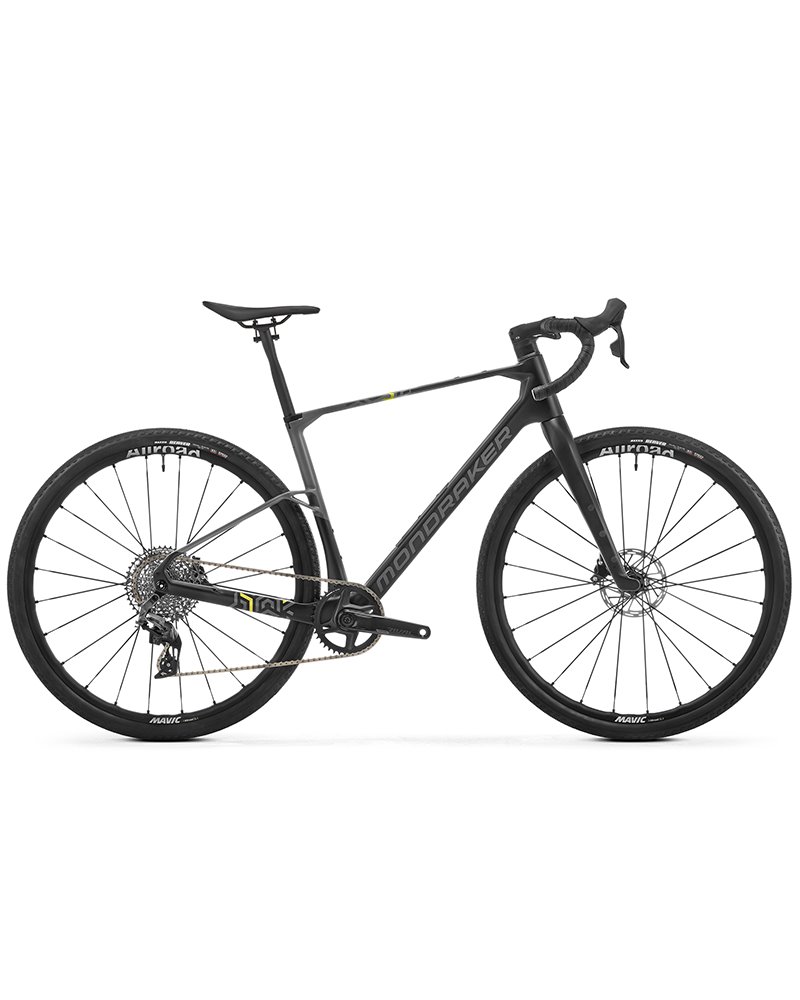

Mondraker Arid Carbon R 700 Sram Rival XPLR Etap AXS 12sp, Black MY25
Mondraker Arid Carbon R 700 Sram Rival XPLR Etap AXS 12sp, Black MY25
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

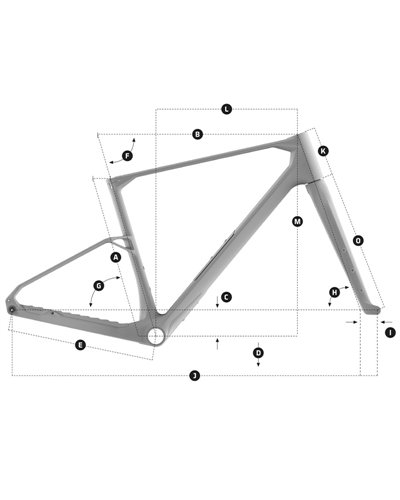

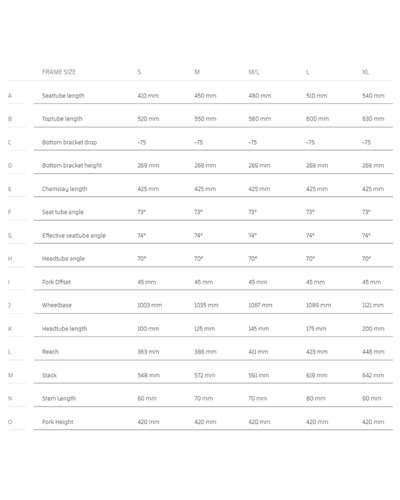

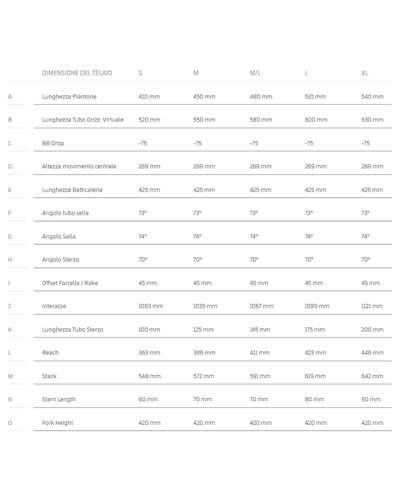

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Sizes: S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar: OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
Grips: OnOff HEX Bartape
Seatpost: Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle: FIZIK Terra Argo X5 140mm
Front brake: Sram Rival Etap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Rear brake: Sram Rival Etap AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake lever: Sram Rival, contact point adjustment, tooled reach adjust, plastic levers
Rims: Mavic Allroad SL, UST, 25mm internal width, hookless, infinity hubs, 24 spokes
Spokes: Mavic Steel double butted flat spokes
Front hub: Mavic, 12x100mm, IS 6 bolts
Rear hub: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub
Front tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset: Sram Rival 1 DUB GLS Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
Rings: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket: Sram DUB T47 BSA, sealed bearings, 85,5mm
Chain: Sram Rival, 12s, Powerlock
Rear derrailleur: Sram Rival XPLR Etap AXS, 12s
Shift levers: Sram Rival Etap AXS 12s,
Casette: Sram XG-1251 10-44T, 12s
Derailleur hanger: Sram UDH
Others: Carry-On Bags System
Weight: 8,9 kg
Data sheet
