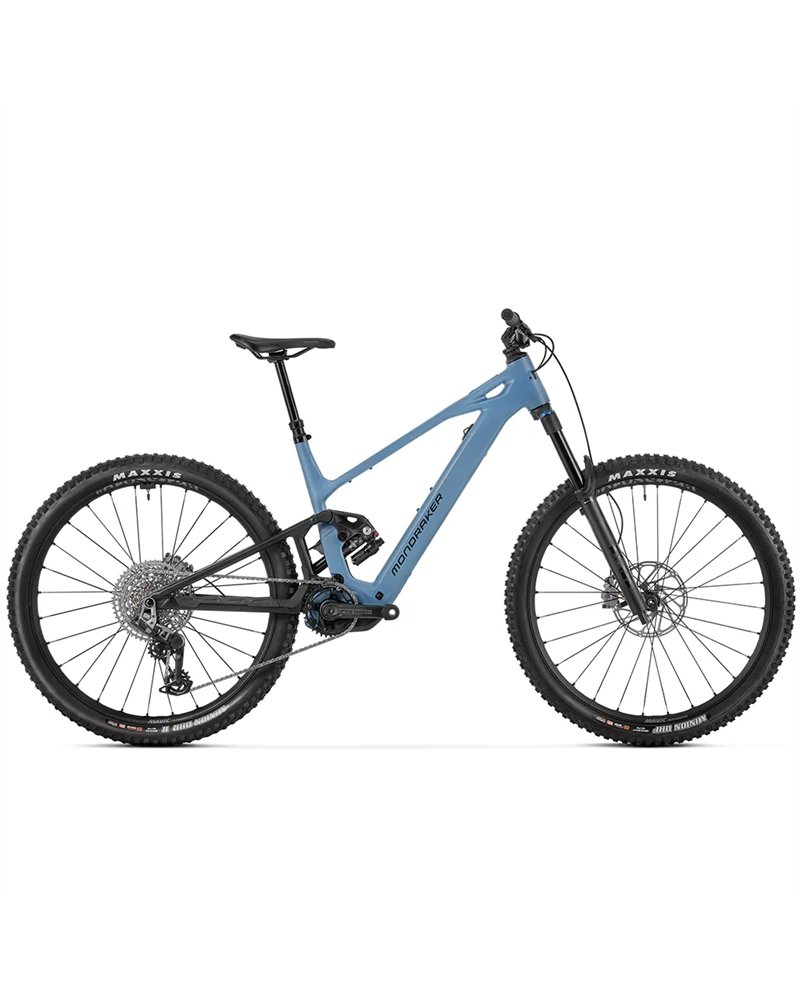

Mondraker Sly RR 29 Sram GX Eagle AXS 12sp Bosch GEN4 SX Smart - 400Wh e-Bike, Denim Blue MY26

Mondraker Sly RR 29 Sram GX Eagle AXS 12sp Bosch GEN4 SX Smart - 400Wh e-Bike, Denim Blue MY26

Reference 010.26173

€6,999.00

€6,299.10 Save 10%

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: M/L (Contact Us)

S (Contact Us)
M (Contact Us)
M/L (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

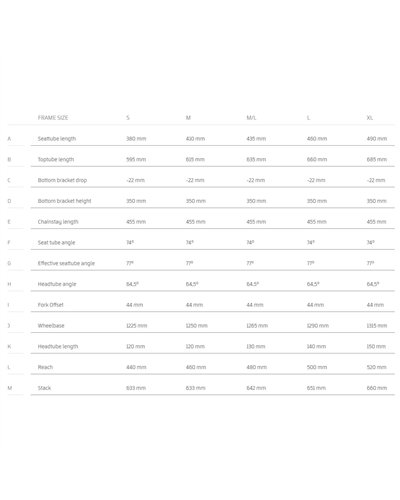

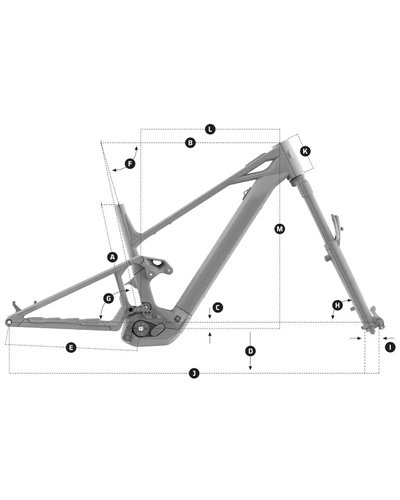

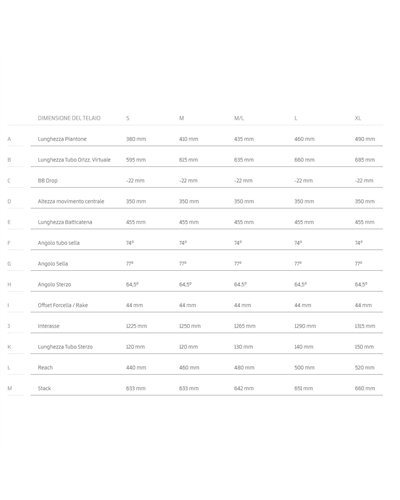

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: 6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
Fork: Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle: Ergon SMC10 Gel
Front brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Rims: Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes: Mavic 28 straight-pull double butted spokes
Front hub: Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub: Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C Maxx Terra compound, EXO+ protection, 60TPI, folding bead
Crankset: E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain: Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur: Sram GX Eagle AXS T-Type,12s
Shift levers: Sram Eagle AXS Pod MMX, 12s
Casette: Sram XS-1275, 10-52T, T-Type, 12s
Weight: 20,9 kg
Display: Kiox 400C / Bosch Mini Remote
Motor: Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery: Bosch Compact Powertube 400Wh
