-10%

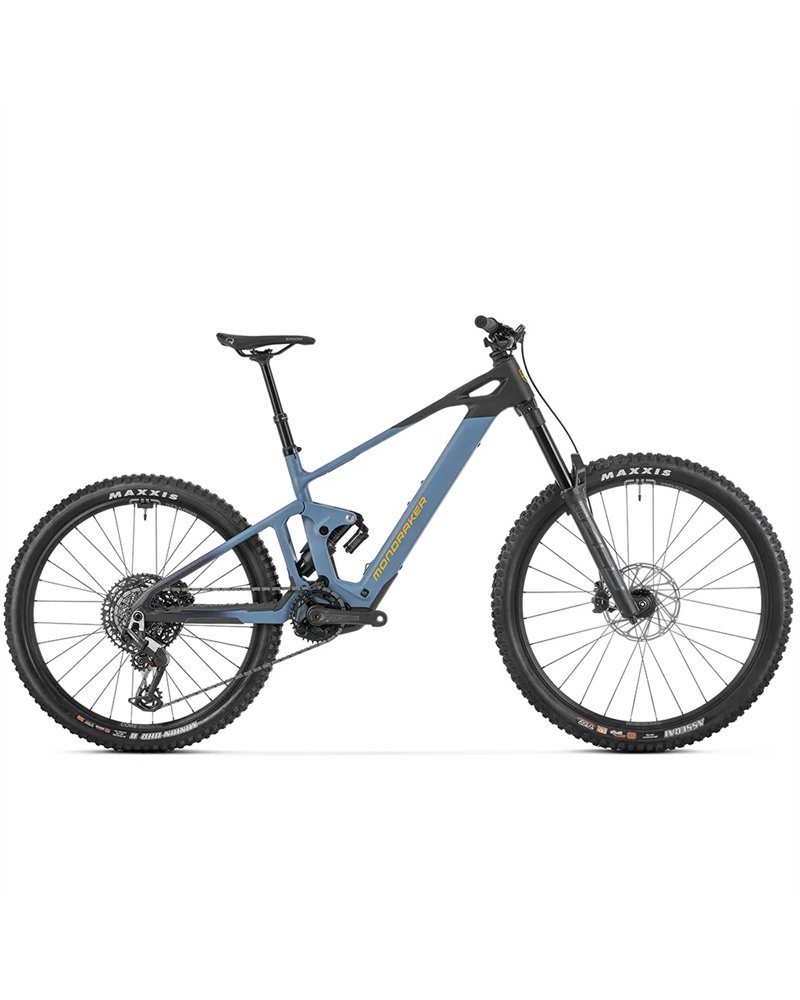

Mondraker Dune R Mullet 27.5/29 Sram 90 Eagle 12sp Bosch GEN4 SX Smart - 400Wh e-Bike, Denim Blue MY26

Mondraker Dune R Mullet 27.5/29 Sram 90 Eagle 12sp Bosch GEN4 SX Smart - 400Wh e-Bike, Denim Blue MY26

Reference 010.26192

€7,999.00

€7,199.10 Save 10%

VAT included

Pagamento a rate con

Calcola la rata

Bike frame sizes: S (Contact Us)

S (Contact Us)
M (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

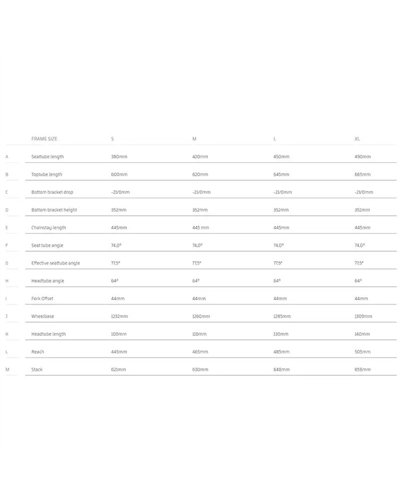

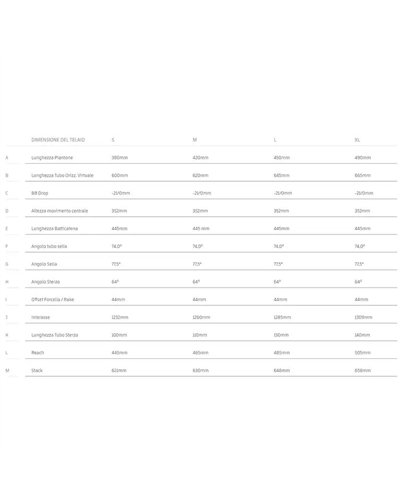

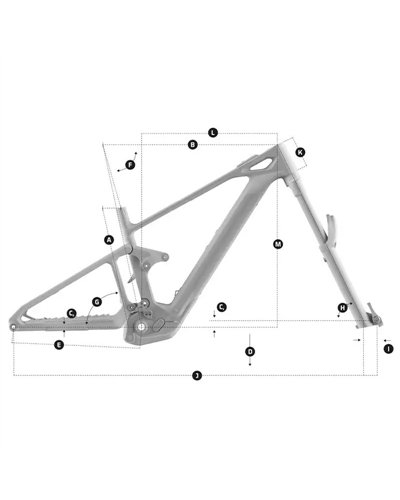

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock: RockShox Vivid Base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: C34 compression, R23 rebound, 2 tokens
Fork: RockShox ZEB Select Charger RC 29, 170mm, Debon Air+, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, L size: 469x170mm,XL size: 521x190mm
Saddle: Ergon Enduro SPS20
Front brake: Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust
Rims: e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes: e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear tire: Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset: E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain: Sram 70 T-Type, 12s Flattop, PowerLock
Rear derrailleur: Sram 90 Eagle, T-Type, 12s
Shift levers: Sram Trigger 70, 12s, T-Type Actuation
Casette: Sram XS-1270, 10-52T, 12s
Weight: 20,3 kg
Display: Kiox 400C / Bosch Mini Remote
Motor: Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery: Bosch Compact Powertube 400Wh

Reference 010.26192

Data sheet

Diameter: 27.5"
29"
Gender: Men
Women
Material: Carbon
Code: MDK25-AGG100925
Shifting: Mechanical
Brakes: Hydraulic disc
Groupset: SRAM Eagle 90
Motor: Bosch Performance Line SX
Suspension: Full suspension
Type: E-Bike
Battery capacity: 400 Wh

No customer reviews for the moment.
