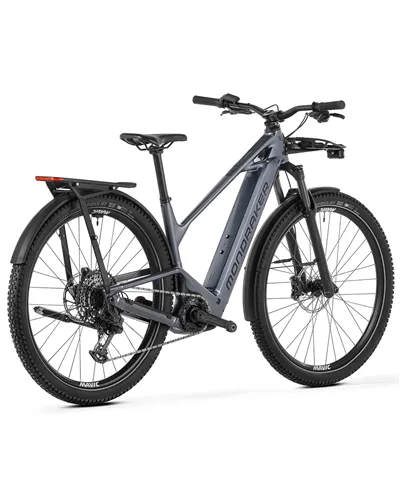

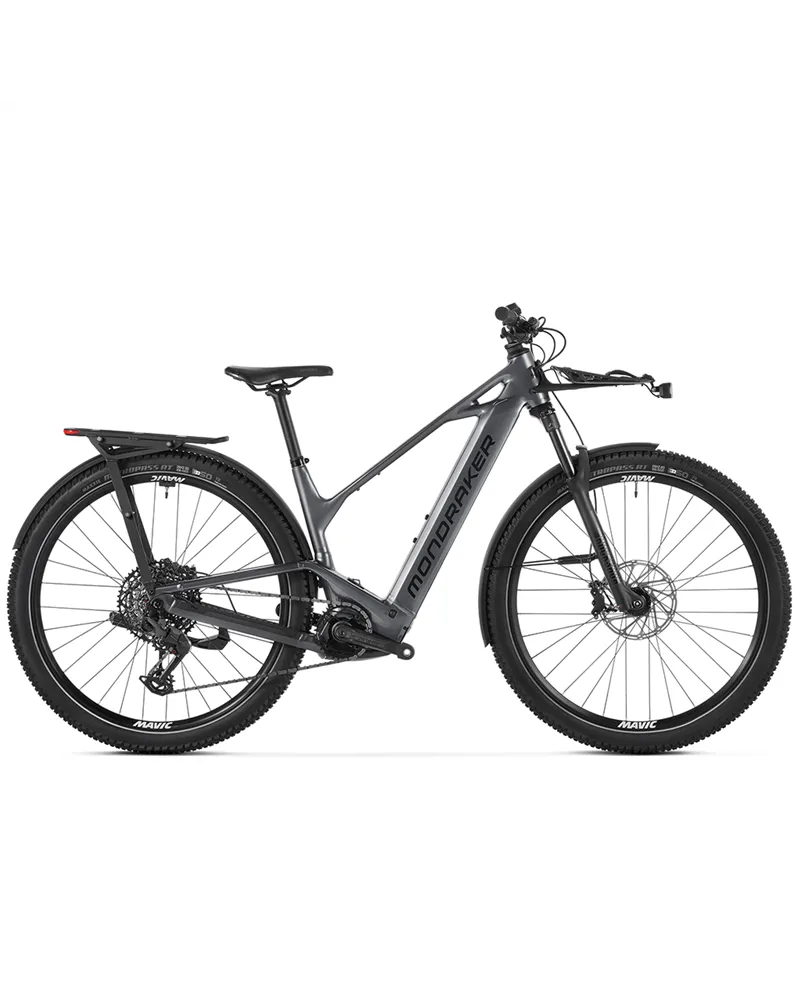

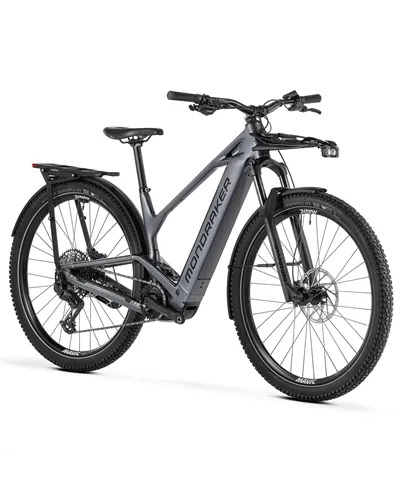

Mondraker Prime X 29 Sram 70 Eagle 12sp Bosch CX Smart - 800Wh e-Bike, Graphite Grey MY26
Mondraker Prime X 29 Sram 70 Eagle 12sp Bosch CX Smart - 800Wh e-Bike, Graphite Grey MY26
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

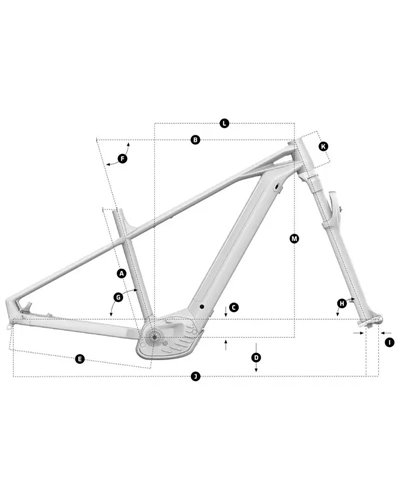

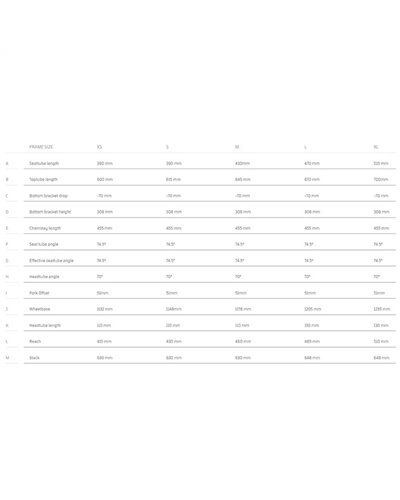

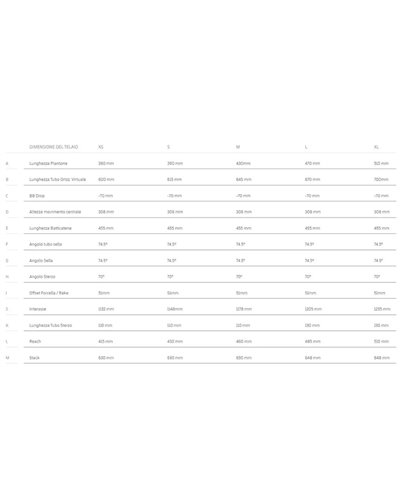

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, UDH,
Sizes: S: 370mm / M: 400mm / ML: 430mm / L: 470mm / XL: 510mm
Fork: RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Beehive, 1lock-on, 135mm
Seatpost: Onoff S3 0-R, diameter 31.6mm, length 400mm
Saddle: Ergon SF10 Gel
Front brake: Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram DB6, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram DB6, tool reach adjust, lever pivot bushings
Rims: Mavic E-Access XR27, 29 Boost 27mm internal width, tubeless ready, 28 spokes
Spokes: Mavic 28 Reinforced spokes lacing
Front hub: Mavic, Boost 15x110mm, IS 6 bolts
Rear hub: Mavic, Boost 12x148mm, IS 6 bolts HG Reinforced freehub
Front tire: Maxxis Metropass AT 29x2.6, single compound, 60TPI, MaxxProtect /EXO Reflective Stripe, Tubeless ready, wire bead,
Rear tire: Maxxis Metropass AT 29x2.6, single compound, 60TPI, MaxxProtect /EXO Reflective Stripe, Tubeless ready, wire bead,
Crankset: E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings: Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain: Sram 70 T-Type, 12s Flattop, PowerLock
Rear derrailleur: Sram 70 Eagle, T-Type, 12s
Shift levers: Sram Trigger 70, 12s, T-Type Actuation
Casette: Sram XS-1270, 10-52T, 12s
Others: Alloy Front carrier with front light mount, Max load: 10kg, Front light: 150LUX output DC 6-12V, waterproof Alloy cage. Spare Front ligth plastic mount, Alloy Rear carrier MIK profile and MIK stud ready, Max load: 25kg. KS40 Kickstand, MDK Urban pedals
Weight: 26,9 kg
Display: Purion 200
Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery: Bosch Powertube 800Wh
Data sheet
No customer reviews for the moment.
Trail and assisted mountain biking
Designed for those looking for an e-MTB with Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y) motor, 800 Wh battery and a reinforced 6061 alloy frame. The Front suspension setup and RockShox Recon Silver RL 29 fork with 120 mm travel make it suitable for trail rides and mixed terrain routes.
Cyclist seeking control on climbs and descents
Suitable for riders who want a Sram 70 Eagle, T-Type, 12s drivetrain and Sram DB6 brakes with 4-piston caliper. The configuration prioritises power delivery management and braking control on technical terrain.
Long rides with assistance and high range
Suitable for those who want an e-MTB with Bosch Powertube 800 Wh battery and a weight of 26.9 kg. The battery capacity supports extended rides without giving up a robust aluminium platform.
Ideal
Technical trails with powerful braking
The pair of Sram DB6 brakes with 4-piston caliper and Centerline discs, 200 mm front and 180 mm rear, provides a system suited to descents and demanding sections.
Freni a disco · 4 pistoncini · Disco 200 mm
Very suitable
Climbs and accelerations on trails
The Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y) motor and Sram 70 Eagle, T-Type, 12s drivetrain help maintain cadence and traction on mountain routes.
Motore Bosch CX · 12 velocità · Trail
Very suitable
Long outings on mixed routes
The Bosch Powertube 800 Wh battery and Mavic E-Access XR27, 29 Boost wheels with 27 mm internal width support extended rides on variable surfaces.
800 Wh · Ruote 29 · Percorsi misti
Suitable
Configuration for riders using travel accessories
The front rack with front light mount and the rear rack with MIK profile broaden everyday use and light-load commuting.
Supporto luce · MIK · Carico
Experienced e-MTB rider
Rider prioritising range and control
It is fitted with a Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y). This motor is designed for assisted mountain bike use.
The battery is a Bosch Powertube with 800 Wh. This capacity is suitable for long e-MTB rides.
The drivetrain is Sram 70 Eagle, T-Type, 12s. The cassette is Sram XS-1270, 10-52T, 12s.
It is fitted with Sram DB6 brakes with 4-piston caliper. Braking is completed by 200 mm Centerline discs at the front and 180 mm at the rear.
It is fitted with Mavic E-Access XR27, 29 Boost wheels with 27 mm internal width. These are tubeless ready rims.
The frame sizes are S: 370 mm, M: 400 mm, ML: 430 mm, L: 470 mm and XL: 510 mm.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
