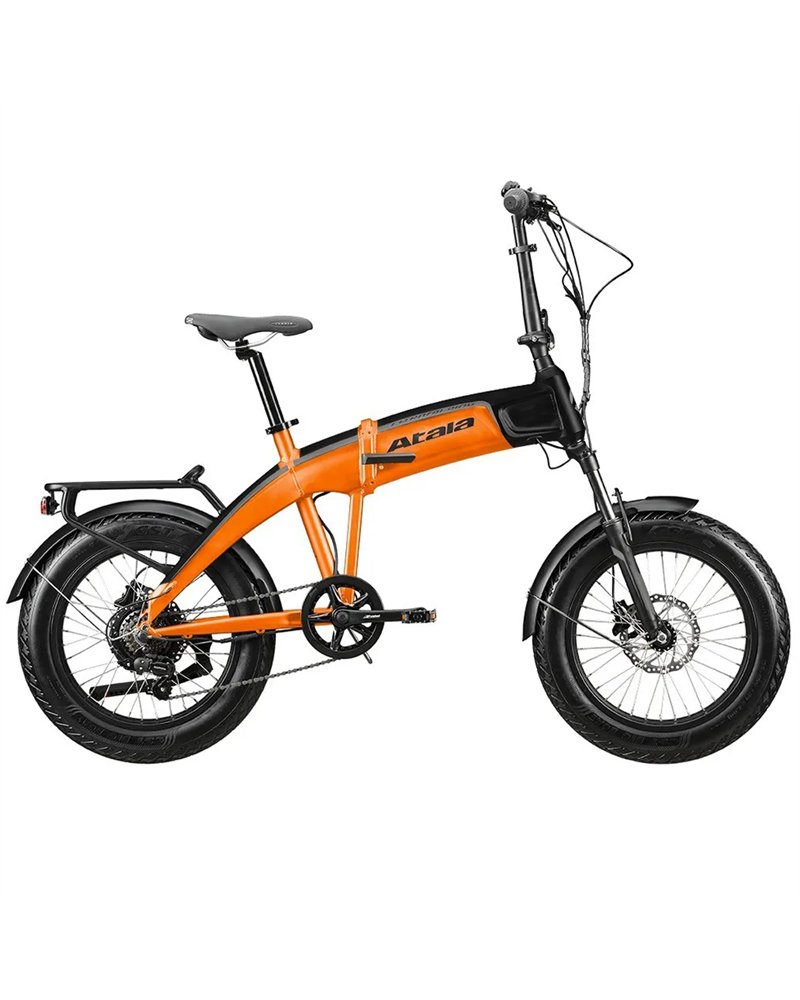

Atala e-Bike Extrafolding 7.2 Shimano Tourney 7sp EcoLogic 630Wh, Black/Orange Matt

Atala e-Bike Extrafolding 7.2 Shimano Tourney 7sp EcoLogic 630Wh, Black/Orange Matt

Name: Atala e-Bike Extrafolding 7.2 Shimano Tourney 7sp EcoLogic 630Wh, Black/Orange Matt
Brand: Atala
SKU: 0115301755
Price: 1588.65 EUR
Availability: InStock

Reference 0115301755

€1,869.00

€1,588.65 Save 15%

VAT included

Pagamento a rate con

Calcola la rata

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Contact us for more information, technical details and availability.

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly. We advise you to refer to the technical sheet below. For any questions please contact us.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

ELECTRIC KIT: System EcoLogic/EcoLogic FAT/Speed

MECHANICAL SPECIFICATIONS
Frame: Alu 20” FAT, foldable, integrated battery, integrated HT, disc brake, internal cables
Fork: HL CH-879 20" Fat, alu with alu crown, 32mm, with hydraulic lockout, 80mm
Headset: FSA integrated 1”1/8
Crankset: Alu 170mm, 42T, cartridge
Gear: Shimano Tourney RD-FT35D
Controls: Hydraulic disk, Rotor 180 mm, with brake lever switch
Brakes: Shimano Tourney SL-RS35 RevoShift, 7s
Freewheel: Shimano Tourney 7s 14-28
Pedals: Resin foldable
Hubs: Alu 36h, axle 135 F/175 R, motor on rear
Rims: 20" alu, double wall, 36h
Handlebar stem: Alu, foldable, Adjustable
Handlebar: Aluminum, 20mm rise
Seatpost: Aluminum with clamp, 33.9mm
Saddle: Selle Royal Wave
Tires: 20"x4"
Mudguards: Painted steel
Chain guard: Chain guard
Luggage rack: Custom aluminum rear carrier, 25kg
External lights: Axa front (30Lux) and rear LED, controlled by display
Size: 43
Notes: Ursus adjustable kickstand, bell, wheel reflectors

Electrical specifications
Sensor type: Speed sensor with 12 pulses
Battery: 630
Range: Up to 120km
Charger type: 2A Europlug
Charging time: 100%: 10h14m / 80%: 7h47m
Max assisted speed: 25km/h
Display: LCD
Power: 5 levels, Speed/Torque adjust
Other functions: Soft start: 0 - 6km/h, with no pedalingExternal light controlSpeed information
