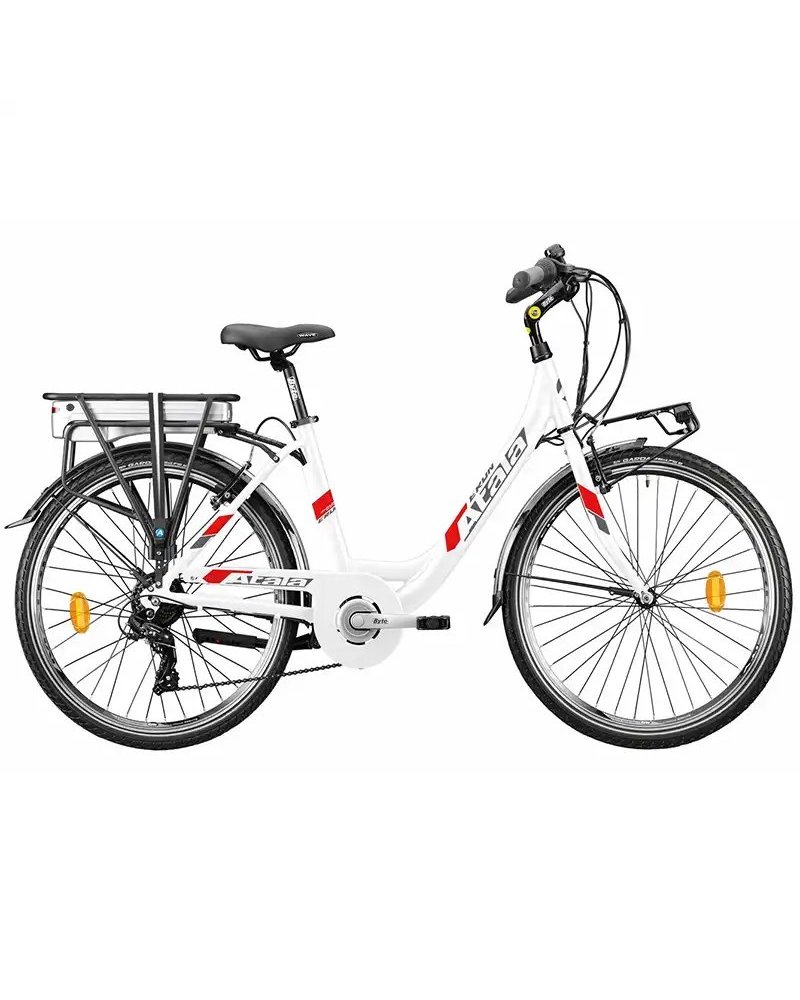

Atala e-Bike E-Run 6.1 26" Lady Shimano Tourney 7sp EcoLogic 360Wh, White/Red

Contact us for more information, technical details and availability.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.ELECTRIC KIT: EcoLogic 35Nm/Speed ??Smart

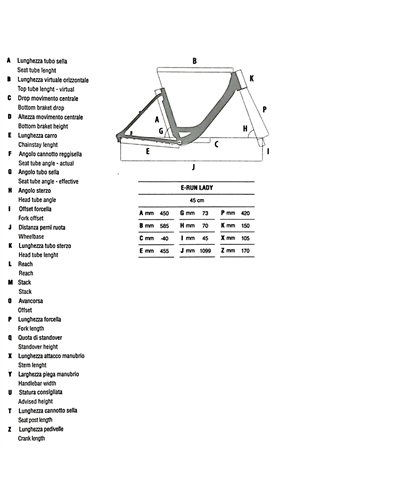

MECHANICAL SPECIFICATIONS
Frame: Aluminum. 26", easy access, internal cables
Fork: Hi-Ten Tig 26”
Headset: Steel 1”1/8, threaded, with cup
Crankset: Byte steel 42T cartridge, with cap
Gearbox: Shimano Tourney RD-TY300 / L-TWOO RD-V4007-M-2, 7s
Shifters: Shimano Tourney SL-RS35 RevoShift, 7s / L-TWOO SL-V4007-7W-2, 7s
Brakes: Promax alu, V-Brake, with brake lever switch
Cassette: Shimano Tourney 7v 14-28 /
Freehub: /L-TWOO FW-207 7s 13-28
Pedals: City of Resina
Hubs: Alu 36h, Shimano front, engine rear
Rims: Beretta 26" alu, double wall w/eyelets, 36h
Stem: Byte alu, adjustable
Handlebar: Byte Steel City
Seatpost: Byte alu with clamp, 27.2mm
Saddle: Selle Royal Wave
Tyres: Byte Garda 26”x1.75”
Fenders: Single quick stay
Chain guard: Painted steel, type L
Luggage rack: Battery rear rack, 25kg / front rack
External lights: front Axa LED (15 lux) and battery rear, controlled by display
Size: 45
Notes: adjustable Ursus stand, bell, wheel reflectors, carrying band

ELECTRICAL SPECIFICATIONS
Maximum torque: 35Nm
Sensor Type: 12-Pulse Speed ??Sensor
Battery: 360
Charger type: 2A Europlug
Charging time: 100%: 6h4m / 80%: 4h27m
Maximum assisted speed: 25km/h
Screen: Atala A15 LED UART
Power: 5 levels, speed/torque adjustment
Other functions: Soft start: 0 - 6km/h, without pedaling - External light control
