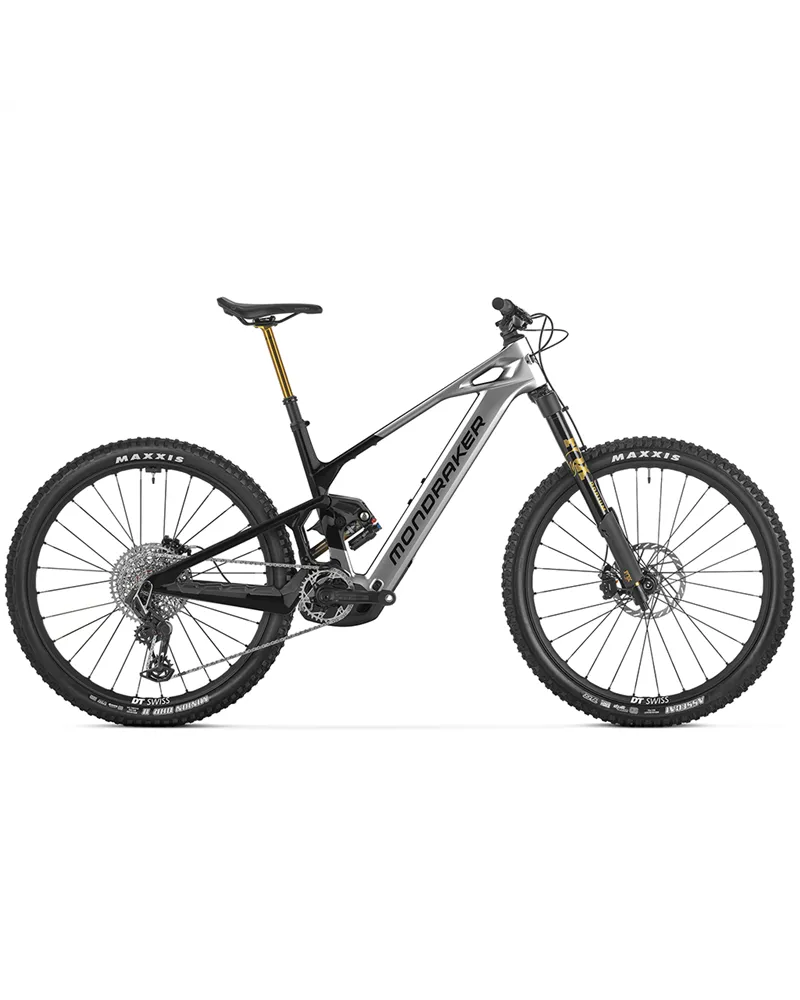

Mondraker Crafty Carbon RR S 29 Sram X0 Eagle AXS 12v Bosch CX Smart - 800Wh e-Bike, Silverflash MY27

Le immagini di ruote e gruppi hanno carattere puramente illustrativo e possono variare rispetto alla configurazione effettiva della bici. La composizione esatta è sempre indicata nella scheda tecnica del prodotto. Per qualsiasi chiarimento siamo a disposizione.

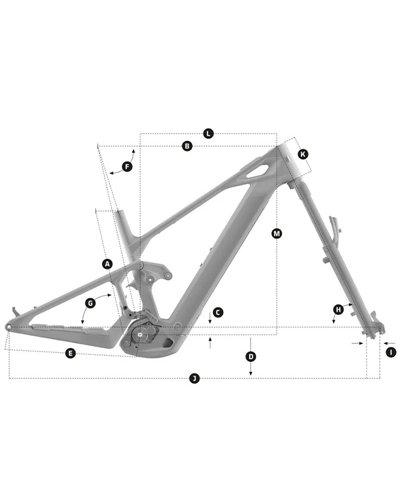

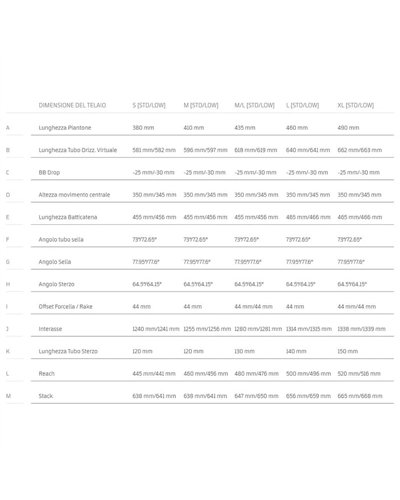

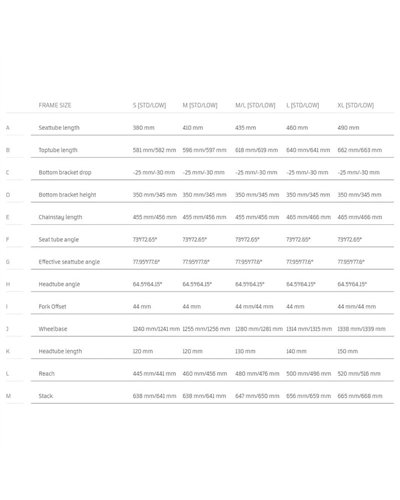

Per le geometrie del telaio consultare la scheda allegata.

Prima di procedere con l'acquisto contattaci per conoscere la disponibilita' della tua taglia.

Le bici verranno consegnate già assemblate. Tuttavia potrebbe essere necessario l'intervento di un meccanico ciclista per la configurazione ottimale.

SPECIFICHE TECNICHE
Telaio: Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Taglie: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Ammortizzatore: Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Regolazione ammortizzatore: CS50 compression, RL70 rebound, 1,1 Bleed, Rezi B60, LML, MCU, 0.2 Volume Spacer
Forcella: Fox Podium 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Sterzo: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
Attacco manubrio: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Manubrio: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Manopole: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Reggisella: Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm
Sella: Ergon SM-10
Freno anteriore: Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Freno posteriore: Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Leve Freno: Sram Maven Silver, SwingLink and lever pivot bearing, tools-free reach adjust
Cerchi: DT Swiss Hybrid HX 1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 spokes
Raggi: DT Swiss Straightpull spokes, DT Hybrid III, black
Asse mozzo anteriore: DT Swiss 350, Boost 20x110mm, IS 6 bolts
Asse mozzo posteriore: DT Swiss 350 Classic with 72T Ratchet DEG System, Boost 12x148mm, IS 6 bolts, XD freehub
Pneumatico anteriore: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Pneumatico posteriore: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
Guarnitura: E.13 Helix Core E*Spec Plus, All sizes: 155mm
Corona: Sram XX Eagle 34T T-Type, direct mount, steel, CL55
Catena: Sram GX Eagle T-Type, 12s Flattop, Powerlock
Cambio - Posteriore: Sram X0 Eagle AXS, T-Type, 12s
Comandi cambio: Sram Eagle AXS Pod MMX, 12s
Cassetta Pignoni: Sram XS-1275, 10-52T, T-Type, 12s
Display: Kiox 400C / Bosch Mini Remote
Motore: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Batteria: Bosch Powertube 800Wh
